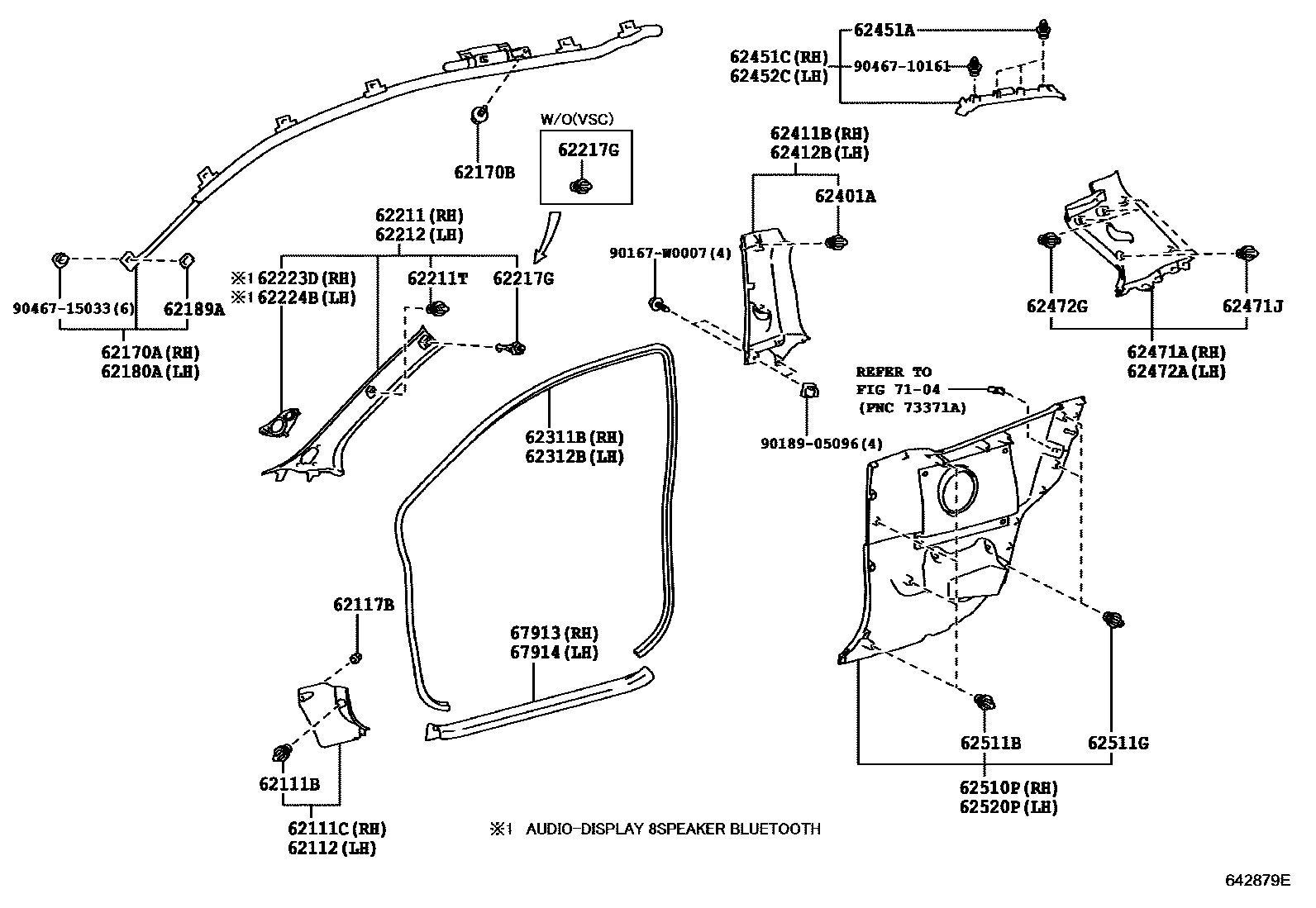

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
BLACK,TRIM1#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
sub62170-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
sub62170-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
sub62170-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
TURKEY SPEC&VSC-WITHOUT
ISRAEL SPEC&VSC-WITHOUT
VSC-WITHOUT
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
62170BBOLT, W/WASHER
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
TURKEY SPEC&VSC-WITHOUT
ISRAEL SPEC&VSC-WITHOUT
VSC-WITHOUT
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
sub62180-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
sub62180-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
sub62180-0D031
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
TURKEY SPEC&VSC-WITHOUT
ISRAEL SPEC&VSC-WITHOUT
VSC-WITHOUT
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&VSC-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT
TURKEY SPEC&VSC-WITHOUT
ISRAEL SPEC&VSC-WITHOUT
VSC-WITHOUT
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62217GCLIP, FRONT PILLAR GARNISH
LH
RH
LH
RH
62223DPLATE, FRONT PILLAR GARNISH, UPPER RH
62224BPLATE, FRONT PILLAR GARNISH, UPPER LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62451ACLIP, SIDE GARNISH
LH
RH
62451CGARNISH, ROOF SIDE RAIL, REAR RH
LT.GRAY,TRIM1#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
LT.GRAY,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#
sub62471-0D600
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
HV SIMPLE PACKAGE,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#
sub62472-0D650
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
HV SIMPLE PACKAGE,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
62472GCLIP (FOR ROOF SIDE GARNISH)
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
BLACK,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
BLACK,TRIM1#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#
BLACK,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#
BLACK,TRIM1#
7104
90167W0007
main90167-W0007
9018905096
main90189-05096
9046710161
main90467-10161
9046715033
main90467-15033
37 parts on this diagram · 3 diagrams in section
