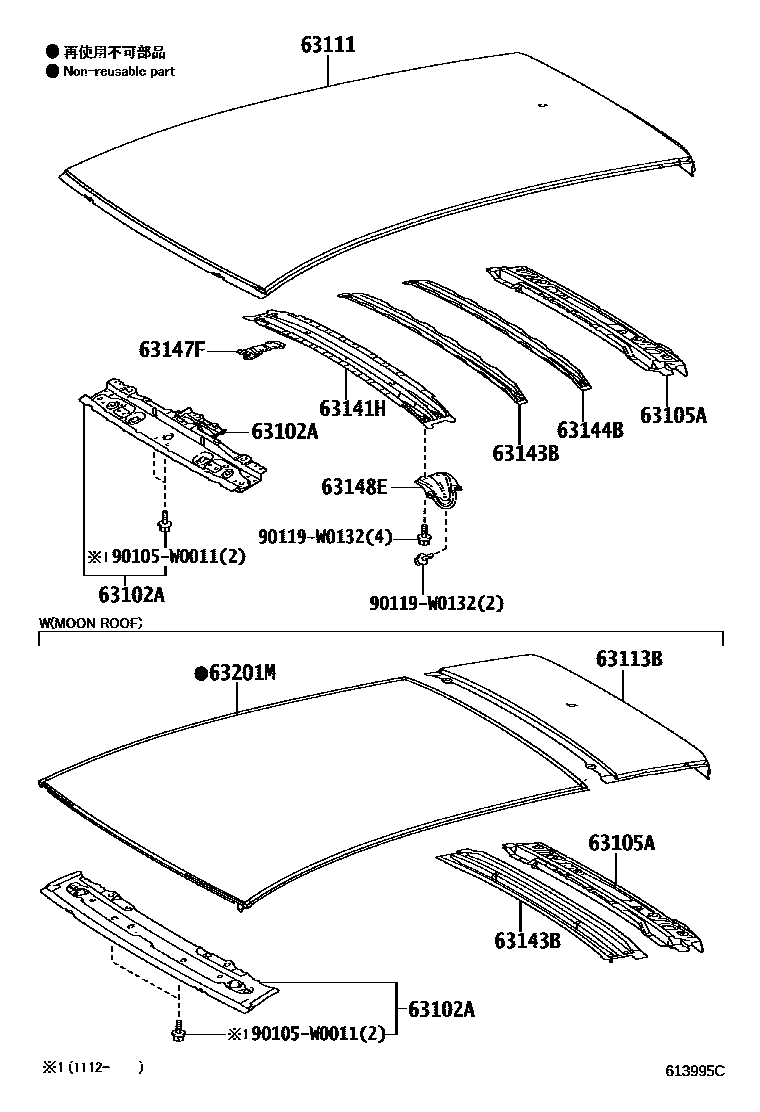

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D020iKSP130,NLP130,NSP130201107-201111

main63102-0D021iKSP130,NHP130,NLP130,NSP130201112

main63102-0D070iNLP130,NSP130..ACTIV,LOUNG,STYLE201107-201111

MOON ROOF-WITH(PANORAMIC ROOF)

main63102-0D071iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201112

MOON ROOF-WITH(PANORAMIC ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0D060iKSP130,NHP130,NLP130,NSP130201107

63111PANEL, ROOF

main63111-0D150iKSP130,NHP130,NLP130,NSP130201107

63113BPANEL, ROOF, REAR

main63113-0D010iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201107

MOON ROOF-WITH(PANORAMIC ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D100iKSP130,NHP130,NLP130,NSP130201107

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0D050iKSP130,NHP130,NLP130,NSP130201107

main63143-0D090iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201107

MOON ROOF-WITH(PANORAMIC ROOF)

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0D050iKSP130,NHP130,NLP130,NSP130201107

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0D050iKSP130,NHP130,NLP130,NSP130201107

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0D050iKSP130,NHP130,NLP130,NSP130201107

63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1

main63201-0D020iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201107

MOON ROOF-WITH(PANORAMIC ROOF)

90105W0011

main90105-W0011

90119W0132

main90119-W0132

12 parts on this diagram · 1 diagram in section
