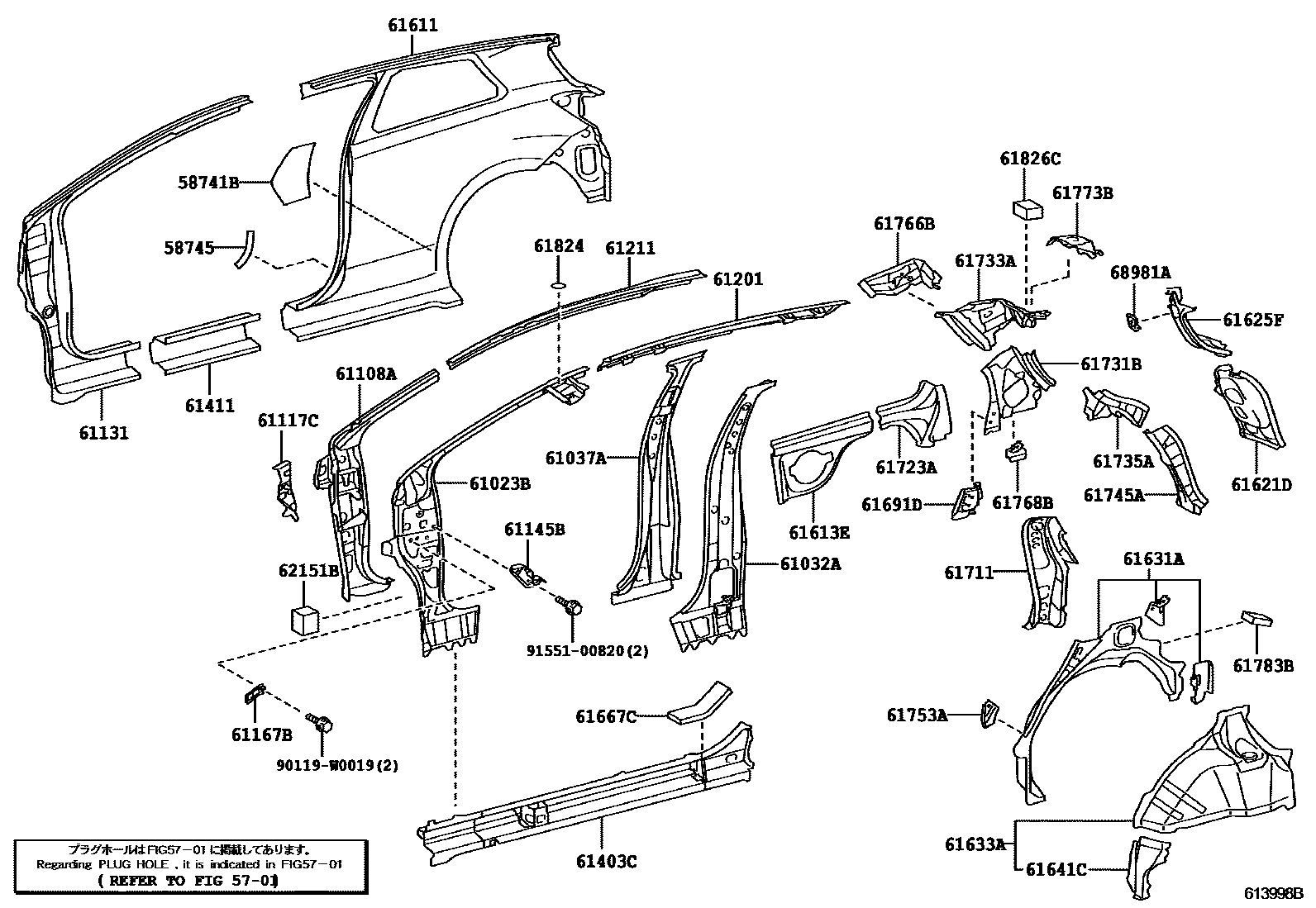

SIDE MEMBER
5701HOLE PLUG
58741BPROTECTOR, QUARTER PANEL, RH
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61032APILLAR SUB-ASSY, NO.1 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61117CGUSSET, SIDE PANEL TO COWL, RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61613EPANEL, QUARTER, INNER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61667CSEAL, QAURTER PANEL, NO.1
61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH
61711PANEL, ROOF SIDE, OUTER RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61753ARETAINER, QUARTER TRIM, LOWER
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
61824PLATE, NOISE CONTROL, NO.1
61826CPAD, NOISE SHUTTER, NO.3
62151BPAD, COWL SIDE SILENCER
68981ARETAINER, BACK DOOR STAY, RH
90119W0019
main90119-W0019
9155100820
main91551-00820
41 parts on this diagram · 4 diagrams in section
