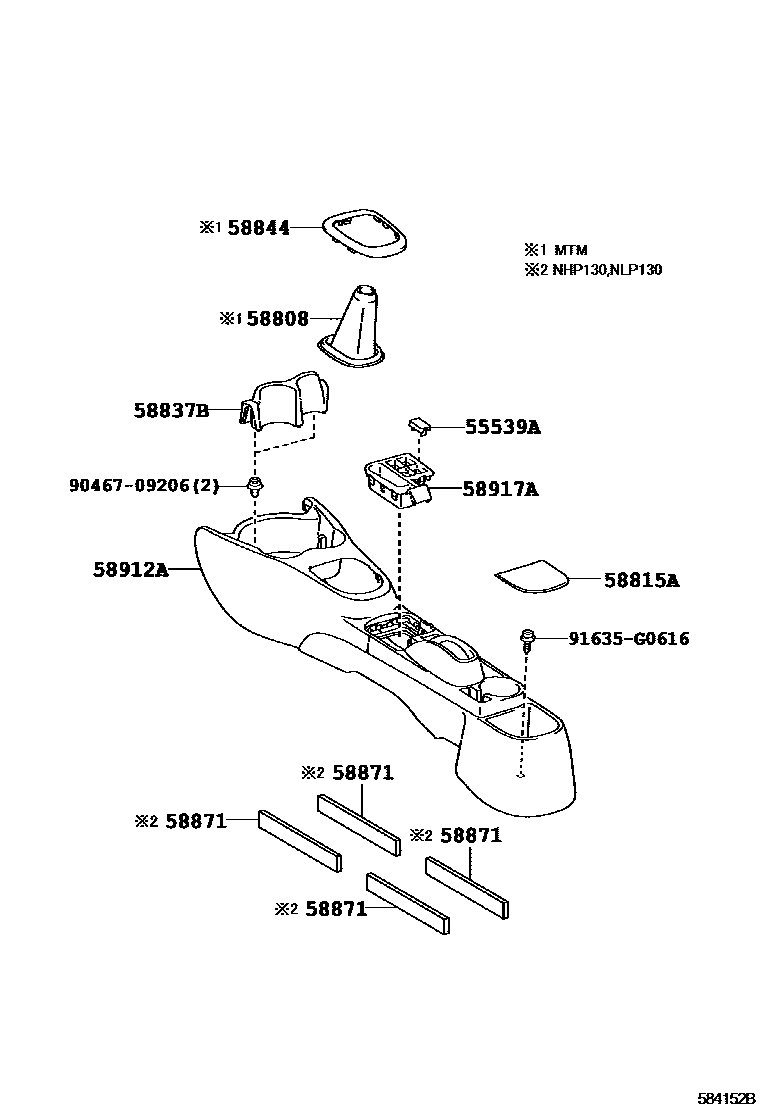

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
WITHOUT(STOP & START SYSTEM)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
sub55539-52070
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
sub55539-52070
WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
sub55539-52070
WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT,BLACK,TRIM1#
sub55539-52070
VSC-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
sub55539-52070
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#
BLACK,TRIM1#
58815ACARPET, CONSOLE BOX
58837BBOX, CONSOLE CUP HOLDER
BLACK,TRIM1#
58844BEZEL, CONSOLE BOX
BLACK,TRIM1#
58871CUSHION, CONSOLE BOX
58912ABOX, REAR CONSOLE
BLACK,TRIM1#
58917ACOVER, CONSOLE BOX, REAR
BLACK,TRIM1#
9046709206
main90467-09206
91635G0616
main91635-G0616
10 parts on this diagram · 2 diagrams in section
