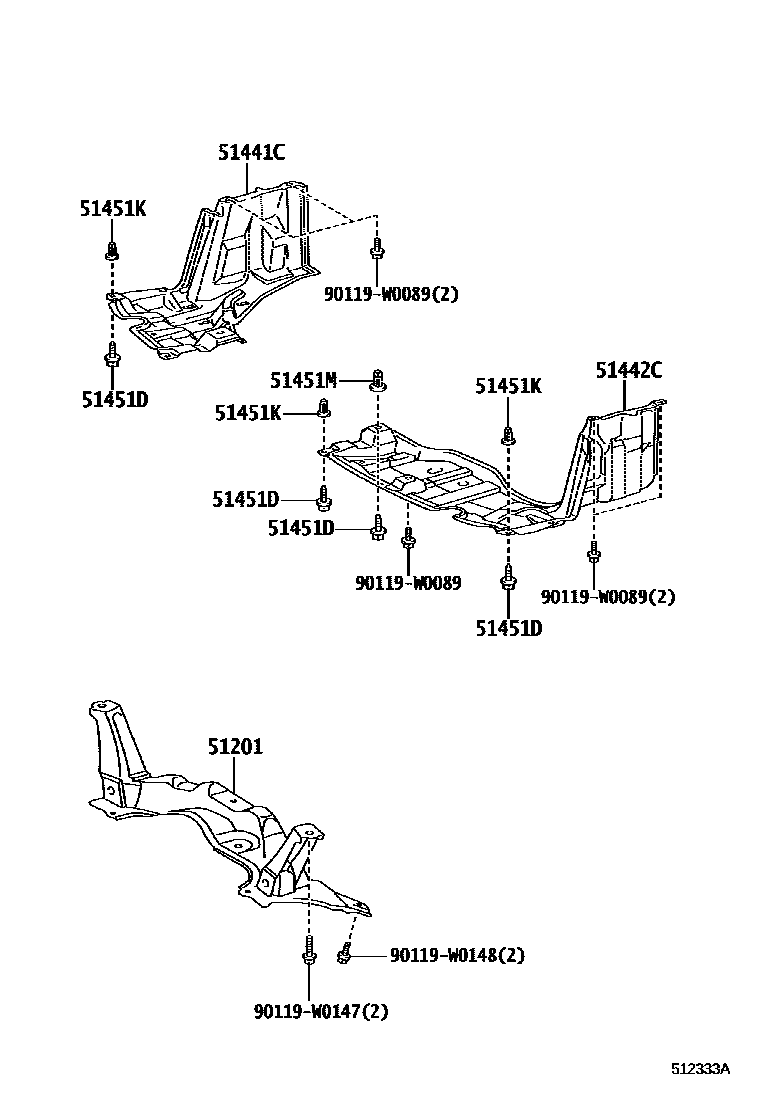

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D093iKSP130,NSP130201107-201203

main51201-0D094iKSP130,NHP130,NSP130201203-201206

main51201-0D095iKSP130,NHP130,NSP130201207-201307

main51201-0D096iKSP130,NHP130,NSP130201308

main51201-0D103iNLP130201107-201203

main51201-0D104iNLP130201203-201206

main51201-0D105iNLP130201207-201307

main51201-0D106iNLP130201308

51441CCOVER, ENGINE UNDER, RH

main51441-0D220iKSP130201107-201407

main51441-0D230iNHP130,NSP130201107-201407

main51441-0D240iNLP130201107

51442CCOVER, ENGINE UNDER, LH

main51442-0D140iKSP130,NHP130,NSP130201107-201407

main51442-0D150iNLP130201107

51451DSCREW, NO.1

main90159-W0007iKSP130,NHP130,NLP130,NSP130201107-201407

51451KGROMMET, SCREW, NO.1

main90189-06237iKSP130,NHP130,NLP130,NSP130201107-201407

51451MGROMMET, SCREW, NO.2

main90189-06076iKSP130,NHP130,NSP130201107-201407

90119W0089

main90119-W0089

90119W0147

main90119-W0147

90119W0148

main90119-W0148

9 parts on this diagram · 2 diagrams in section
