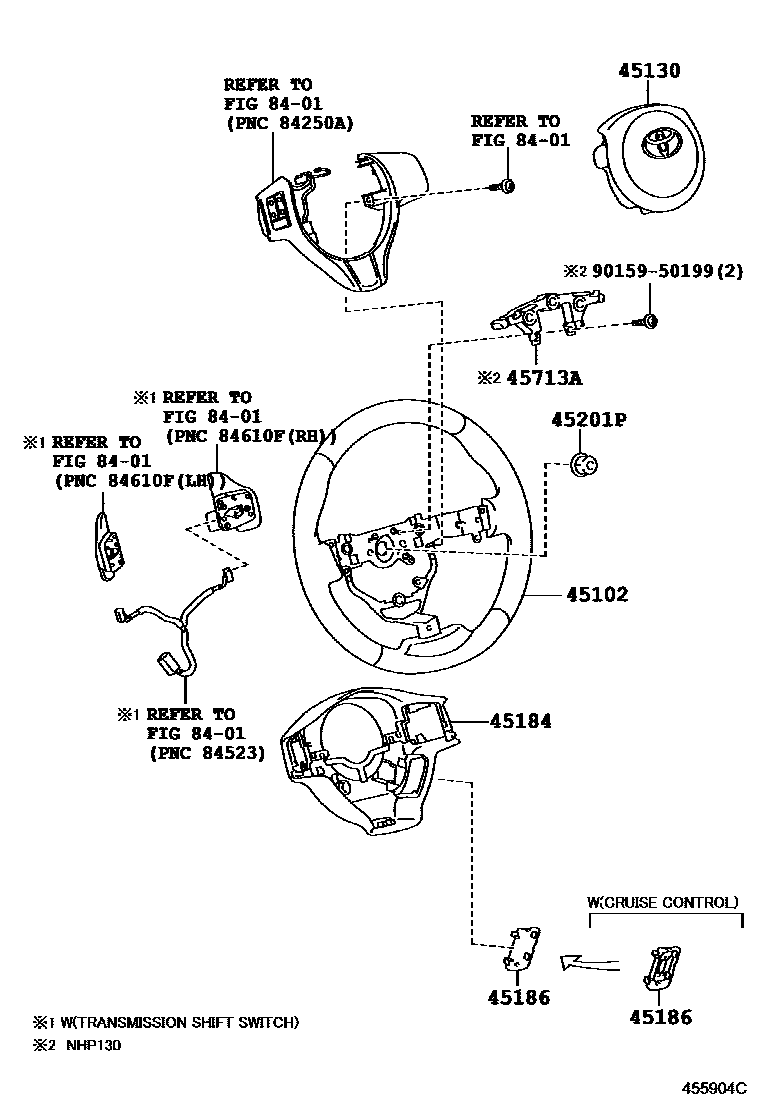

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
main45102-0D290-C0iKSP130,NLP130,NSP130..STD; KSP130,NSP130..LHD..MTM..ACTIV; KSP130,NSP130..RHD..MTM..ACTIV201107-201407
BLACK,TRIM1#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC,BLACK,TRIM1#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA),BLACK,TRIM1#; STEERING WHEEL-URETHANE,BLACK,TRIM1#
main45102-0D300-C1iNLP130..5D..6FS..(ACTIV,LOUNG);KSP130,NLP130,NSP130..3D..(ACTIV,LOUNG);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..LOUNG201107-201407
BLACK/LT.GRAY NO.831,TRIM1#
BLACK&BLUE,TRIM1#
BLACK/YELLOW,TRIM13,14,15
BLACK,TRIM1#
45130BUTTON ASSY, HORN
BLACK,TRIM1#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM1#
BLACK,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-0D020-C0supersedes 45186-0D030-C0iKSP130,NLP130;NHP130,NSP130..ACTIV,STD; NHP130,NSP130..LOUNG,STYLE201107-201407
BLACK,TRIM1#; CRUISE CONTROL-WITHOUT,BLACK,TRIM1#
BLACK,TRIM1#; CRUISE CONTROL-WITH,BLACK,TRIM1#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
HV SIMPLE PACKAGE
8401SWITCH & RELAY & COMPUTER
9015950199
main90159-50199
8 parts on this diagram · 1 diagram in section
