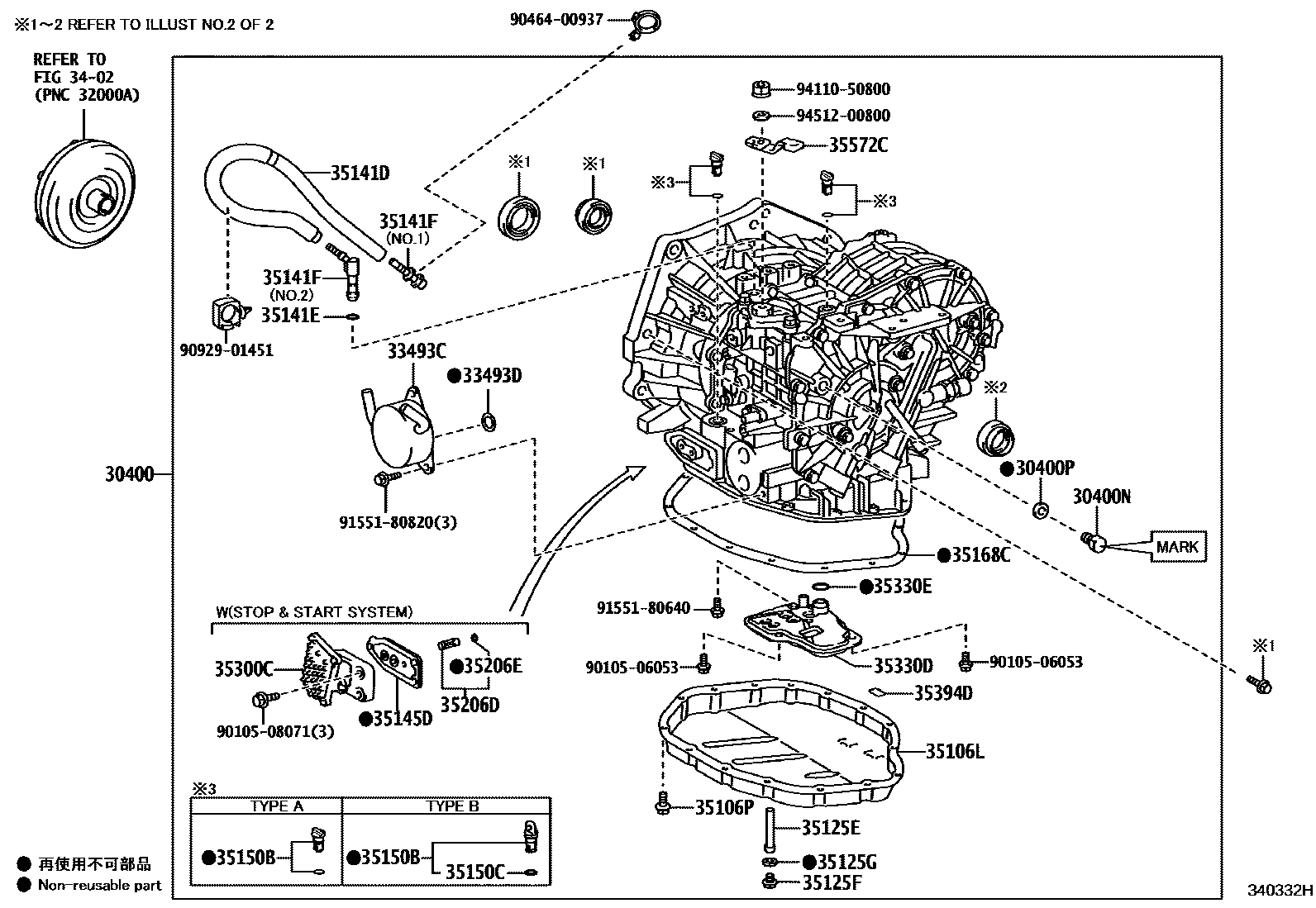

TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K411,REFER TO PNC 30400J
K411,REFER TO PNC 30400J
30400NPLUG, REFILL(CVT)
MARK = TC
MARK = FE
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
NO.1
NO.2
35145DGASKET, TRANSAXLE CASE
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35206DVALVE SUB-ASSY, CHECK, NO.1
35206ERING, O(FOR CHECK VALVE SUB-ASSY NO.1)
35300CPUMP ASSY, OIL W/MOTOR
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
9010506053
main90105-06053
9010508071
main90105-08071
9046400937
main90464-00937
9092901451
main90929-01451
9155180640
main91551-80640
9155180820
main91551-80820
9411050800
main94110-50800
9451200800
main94512-00800
33 parts on this diagram · 2 diagrams in section
