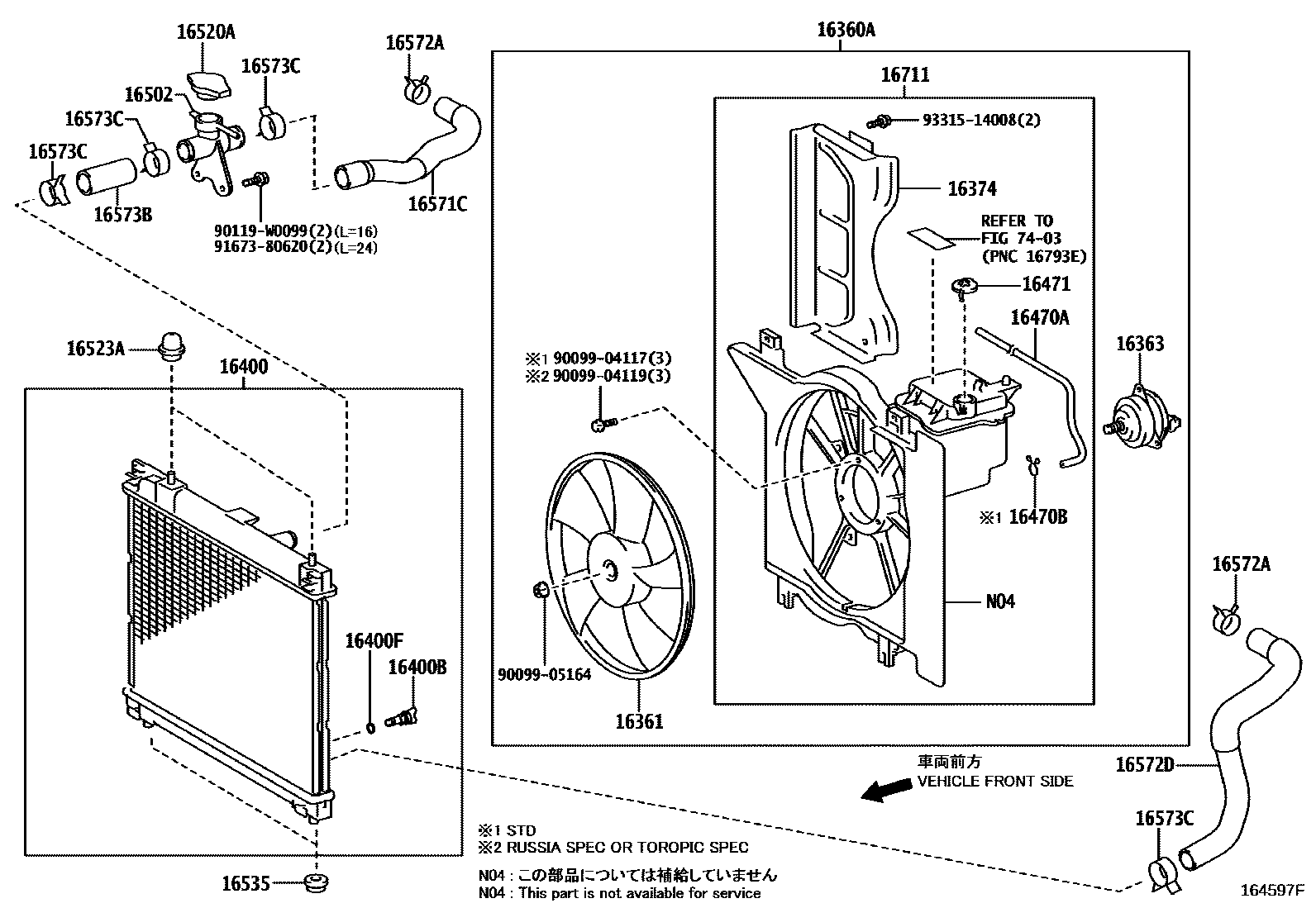

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16360AFAN ASSY, W/MOTOR

main16360-0N051i1NDTV..NLP130201107

main16360-0Q040i1KRFE..KSP130201107

main16360-0Y040i1NRFE..NSP130201107

16361FAN

main16361-0M100i1NZFXE..NHP130201204

main16361-0N030i1NDTV..NLP130201107

main16361-0Q030i1NRFE..NSP130201107

TROPIC SPEC

main16361-0Q040i1KRFE..KSP130201107

16363MOTOR, COOLING FAN

main16363-0D090i1KRFE..KSP130201107

TROPIC SPEC

main16363-0G050i1NDTV..NLP130201107

sub16363-0G051

main16363-0M060i1NZFXE..NHP130201204

main16363-23010i1KRFE..KSP130201107

16374INSULATOR, COOLING FAN MOTOR

main16366-0Q030i1NRFE..NSP130201107

16400RADIATOR ASSY

main16400-0N050i1NDTV..NLP130201107

main16400-0Q040i1KRFE..KSP130201107

main16400-0Y060i1NRFE..NSP130201107

main16400-21330i1NZFXE..NHP130201204

sub16400-21331

16400BPLUG, RADIATOR DRAIN COCK

main16417-0Q040i1KRFE..KSP130201107

main16417-21280i1NZFXE..NHP130201204

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1KRFE..KSP130201107

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16378-21180i1NZFXE..NHP130201204

main90445-12067i1KRFE..KSP130201107

L=330,TROPIC SPEC

main90445-12067i1KRFE..KSP130201107

L=330

main90445-12078i1NRFE..NSP130201107

*H,L=280

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1KRFE..KSP130201107

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i1NRFE..NSP130201107

16502FILLER SUB-ASSY, WATER

main16502-0Q010i1KRFE..KSP130201107

main16502-21090i1NZFXE..NHP130201204

16520ACAP SUB-ASSY, WATER FILLER

main16401-31520i1KRFE..KSP130201107

sub16401-36020

16523ACUSHION, RADIATOR SUPPORT

main16523-0Q020i1KRFE..KSP130201107

16535SUPPORT, RADIATOR, LOWER

main90480-W0005i1KRFE..KSP130201107

16571CHOSE, RADIATOR, NO.1

main16571-0M060i1NZFXE..NHP130201204

main16571-0N060i1NDTV..NLP130201107

main16571-0Q021i1KRFE..KSP130201107

main16571-47080i1NRFE..NSP130201107

sub16571-47130

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-W0015i1KRFE..KSP130201107

16572DHOSE, RADIATOR, NO.2

main16572-0M080i1NZFXE..NHP130201204

main16572-0Q040i1KRFE..KSP130201107

main16572-33080i1NDTV..NLP130201107

main16572-47070i1NRFE..NSP130201107

16573BHOSE, RADIATOR, NO.3

main16573-0M060i1NZFXE..NHP130201204

main16573-0Q010i1KRFE..KSP130201107

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-W0011i1KRFE..KSP130201107

16711SHROUD, FAN

main16711-0M100i1NZFXE..NHP130201204

main16711-0N031i1NDTV..NLP130201107

main16711-0Q040i1KRFE..KSP130201107

main16711-0Y040i1NRFE..NSP130201107

7403

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

90119W0099

main90119-W0099

9167380620

main91673-80620

9331514008

main93315-14008

27 parts on this diagram · 9 diagrams in section
