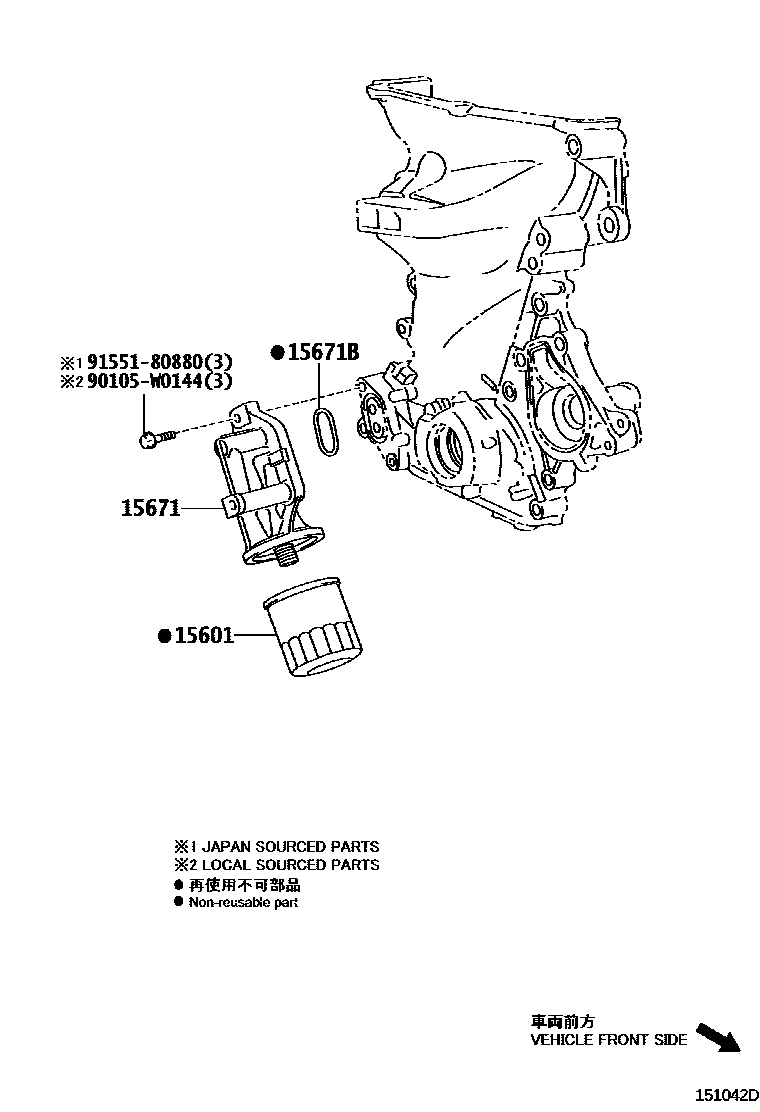

OIL FILTER

0001 1 0002 1 0003 1 0004 1

15601FILTER SUB-ASSY, OIL

main90915-10003i1NZFXE..NHP130201204

sub90915-10009

main90915-CA003i1KRFE..KSP130201107-201407

(L),MARK 90915-CA003

main90915-TA001i1KRFE..KSP130201107-201407

(L),MARK 90915-TA001

15671BRACKET, OIL FILTER

main15671-0Q010i1KRFE..KSP130201107-201407

15671BGASKET, OIL FILTER BRACKET

main15691-40020i1KRFE..KSP130201107-201407

90105W0144

main90105-W0144

9155180880

main91551-80880

5 parts on this diagram · 4 diagrams in section
