SHORT BLOCK ASSEMBLY

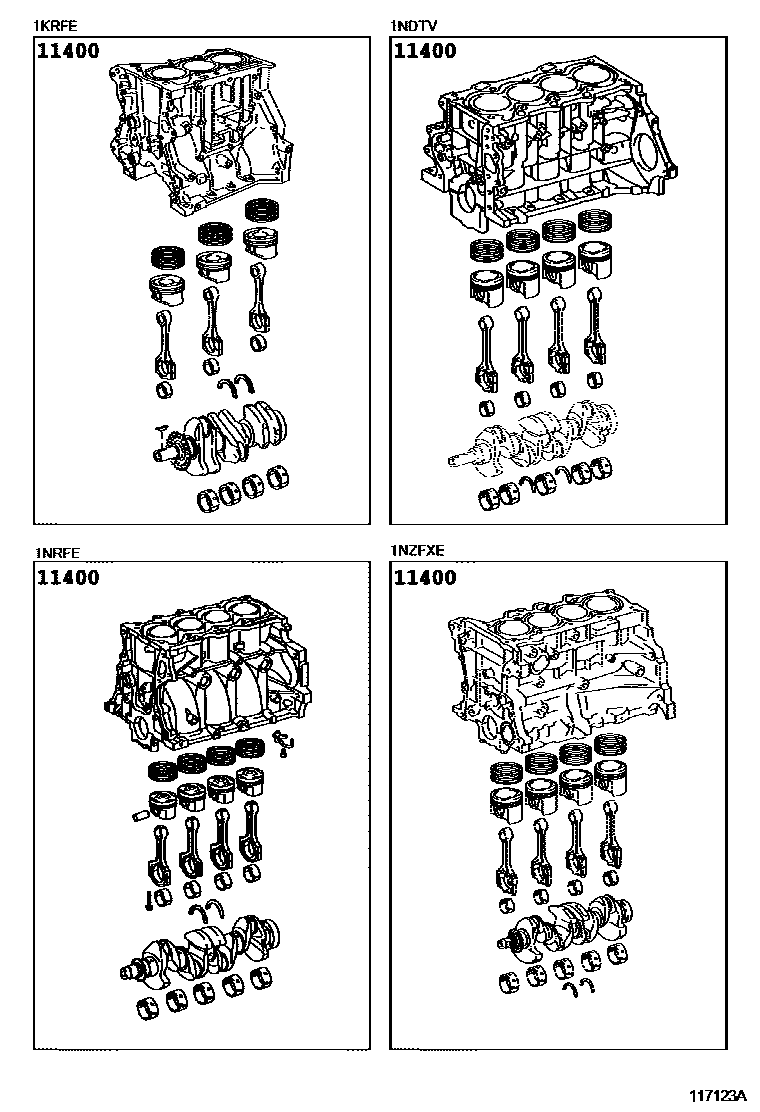

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0N040i201107-201202

main11400-0N041i201202-201302

main11400-0N070i201302

main11400-0Q030i201107

*138

main11400-21430i201204

main11400-40130i201107-201311

*132

main11400-40131i201311

*132

main11400-47090i201107-201301

main11400-47091i201301-201308

main11400-47140i201308

1 parts on this diagram · 1 diagram in section
