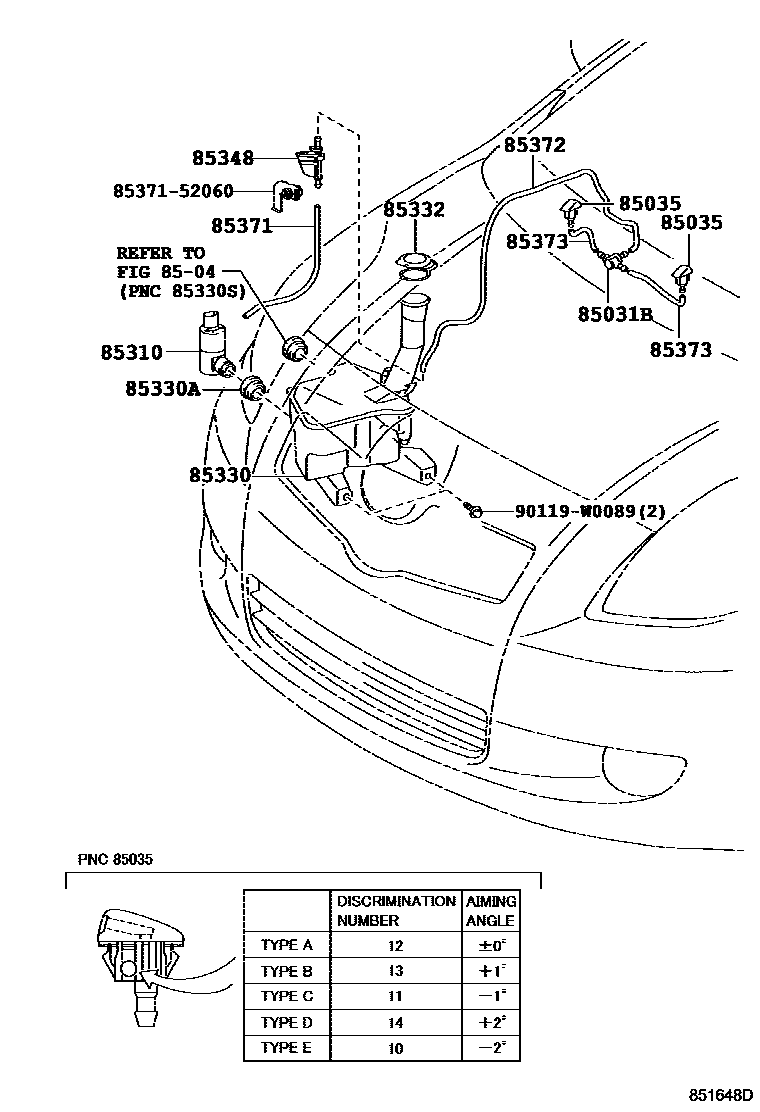

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-0D010iKSP90,NLP90,NSP90..FRP200811

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iKSP90,NLP90,NSP90..FRP200811

TYPE A:REFER ILLUST.

main85381-52280×2iKSP90,NLP90,SCP90..FRP200511-200811

TYPE B:REFER ILLUST.

main85381-52290×2iKSP90,NLP90,SCP90..FRP200511-200811

TYPE C:REFER ILLUST.

main85381-52300×2iKSP90,NLP90,SCP90..FRP200511-200811

TYPE D:REFER ILLUST.

main85381-52310×2iKSP90,NLP90,NSP90..FRP200811

TYPE E:REFER ILLUST.

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D050iKSP90,NLP90,NSP90..FRP200811

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D060iKSP90,NLP90,SCP90..FRP200511-200811

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iKSP90,NLP90,SCP90..FRP200511-200811

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010iKSP90,NLP90,SCP90..FRP200511-200811

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-0D060iKSP90,NLP90,SCP90..FRP200511-200811

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009iKSP90,NLP90,SCP90..FRP200511-200811

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16009iKSP90,NLP90,SCP90..FRP200511-200811

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009×2iKSP90,NLP90,SCP90..FRP200511-200811

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

90119W0089

main90119-W0089

13 parts on this diagram · 1 diagram in section
