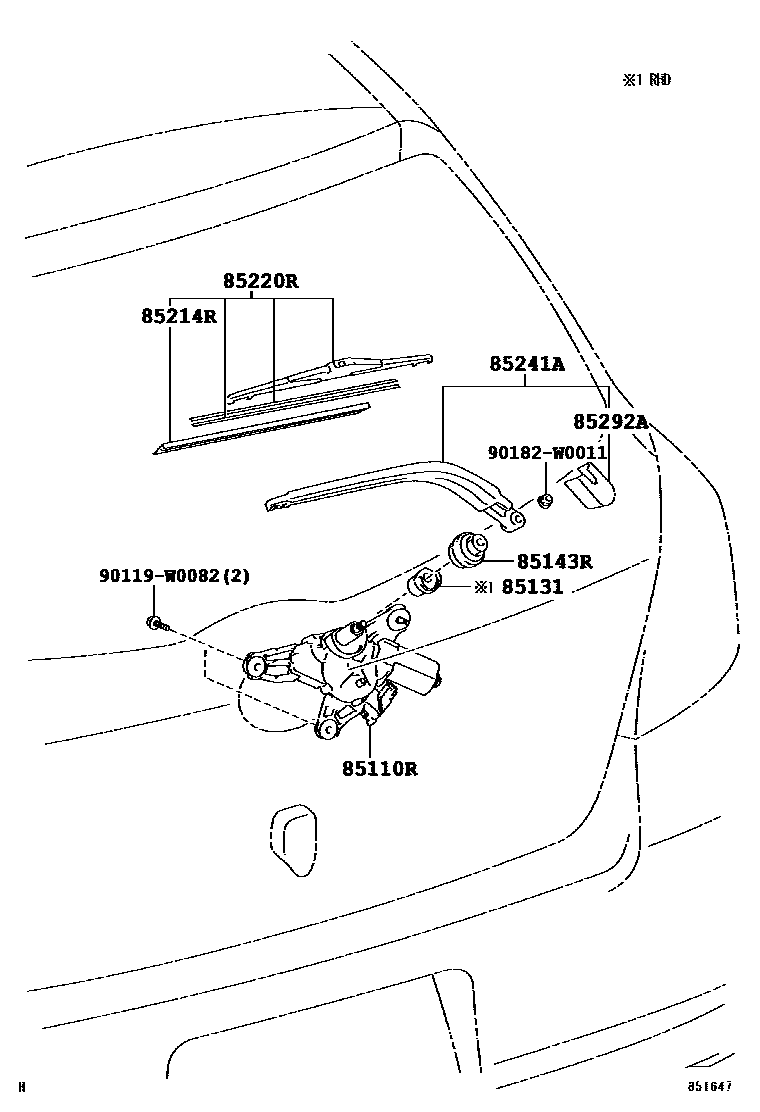

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D020iKSP90,NLP90,SCP90..FRP200511-200811

85131COVER, REAR WIPER MOTOR

main85131-0D030iKSP90,NLP90,SCP90..FRP..RHD200511-200811

POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH

85143RGROMMET, REAR WIPER MOTOR

main85143-0D020iKSP90,NLP90,SCP90..FRP200511-200811

85214RRUBBER, REAR WIPER

main85214-0D100iKSP90,NLP90,SCP90..FRP200511-200811

85220RBLADE ASSY, REAR WIPER

main85242-0D020iKSP90,NLP90,SCP90..FRP200511-200811

85241AARM, REAR WIPER

main85241-0D020iKSP90,NLP90,SCP90..FRP200511-200811

85292ACAP, REAR WIPER ARM HEAD

main85292-0D020iKSP90,NLP90,SCP90..FRP200511-200811

90119W0082

main90119-W0082

90182W0011

main90182-W0011

9 parts on this diagram · 1 diagram in section
