SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1COWL 0011 1COWL 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1STEERING 0020 1STEERING 0021 1DOOR,ROOF,FLOOR & LAGGAGE 0022 1DOOR,ROOF,FLOOR & LAGGAGE

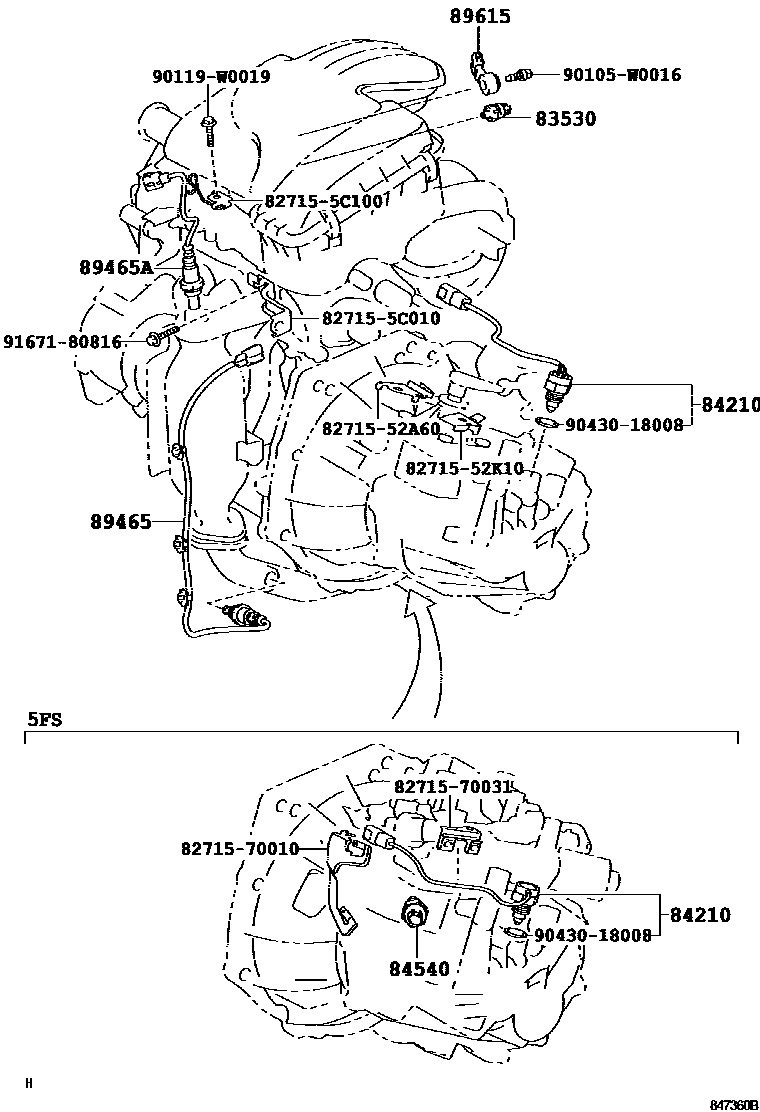

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNLP90..FRP200511-200811

(L)

main83530-28010iNLP90..FRP200604-200811

DENSO

main83530-28020iNLP90..FRP200511-200811

(J),DENSO

main83530-60010iNLP90..FRP200604-200811

YAZAKI

main83530-60020iKSP90,NSP90..FRP200511-200811

(J),YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNLP90..FRP..5FS200511-201107

main84210-52010iNLP90..FRP..5F200511-200811

main84210-52021iKSP90..FRP..5FS200511-201006

main84210-52030iKSP90..FRP..5F200511-201107

84540SWITCH ASSY, NEUTRAL START

main84540-17010iNLP90..FRP..5FS200511-200811

main84540-70020iKSP90,SCP90..FRP..5FS200511-201006

main84545-12010iNLP90,NSP90..FRP..6FS200902-201107

main84545-20020iNSP90..FRP..6F200811-201009

ENGINE-WITHOUT(STOP & START SYSTEM)

main84545-20021iNSP90..FRP..6F201010-201107

ENGINE-WITHOUT(STOP & START SYSTEM)

89465SENSOR, OXYGEN

main89465-0D110iSCP90..FRP200511-200811

main89465-0D130iKSP90..FRP200511-200811

main89465-52540iNSP90..FRP200811

89465ASENSOR, OXYGEN NO.2

main89465-0D120iSCP90..FRP200511-200811

main89465-0H010iKSP90..FRP200511-201006

89615SENSOR, KNOCK CONTROL

main89615-02020iSCP90..FRP200511-200811

(L)

main89615-0H010iKSP90..FRP200511-200811

main89615-20090iSCP90..FRP200511-200811

(J)

main89615-20090iNSP90..FRP200811

8271552A60BRACKET,WIRING HARNESS CLAMP

main82715-52A60

8271552K10BRACKET,WIRING HARNESS CLAMP

main82715-52K10

827155C010BRACKET,WIRING HARNESS CLAMP

main82715-5C010

827155C100BRACKET,WIRING HARNESS CLAMP

main82715-5C100

8271570010BRACKET,WIRING HARNESS CLAMP

main82715-70010

8271570031BRACKET,WIRING HARNESS CLAMP

main82715-70031

90105W0016

main90105-W0016

90119W0019

main90119-W0019

9043018008

main90430-18008

9167180816

main91671-80816

16 parts on this diagram · 21 diagrams in section
