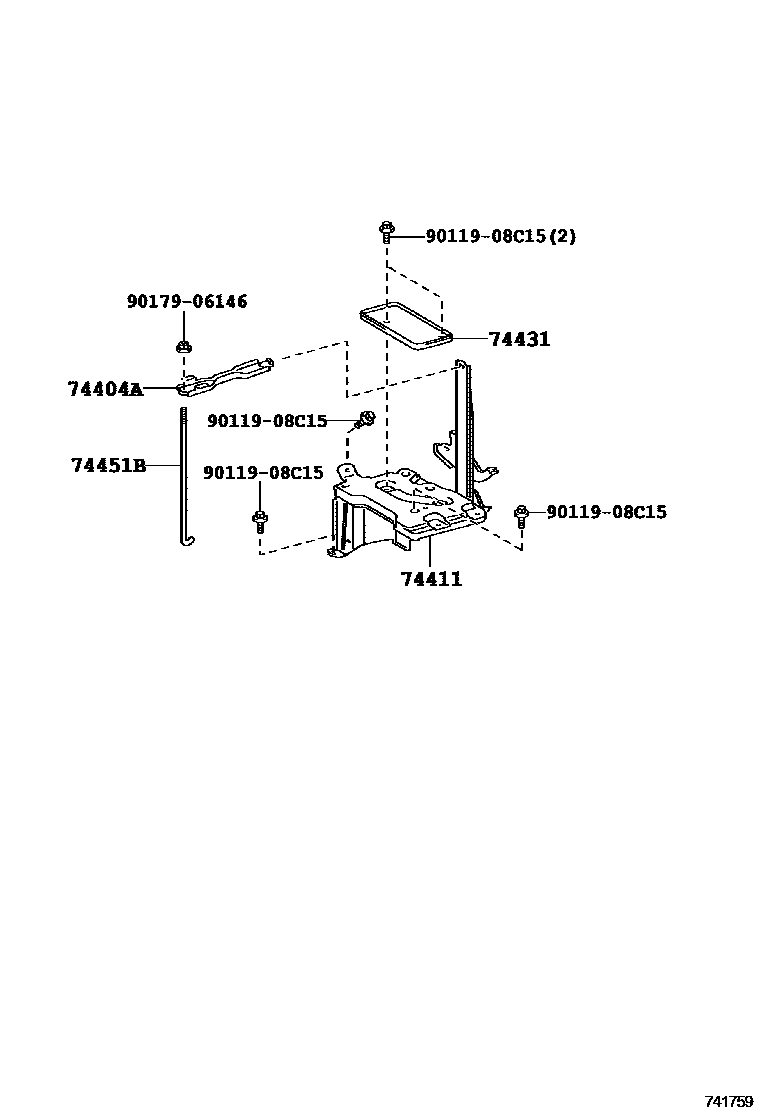

BATTERY CARRIER
74404ACLAMP SUB-ASSY, BATTERY
COLD SPEC, WITH(REAR HEATER DUCT)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSHSTART)
COLD SPEC, WITH(REAR HEATER DUCT)
74411CARRIER, BATTERY
COLD SPEC, WITH(REAR HEATER DUCT)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSHSTART)
COLD SPEC, WITH(REAR HEATER DUCT)
74431TRAY, BATTERY
COLD SPEC, WITH(REAR HEATER DUCT)
COLD SPEC, WITH(REAR HEATER DUCT)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSHSTART)
ENGINE-WITHOUT(STOP & START SYSTEM)
74451BBOLT, BATTERY CLAMP
COLD SPEC, WITH(REAR HEATER DUCT)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSHSTART)
COLD SPEC, WITH(REAR HEATER DUCT)
9011908C15
main90119-08C15
9017906146
main90179-06146
6 parts on this diagram · 1 diagram in section
