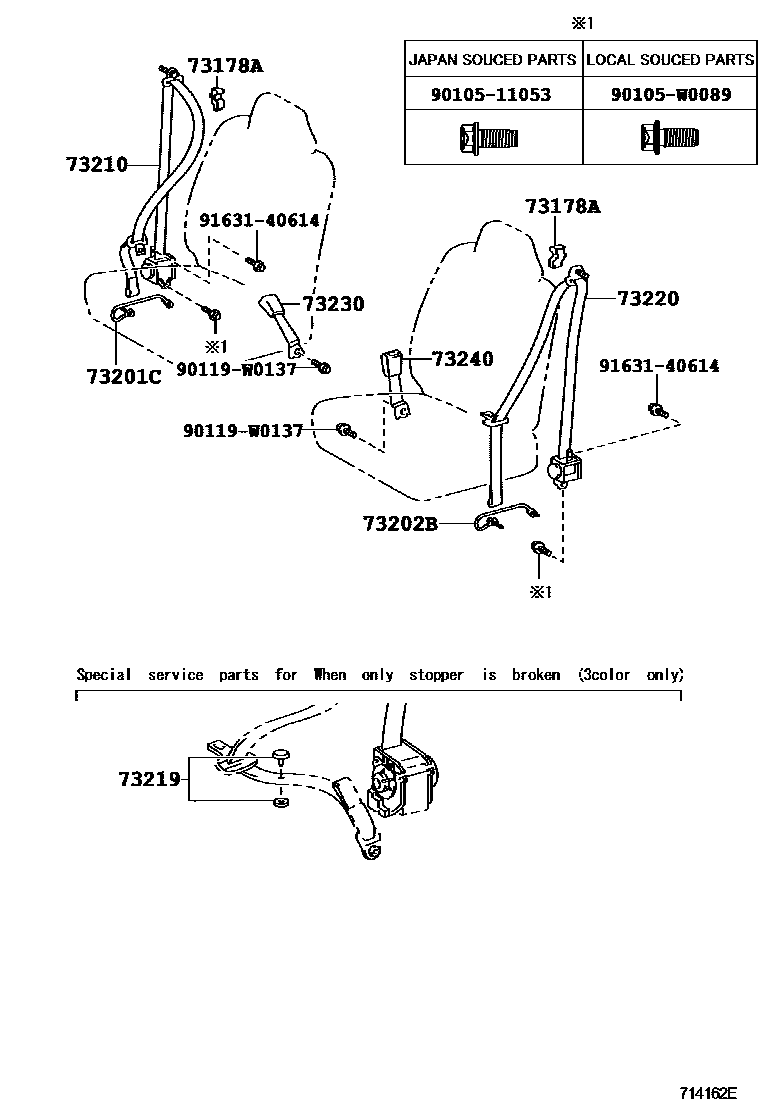

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1REAR SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-0D040-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

GRAY,TRIM1#

main73178-0D040-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

main73178-0D050-B0iKSP90,NLP90,SCP90..FRP..3D200601-201107

GRAY,TRIM1#

main73178-0D050-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-0D020-B0iKSP90,NLP90,SCP90..FRP..3D200601-201107

DK.GRAY,TRIM1#

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-0D020-B0iKSP90,NLP90,SCP90..FRP..3D200601-201107

DK.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D190-C0iKSP90,NLP90,SCP90..FRP..3D200601-201107

BLACK,TRIM1#

main73210-0D190-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

main73210-0D200-C1iKSP90,NLP90,SCP90..FRP..5D200511-201107

BLACK,TRIM1#

main73210-0D200-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iKSP90,NLP90,NSP90..FRP200511-200811

BLACK

main73219-33020iKSP90,NLP90,SCP90..FRP200511-200811

GRAY

main73219-33030iKSP90,NLP90,SCP90..FRP200511-200811

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D120-C0iKSP90,NLP90,SCP90..FRP..3D200601-201107

BLACK,TRIM1#

main73220-0D120-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

main73220-0D160-C1iKSP90,NLP90,NSP90..FRP..5D200511-201107

BLACK,TRIM1#

main73220-0D160-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D140-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main73230-0D140-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

GREGE,TRIM4#

main73230-0D150-B0iKSP90,NLP90,SCP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main73230-0D150-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D140-B0iKSP90,NLP90,NSP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main73230-0D140-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

GREGE,TRIM4#

main73230-0D150-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main73230-0D150-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

GREGE,TRIM4#

9010511053

main90105-11053

90105W0089

main90105-W0089

90119W0137

main90119-W0137

9163140614

main91631-40614

12 parts on this diagram · 3 diagrams in section
