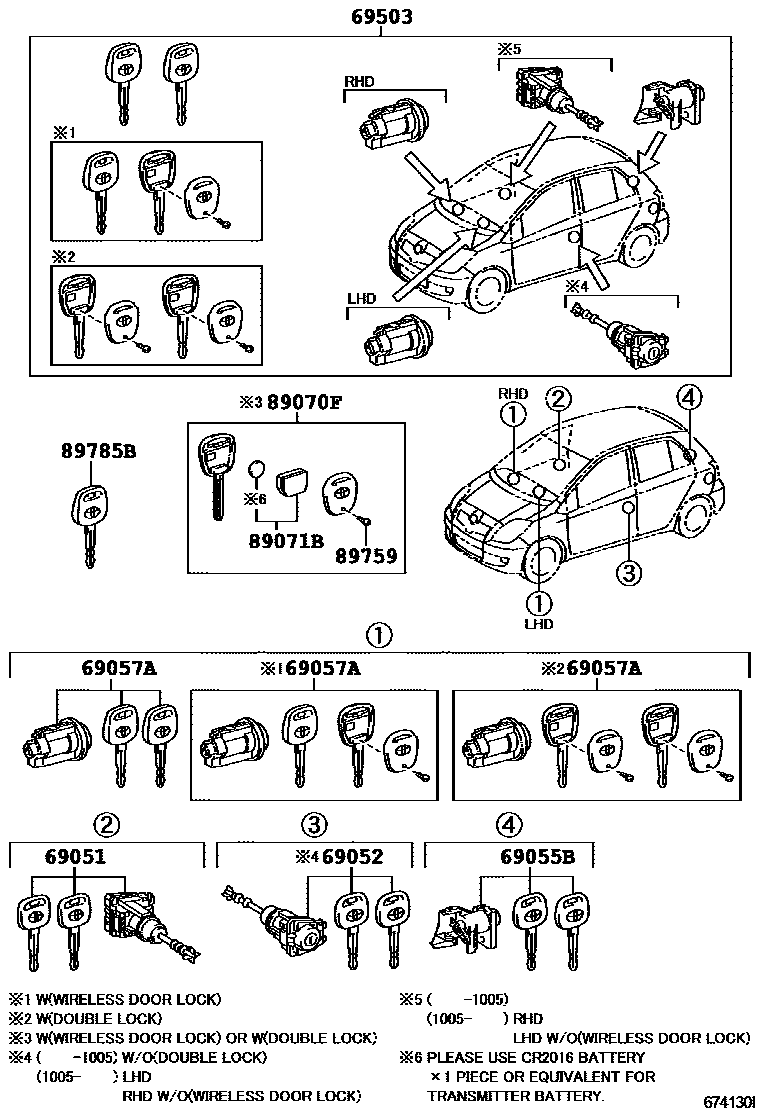

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-0D050iKSP90,NLP90,NSP90..FRP..RHD;KSP90,NLP90,NSP90..FRP..LHD..TRSTD; NSP90..FRP..LHD..5D..TRSTD; NSP90..FRP..RHD..5D..SOL200811
DAIHATSU CHARADE&POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; DAIHATSU CHARADE&WIRELESS DOOR LOCK-WITH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main89073-0D090supersedes 69057-0D060iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200811
WIRELESS DOOR LOCK-WITH
DAIHATSU CHARADE&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
69503CYLINDER SET, LOCK
main89073-0D120supersedes 69005-0D050iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200811
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START); WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START); WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
WIRELESS DOOR LOCK-WITH
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-0D030iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD; KSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; KSP90,NLP90..FRP..LHD..SOL; SCP90..FRP..LHD..SOL200511-200811
MEXICO SPEC; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-WITH
89759SCREW, DOOR CONTROL TRANSMITTER
main89759-02010iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD; KSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; KSP90,NLP90..FRP..LHD..SOL; SCP90..FRP..LHD..SOL200511-200811
MEXICO SPEC; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(W/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START); WIRELESS DOOR LOCK-WITH
89785BTRANSMITTER, TRANSPONDER KEY MASTER
9 parts on this diagram · 2 diagrams in section
