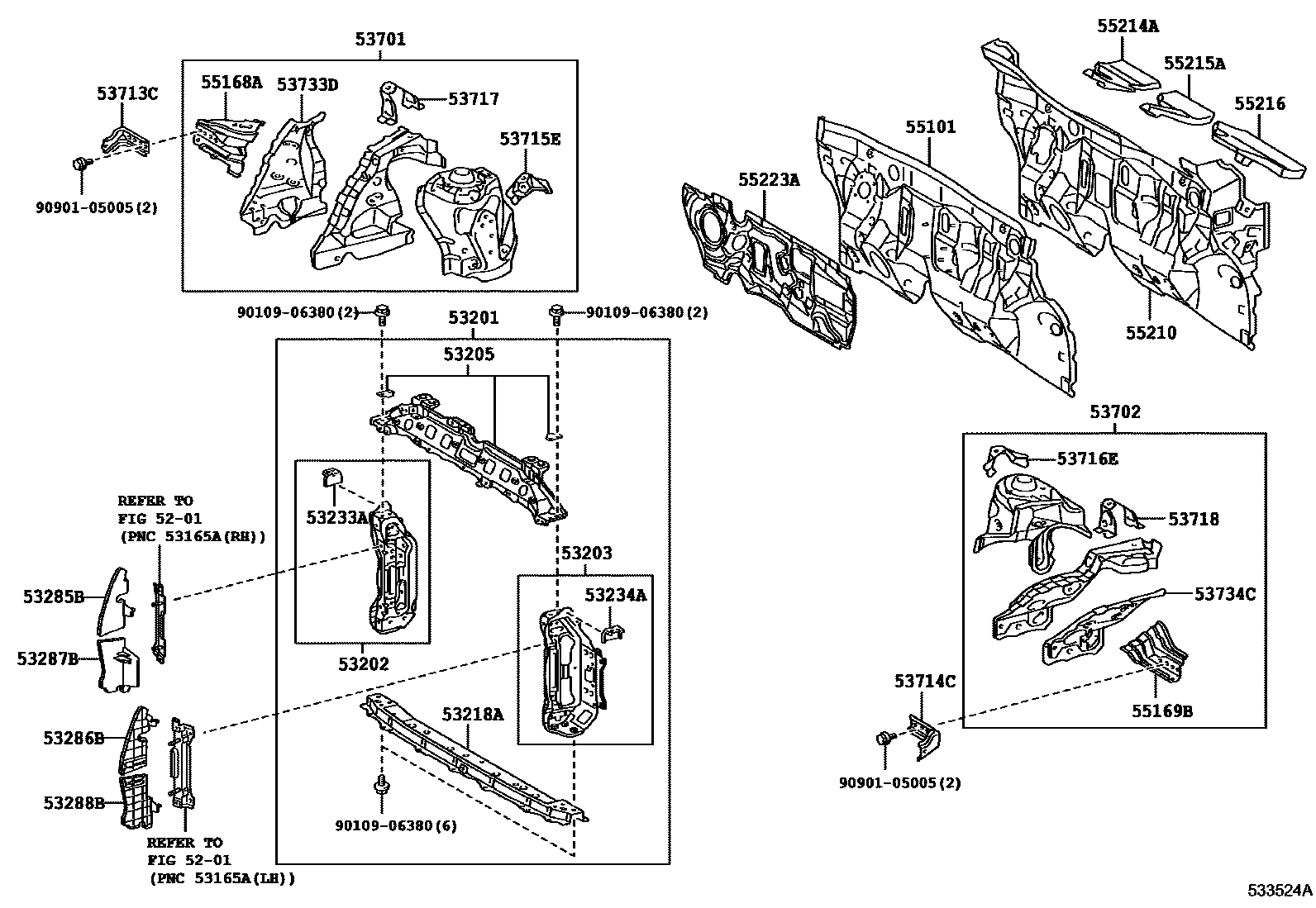

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53201SUPPORT SUB-ASSY, RADIATOR

main53201-52210iKSP90,NLP90,SCP90..FRP200511-200811

main53201-52250iKSP90,NLP90,NSP90..FRP200811-201107

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0D901iKSP90,NLP90,SCP90..FRP200511-200811

main53202-0D904iKSP90,NLP90,NSP90..FRP200811

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0D901iKSP90,NLP90,SCP90..FRP200511-200811

main53203-0D904iKSP90,NLP90,NSP90..FRP200811

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0D901iKSP90,NLP90,SCP90..FRP200511-200811

53218ASUPPORT, RADIATOR, LOWER

main53028-0D030iKSP90,NLP90,SCP90..FRP200511-201010

main53028-0D031iKSP90,NLP90,NSP90..FRP201011

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52010iKSP90,NLP90,SCP90..FRP200511-200811

main53233-52030iKSP90,NLP90,NSP90..FRP200811

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52020iKSP90,NLP90,SCP90..FRP200511-200811

main53234-52040iKSP90,NLP90,NSP90..FRP200811

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52170iKSP90,NLP90,SCP90..FRP200511-200811

main53285-52280iKSP90,NLP90,NSP90..FRP200811

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52100iKSP90,NLP90,SCP90..FRP200511-200811

main53286-52220iKSP90,NLP90,NSP90..FRP200811

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52010iKSP90,NLP90,SCP90..FRP200511-200811

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52010iKSP90,NLP90,SCP90..FRP200511-200811

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52160iKSP90,NLP90,SCP90..FRP200511-201107

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52160iKSP90,NLP90,SCP90..FRP200511-201107

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52010iKSP90,NLP90,SCP90..FRP200511-201107

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52020iKSP90,NLP90,SCP90..FRP200511-201107

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iKSP90,NLP90,SCP90..FRP200511-200811

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iKSP90,NLP90,SCP90..FRP200511-200811

53717PLATE, FENDER APRON, RH

main53717-52080iKSP90,NLP90,SCP90..FRP200511-200811

53718PLATE, FENDER APRON, LH

main53718-52080iKSP90,NLP90,SCP90..FRP200511-200811

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0D010iKSP90,NLP90,SCP90..FRP200511-200811

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0D010iKSP90,NLP90,SCP90..FRP200511-200811

55101PANEL SUB-ASSY, DASH

main55101-52531iKSP90,NLP90,SCP90..FRP..RHD..5F200511-200811

main55101-52541iKSP90,NLP90,SCP90..FRP..RHD..5FS200511-200811

main55101-52550iKSP90,NLP90,SCP90..FRP..LHD..5F200511-200811

main55101-52560iKSP90,NLP90,SCP90..FRP..LHD..5FS200511-200811

main55101-52580iKSP90,NLP90,NSP90..FRP..RHD..(5F,6F)200811-201107

main55101-52590iKSP90,NLP90,NSP90..FRP..RHD..(5FS,6FS)200811-201107

main55101-52600iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F)200811-201107

main55101-52610iKSP90,NLP90,NSP90..FRP..LHD..(5FS,6FS)200811-201107

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D040iKSP90,NLP90,SCP90..FRP200511-200811

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D040iKSP90,NLP90,SCP90..FRP200511-200811

55210INSULATOR ASSY, DASH PANEL

main55210-0D110iKSP90,NSP90..FRP..RHD200511-200905

main55210-0D111iKSP90,NSP90..FRP..RHD200906-200910

main55210-0D120iKSP90,NSP90..FRP..LHD200511-200811

main55210-0D150iNLP90..FRP..RHD200511-200811

main55210-0D160iNLP90..FRP..LHD200511-200811

main55210-0D240iNLP90..FRP..RHD200811-200905

main55210-0D241iNLP90..FRP..RHD200906-200910

main55210-0D250iNLP90..FRP..LHD200811

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0D040iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main55214-0D050iKSP90,NLP90,NSP90..FRP..LHD200511-200811

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-0D040iKSP90,NLP90,NSP90..FRP..RHD200511-200811

main55215-0D050iKSP90,NLP90,SCP90..FRP..LHD200511-200811

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0D050iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main55216-0D060iKSP90,NLP90,SCP90..FRP..LHD200511-200811

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D050iKSP90,SCP90..FRP..RHD200511-200811

main55223-0D060iKSP90,SCP90..FRP..LHD200511-200811

main55223-0D090iNLP90..FRP..RHD200511-200811

main55223-0D100iNLP90..FRP..LHD200511-200811

main55223-0D160iKSP90,NSP90..FRP..RHD200811-201011

main55223-0D170iKSP90,NSP90..FRP..LHD200811-201011

main55223-0D180iNLP90..FRP..RHD200811-201011

main55223-0D190iNLP90..FRP..LHD200811-201011

9010906380

main90109-06380

9090105005

main90901-05005

32 parts on this diagram · 4 diagrams in section
