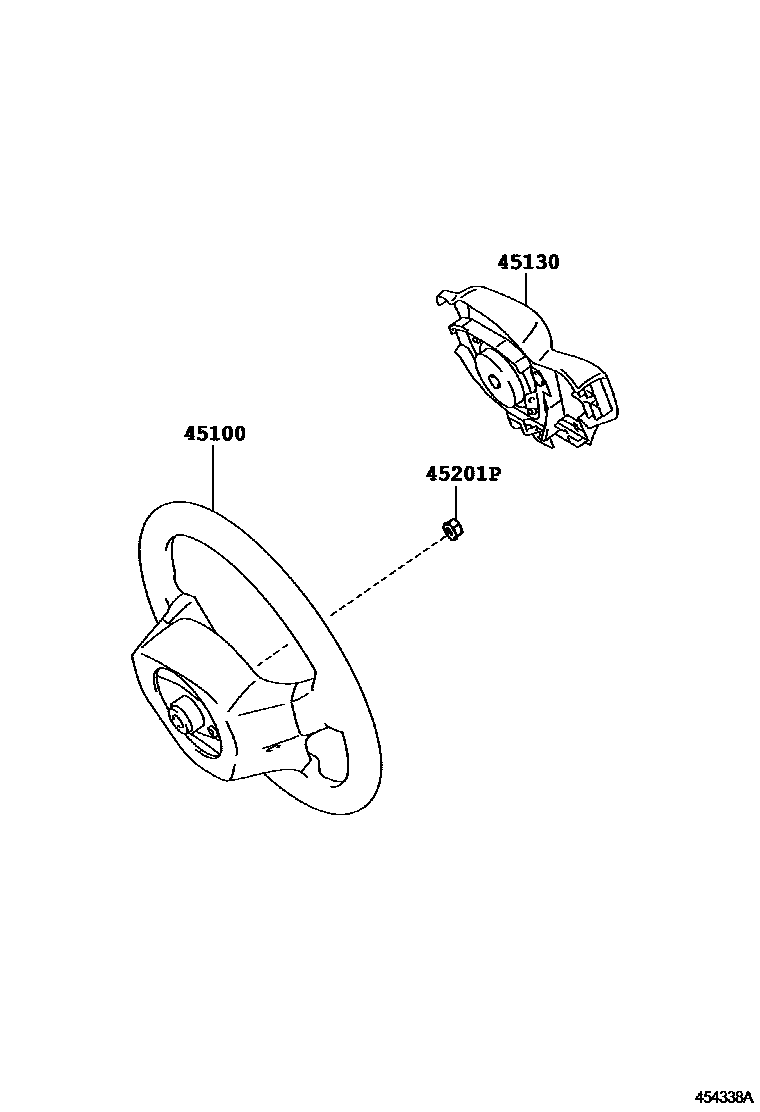

STEERING WHEEL

0001 13-SPOKE 0002 13-SPOKE,W(STEERING AUDIO SWIT0003 13-SPOKE,W(TRANSMISSION SHIFT

45100WHEEL ASSY, STEERING

main45100-0D130-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

3-SPOKE,URETHANE,STEERING WHEEL-URETHANE,DK.GRAY,TRIM1#

main45100-0D130-B0iKSP90,NLP90,SCP90..FRP..SOL200511-201107

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0D140-B0iKSP90,NLP90,SCP90..FRP..SOL200511-200705

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#

sub45100-0D140

main45100-0D140-B0iKSP90,NLP90,SCP90..FRP..SOL200511-200705

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

sub45100-0D140

main45100-0D140-B1iKSP90,NLP90,SCP90..FRP..TRSTD200705-200811

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

sub45100-0D140

main45100-0D140-B1iKSP90,NLP90,SCP90..FRP..SOL200705-200811

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#

sub45100-0D140

main45100-0D150-B1iKSP90,NLP90,NSP90..FRP..(5F,6F)..SOL200811-201107

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-0D150-E0iKSP90,NLP90,NSP90..FRP..(5F,6F)..SOL200811-201001

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0D300-B1iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200811-201107

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-0D300-E0iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200902-201001

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

45130BUTTON ASSY, HORN

main45130-0D150-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-201107

DK.GRAY,TRIM1#

sub45130-0D600

main45130-0D150-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

STEERING WHEEL-URETHANE,DK.GRAY,TRIM1#

sub45130-0D600

main45130-0D160-B0iKSP90,NLP90,SCP90..FRP..SOL200511-201107

DK.GRAY,TRIM1#

sub45130-0D610

main45130-0D160-B0iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#

sub45130-0D610

main45130-0D160-B0iKSP90,NLP90,NSP90..FRP..(5F,6F)..SOL200811-201107

STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH),DK.GRAY,TRIM1#

sub45130-0D610

main45130-0D160-E0iKSP90,NLP90,NSP90..FRP..(5F,6F)..SOL200811-201001

ASH BROWN,TRIM4#

sub45130-0D610

main45130-0D240-B0iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200811-201107

DK.GRAY,TRIM1#

main45130-0D240-E0iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200902-201001

ASH BROWN,TRIM4#

45201PNUT, STEERING WHEEL SET

main90178-W0030iKSP90,NLP90,SCP90..FRP200511-200811

sub90179-12071

main90179-12071iKSP90,NLP90,NSP90..FRP200811

3 parts on this diagram · 3 diagrams in section
