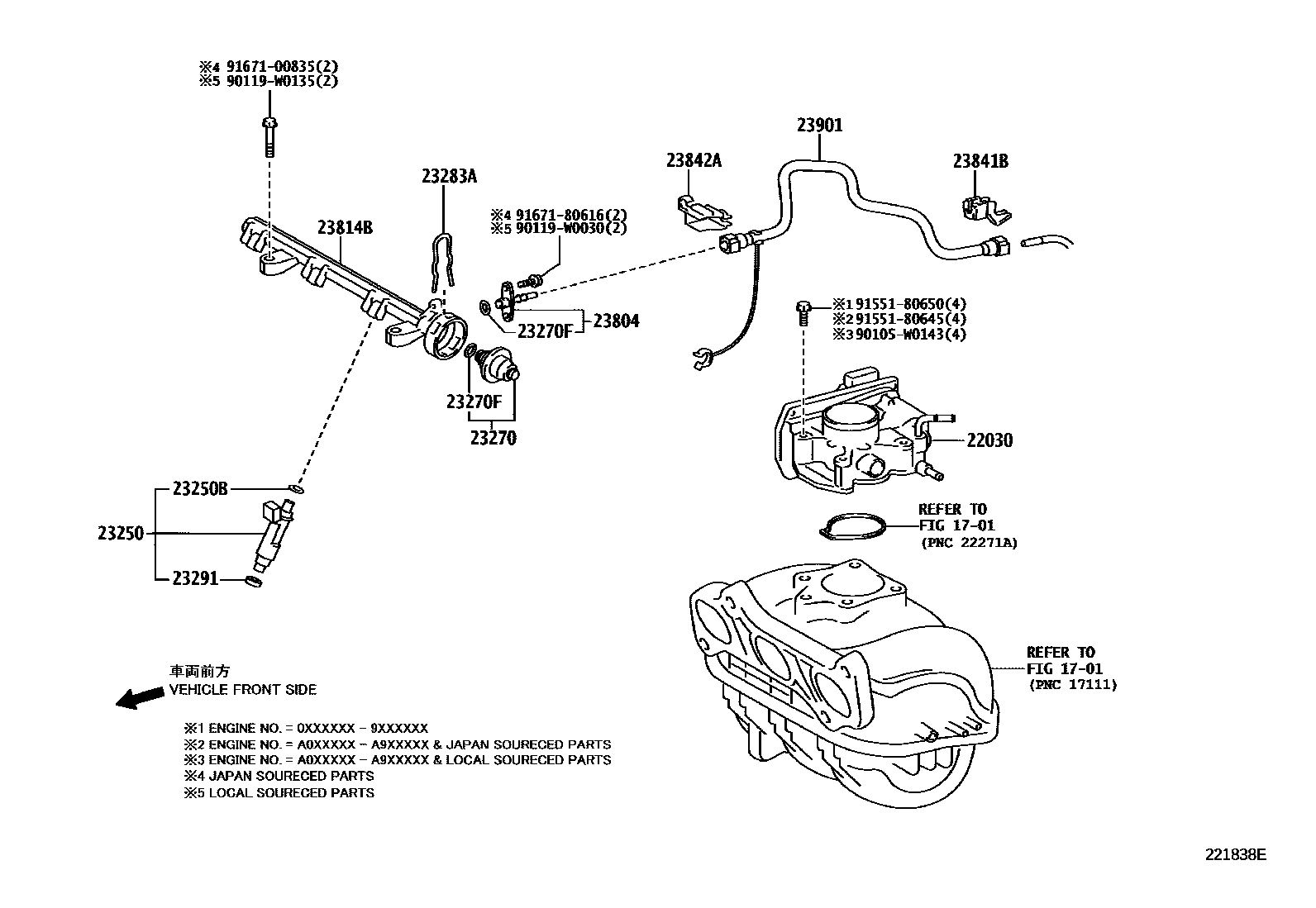

FUEL INJECTION SYSTEM
1701
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
23250INJECTOR ASSY, FUEL
*138
*132
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
*138,(L)
*138,(J)
*132
23804PIPE SUB-ASSY, FUEL, NO.4
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
90105W0143
main90105-W0143
90119W0030
main90119-W0030
90119W0135
main90119-W0135
9155180645
main91551-80645
9155180650
main91551-80650
9167100835
main91671-00835
9167180616
main91671-80616
20 parts on this diagram · 3 diagrams in section
