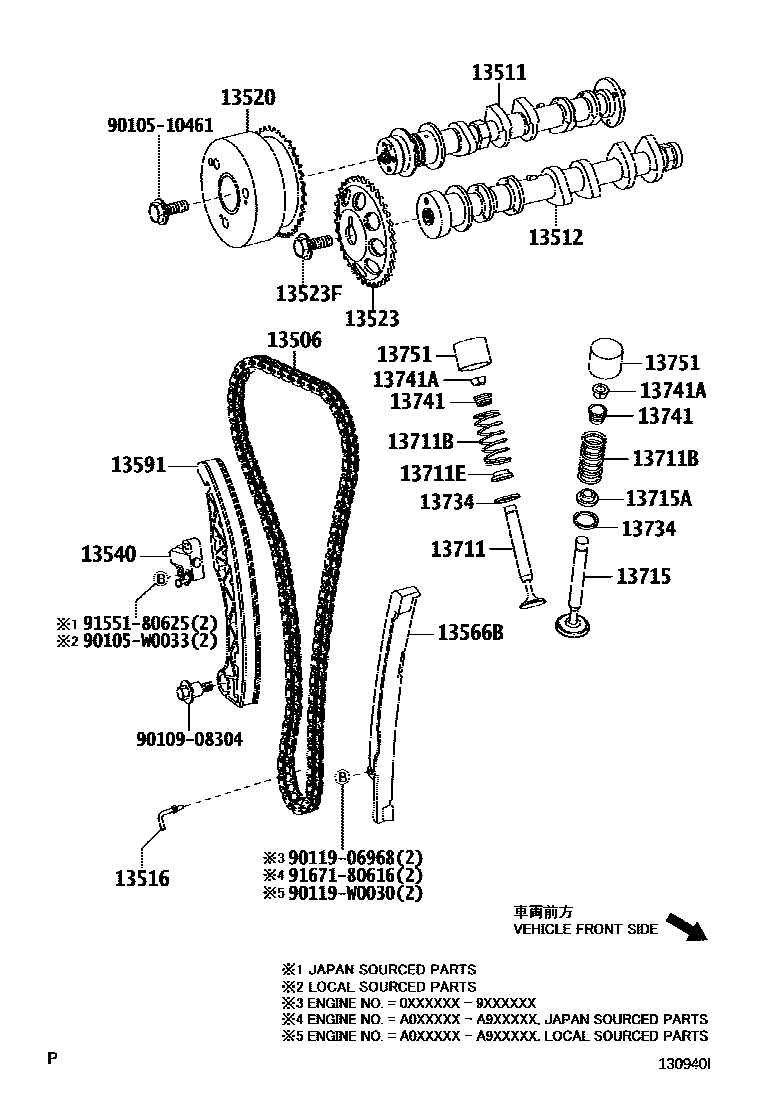

CAMSHAFT & VALVE
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(J)
(J)
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(L)
(J)
13751LIFTER, VALVE
T=5.14,(L)
T=5.16,(L)
T=5.18,(L)
T=5.20,(L)
T=5.22,(L)
T=5.26,(L)
T=5.36,(L)
T=5.38,(L)
T=5.40,(L)
T=5.44,(L)
T=5.46,(L)
T=5.52,(L)
T=5.54,(L)
T=5.56,(L)
T=5.58,(L)
T=5.60,(L)
T=5.62,(L)
T=5.64,(L)
T=5.66,(L)
T=5.68,(L)
T=5.12,(J)
T=5.14,(J)
T=5.16,(J)
T=5.18,(J)
T=5.20,(J)
T=5.22,(J)
T=5.24,(J)
T=5.26,(J)
T=5.28,(J)
T=5.30,(J)
T=5.32,(J)
T=5.34,(J)
T=5.36,(J)
T=5.38,(J)
T=5.40,(J)
T=5.42,(J)
T=5.44,(J)
T=5.46,(J)
T=5.48,(J)
T=5.50,(J)
T=5.52,(J)
T=5.54,(J)
T=5.56,(J)
T=5.58,(J)
T=5.60,(J)
T=5.62,(J)
T=5.64,(J)
T=5.66,(J)
T=5.68,(J)
9010510461
main90105-10461
90105W0033
main90105-W0033
9010908304
main90109-08304
9011906968
main90119-06968
90119W0030
main90119-W0030
9155180625
main91551-80625
9167180616
main91671-80616
26 parts on this diagram · 5 diagrams in section
