SHORT BLOCK ASSEMBLY

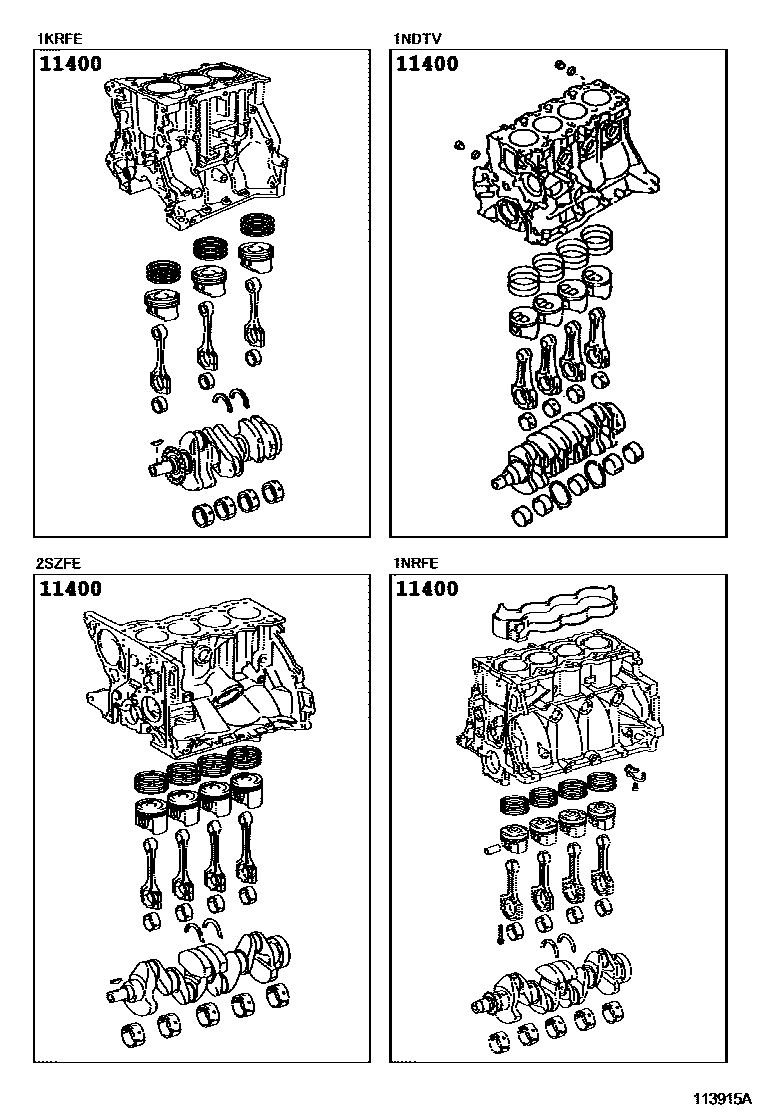

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0J040i200511-200802

main11400-0J041i200802-200811

main11400-0N021i200511-200811

ENGINE NO.=D001001-

main11400-0N040i201011-201107

(L)

main11400-0Q011i200511-200808

(L)

main11400-0Q020i200811-201107

(L)

main11400-33090i200511-200811

ENGINE NO.=0002001-

main11400-33140i200811-201007

main11400-33160i201007-201011

main11400-40080i200511-200611

(J)

main11400-40081i200611-200808

(J)

main11400-40110i200811-201107

(J)

main11400-47020i200811-201107

main11400-47030i200902-201107

main11400-0N030i201011-201107

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),(L)

1 parts on this diagram · 1 diagram in section
