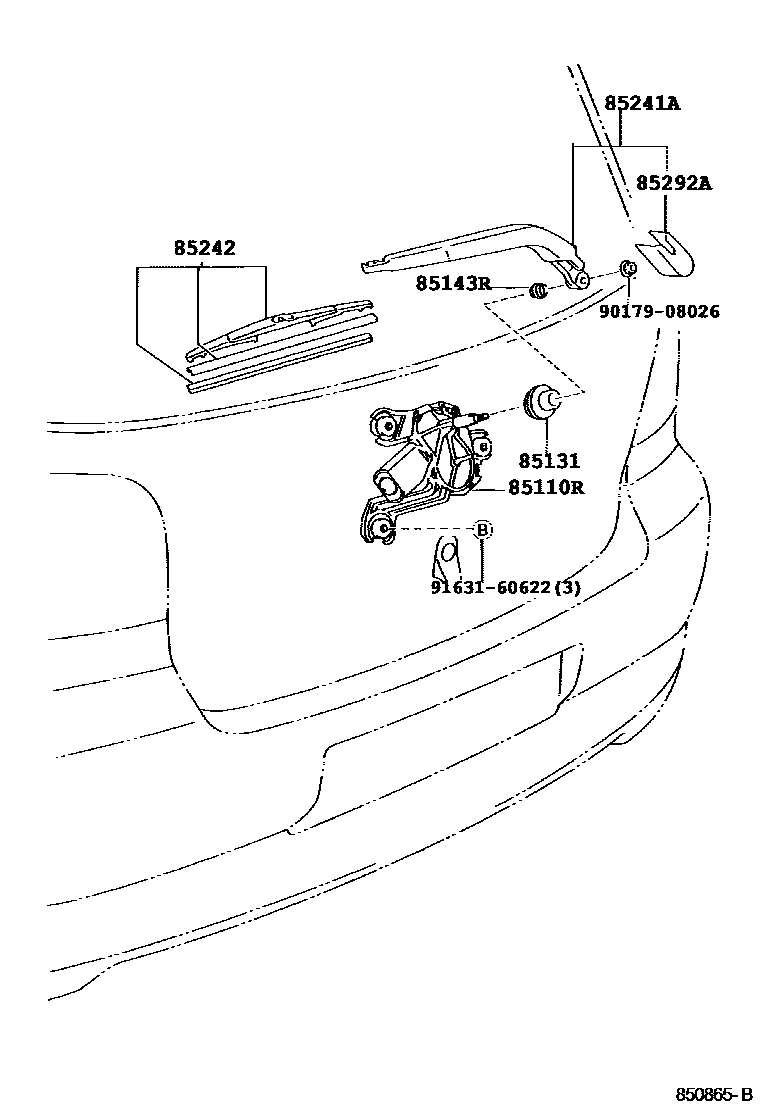

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D010iSCP1#200101-200302

85131COVER, REAR WIPER MOTOR

main85131-0D010iSCP10;SCP12..RHD200101-200302

85143RGROMMET, REAR WIPER MOTOR

main85143-0D010iSCP1#200101-200302

85241AARM, REAR WIPER

main85241-0D010iSCP1#200101-200302

main85241-0D011iNLP10,SCP1#..FRP200503

85242BLADE, RR WIPER

main85242-0D010iSCP1#200101-200302

85292ACAP, REAR WIPER ARM HEAD

main85244-0D010iSCP1#200101-200302

9017908026

main90179-08026

9163160622

main91631-60622

8 parts on this diagram · 1 diagram in section
