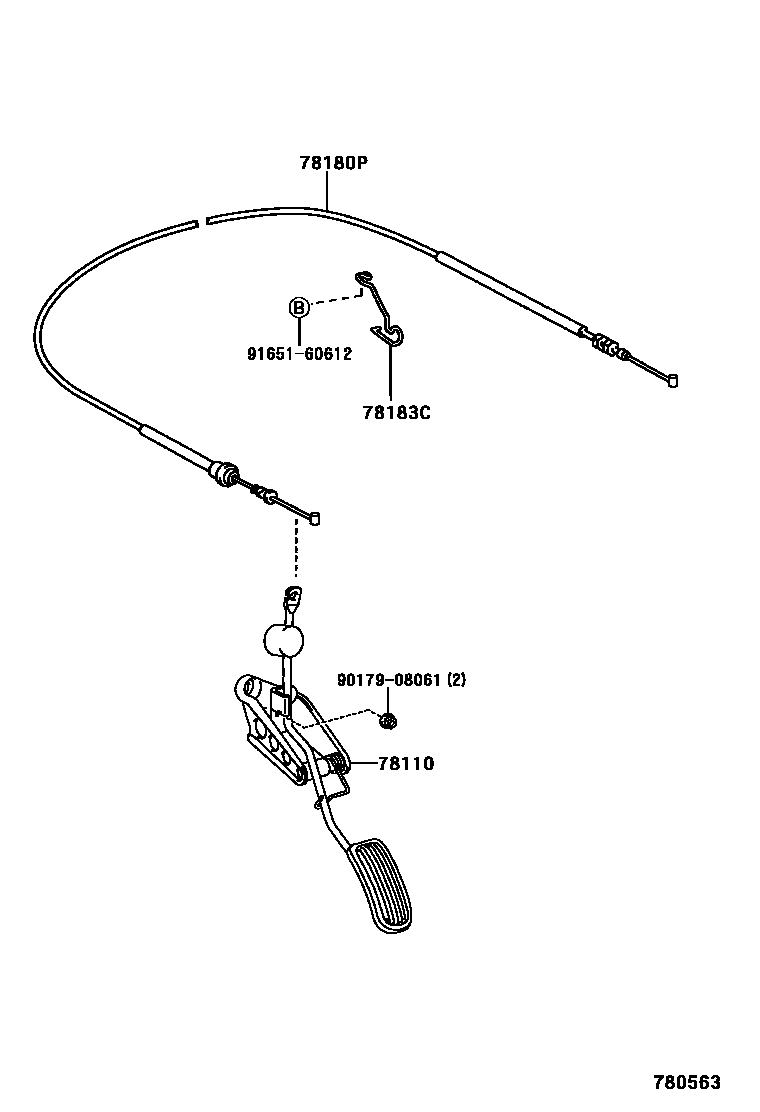

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-0D010iSCP12..FRP..LHD200205-200302

TYPE A:REFER TO ILLUSTRATION

main78120-0D010iSCP10..LHD200101-200302

main78120-52030iSCP12..FRP..LHD..4FC200205-200302

TYPE B:REFER TO ILLUSTRATION

main78120-52080iSCP1#..FRP..RHD..(4FC,5F)200101-200302

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-0D010iSCP10..LHD200101-200302

main78180-0D020iSCP10..RHD200101-200302

main78180-0D040iSCP12..FRP..LHD200205-200302

main78180-0D050iSCP12..RHD200205-200302

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-52090iSCP10..LHD..5F200101-200302

main78183-52180iSCP12..LHD200205-200302

9017908061

main90179-08061

9165160612

main91651-60612

5 parts on this diagram · 5 diagrams in section
