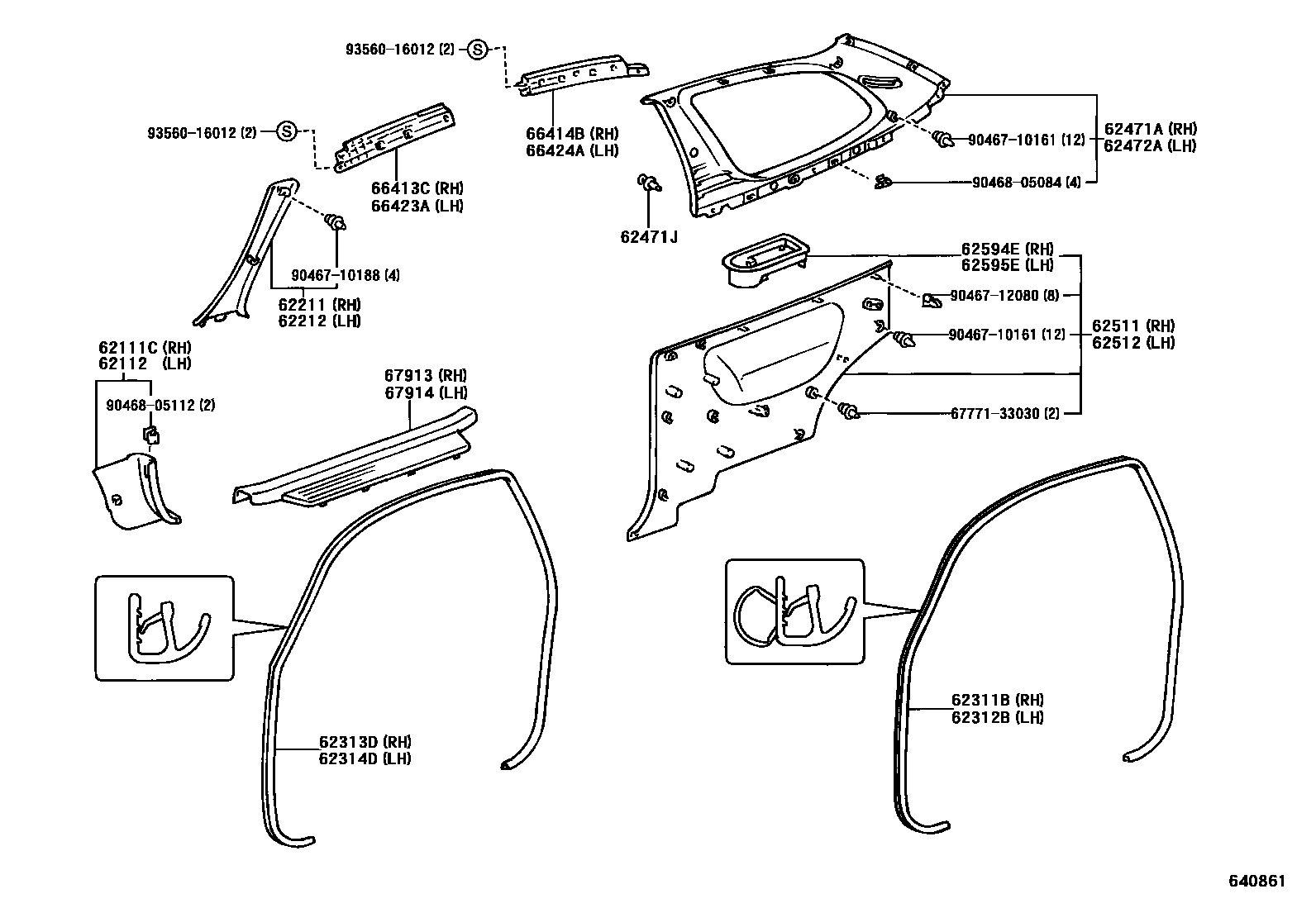

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D010-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62111-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main62111-0D010-B0iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main62111-0D010-B0iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,11

main62111-0D010-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main62111-0D010-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D010-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main62112-0D010-B0iNLP10..FRP..RHD..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main62112-0D010-B0iNLP10,SCP1#..FRP..SOL200302

DK.GRAY,TRIM10,11

main62112-0D010-B0iNLP10..FRP..RHD..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62112-0D010-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main62112-0D010-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

62211GARNISH, FRONT PILLAR, RH

main62211-0D010-B1iSCP1#200101-200302

LT. GRAY,TRIM1#

sub62211-52011

main62211-0D010-B1iNLP10..FRP..RHD..TRSTD200302-200401

LT. GRAY,TRIM10,11,17

sub62211-52011

main62211-0D010-B1iNLP10,SCP1#..FRP..SOL200302

LT. GRAY,TRIM10,11

sub62211-52011

main62211-0D010-B1iNLP10,SCP1#..FRP..SOL200302

LT. GRAY,TRIM10,11,17,18,19

sub62211-52011

main62211-0D010-B1iNLP10..FRP..RHD..TRSTD200401

LT. GRAY,TRIM10,11,17,18

sub62211-52011

main62211-0D010-G1iSCP1#200101-200302

LT. GREEN,TRIM7#

sub62211-52011

62212GARNISH, FRONT PILLAR, LH

main62212-0D010-B1iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

LT. GRAY,TRIM10,11,17,18,19

sub62212-52011

main62212-0D010-B1iSCP1#200101-200302

LT. GRAY,TRIM1#

sub62212-52011

main62212-0D010-B1iNLP10..FRP..RHD..TRSTD200302-200401

LT. GRAY,TRIM10,11,17

sub62212-52011

main62212-0D010-B1iNLP10,SCP1#..FRP..SOL200302

LT. GRAY,TRIM10,11

sub62212-52011

main62212-0D010-B1iNLP10..FRP..RHD..TRSTD200401

LT. GRAY,TRIM10,11,17,18

sub62212-52011

main62212-0D010-G1iSCP1#200101-200302

LT. GREEN,TRIM7#

sub62212-52011

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62311-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

main62311-0D020-B1iSCP1#..5D200101-200302

SHADOW GRAY,TRIM1#

main62311-0D020-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

main62311-0D060-B0iNLP10,SCP1#..FRP..3D..SOL200302-200310

DK.GRAY,TRIM10,11,17

sub62311-0D061

main62311-0D060-B0iNLP10,SCP1#..FRP..3D..TRSTD200302-200310

DK.GRAY,TRIM10,11

sub62311-0D061

main62311-0D061-B0iNLP10..FRP..RHD..3D..TRSTD;SCP10..FRP..RHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62311-0D061-B0iNLP10,SCP1#..FRP..3D..SOL200310

DK.GRAY,TRIM10,11

main62311-0D061-B0iNLP10,SCP1#..FRP..3D..SOL200310

DK.GRAY,TRIM10,11,17,18,19

main62311-0D070-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DK.GRAY,TRIM10,11

sub62311-0D071

main62311-0D070-B0iNLP10,SCP1#..FRP..5D..SOL200302-200310

DK.GRAY,TRIM10,11,17

sub62311-0D071

main62311-0D071-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17,18,19

main62311-0D071-B0iNLP10,SCP1#..FRP..5D..SOL200310

DK.GRAY,TRIM10,11

main62311-0D071-B0iNLP10,SCP1#..FRP..5D..SOL200310

DK.GRAY,TRIM10,11,17

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62312-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

main62312-0D020-B1iSCP1#..5D200101-200302

SHADOW GRAY,TRIM1#

main62312-0D020-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

main62312-0D060-B0iNLP10,SCP1#..FRP..3D..SOL200302-200310

DK.GRAY,TRIM10,11

sub62312-0D061

main62312-0D060-B0iNLP10,SCP1#..FRP..3D..SOL200302-200310

DK.GRAY,TRIM10,11,17

sub62312-0D061

main62312-0D061-B0iNLP10..FRP..RHD..3D..TRSTD;SCP10..FRP..RHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62312-0D061-B0iNLP10,SCP1#..FRP..3D..SOL200310

DK.GRAY,TRIM10,11

main62312-0D061-B0iNLP10,SCP1#..FRP..3D..SOL200310

DK.GRAY,TRIM10,11,17,18,19

main62312-0D070-B0iNLP10,SCP1#..FRP..5D..TRSTD200302-200310

DK.GRAY,TRIM10,11

sub62312-0D071

main62312-0D070-B0iNLP10,SCP1#..FRP..5D..SOL200302-200310

DK.GRAY,TRIM10,11,17

sub62312-0D071

main62312-0D071-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62312-0D071-B0iNLP10,SCP1#..FRP..5D..SOL200310

DK.GRAY,TRIM10,11

main62312-0D071-B0iNLP10,SCP1#..FRP..5D..SOL200310

DK.GRAY,TRIM10,11,17,18,19

62313DTRIM, FRONT DOOR OPENING, RH

main62313-0D010-B1iSCP10..3D..TRSTD200101-200302

SHADOW GRAY,TRIM1#

main62313-0D010-H0iSCP10..3D..TRSTD200101-200302

FRENCH TURQUOISE,TRIM7#

main62313-0D020-B1iSCP10..5D..TRSTD200101-200302

SHADOW GRAY,TRIM1#

main62313-0D020-H0iSCP10..5D..TRSTD200101-200302

FRENCH TURQUOISE,TRIM7#

main62313-0D070-B0iSCP1#..FRP..3D..(TRSTD,TSGS)200302-200310

DK.GRAY,TRIM10,11,17

sub62313-0D071

main62313-0D071-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17,18,19

main62313-0D071-B0iSCP1#..FRP..3D..TRSTD..5F;SCP10..FRP..LHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62313-0D080-B0iSCP1#..FRP..5D..TRSTD200302-200310

DK.GRAY,TRIM10,11,17

sub62313-0D081

main62313-0D081-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62313-0D081-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17,18,19

62314DTRIM, FRONT DOOR OPENING, LH

main62314-0D010-B1iSCP10..3D..TRSTD200101-200302

SHADOW GRAY,TRIM1#

main62314-0D010-H0iSCP10..3D..TRSTD200101-200302

FRENCH TURQUOISE,TRIM7#

main62314-0D020-B1iSCP10..5D..TRSTD200101-200302

SHADOW GRAY,TRIM1#

main62314-0D020-H0iSCP10..5D..TRSTD200101-200302

FRENCH TURQUOISE,TRIM7#

main62314-0D070-B0iSCP1#..FRP..3D..(TRSTD,TSGS)200302-200310

DK.GRAY,TRIM10,11,17

sub62314-0D071

main62314-0D071-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17,18,19

main62314-0D071-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62314-0D080-B0iSCP1#..FRP..5D..TRSTD200302-200310

DK.GRAY,TRIM10,11,17

sub62314-0D081

main62314-0D081-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17

main62314-0D081-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200310

DK.GRAY,TRIM10,11,17,18,19

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D010-B1iSCP1#..3D200101-200302

LT. GRAY,TRIM1#

main62471-0D010-B1iNLP10..FRP..RHD..3D..TRSTD200302-200401

LT. GRAY,TRIM10,11,17

main62471-0D010-B1iNLP10,SCP1#..FRP..3D..SOL200302

LT. GRAY,TRIM10,11

main62471-0D010-B1iNLP10,SCP1#..FRP..3D..SOL200302

LT. GRAY,TRIM10,11,17,18,19

main62471-0D010-B1iNLP10..FRP..RHD..3D..TRSTD200401

LT. GRAY,TRIM10,11,17,18

main62471-0D010-G1iSCP1#..3D200101-200302

LT. GREEN,TRIM7#

main62471-0D020-B1iNLP10,SCP1#..FRP..5D..SOL200302-200401

LT. GRAY,TRIM10,11,17

sub62471-52020

main62471-0D020-B1iNLP10,SCP1#..FRP..5D..SOL200302

LT. GRAY,TRIM10,11,17,18,19

sub62471-52020

main62471-0D020-B1iSCP10..FRP..RHD..5D..TRSTD..5FS200302

LT. GRAY,TRIM10,11

sub62471-52020

main62471-0D020-B1iSCP1#..5D200101-200302

LT. GRAY,TRIM1#

sub62471-52020

main62471-0D020-B1iNLP10..FRP..RHD..5D..TRSTD200401

LT. GRAY,TRIM10,11,17,18

sub62471-52020

main62471-0D020-G1iSCP1#..5D200101-200302

LT. GREEN,TRIM7#

sub62471-52020

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06133-C0iNLP10,SCP1#..FRP..3D..(TRSTD,TSGS)200302

BLACK,TRIM10,11

sub90467-06133

main90467-06133-C0iNLP10,SCP1#..FRP..3D..(TRSTD,TSGS)200302

BLACK,TRIM10,11,17

sub90467-06133

main90467-06133-C0iSCP1#200101-200302

BLACK,TRIM1#,7#

sub90467-06133

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D010-B1iSCP1#..3D200101-200302

LT. GRAY,TRIM1#

main62472-0D010-G1iSCP1#..3D200101-200302

LT. GREEN,TRIM7#

main62472-0D020-B1iSCP1#..5D200101-200302

LT. GRAY,TRIM1#

main62472-0D020-G1iSCP1#..5D200101-200302

LT. GREEN,TRIM7#

main62472-0D090-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

LT. GRAY,TRIM10,11,17,18,19

main62472-0D090-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

LT. GRAY,TRIM10,11,17

main62472-0D090-B0iNLP10,SCP1#..FRP..3D..SOL200302

LT. GRAY,TRIM10,11

main62472-0D090-B0iNLP10..FRP..RHD..3D..TRSTD200401

LT. GRAY,TRIM10,11,17,18

main62472-0D100-B0iNLP10,SCP1#..FRP..5D..SOL200302

LT. GRAY,TRIM10,11

main62472-0D100-B0iNLP10,SCP1#..FRP..5D..SOL200302-200401

LT. GRAY,TRIM10,11,17

main62472-0D100-B0iNLP10,SCP1#..FRP..5D..SOL200302

LT. GRAY,TRIM10,11,17,18,19

main62472-0D100-B0iNLP10..FRP..RHD..5D..TRSTD200401

LT. GRAY,TRIM10,11,17,18

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0D020-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main62510-0D020-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main62510-0D020-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main62510-0D020-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62510-0D020-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62510-0D020-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-0D020-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main62520-0D020-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main62520-0D020-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main62520-0D020-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62520-0D020-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62520-0D020-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

62594EPOCKET, QUARTER TRIM, RH

main62594-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302-200401

DK.GRAY,TRIM10,11,17

main62594-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11

main62594-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main62594-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62594-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62594-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

62595EPOCKET, QUARTER TRIM, LH

main62595-0D010-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main62595-0D010-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,11,17

main62595-0D010-B0iSCP10..FRP..TSGS;SCP10..FRP..RHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main62595-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main62595-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main62595-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

66413CSPACER, SIDE RAIL, FRONT RH

main66413-0D010iSCP1#200101-200211

sub66413-0D011

main66413-0D011iNLP10,SCP1#..FRP200211-200302

main66413-0D020iSCP1#200101-200211

W(MOON ROOF)

sub66413-0D021

main66413-0D021iNLP10,SCP1#..FRP..(SOL,TRSTD)200211-200302

W(MOON ROOF)

66414BSPACER, SIDE RAIL, REAR RH

main66414-0D010iSCP1#200101-200302

main66414-0D020iSCP1#200101-200302

W(MOON ROOF)

66423ASPACER, SIDE RAIL, FRONT LH

main66423-0D010iSCP1#200101-200211

sub66423-0D011

main66423-0D011iNLP10,SCP1#..FRP200211-200302

main66423-0D020iSCP1#200101-200211

W(MOON ROOF)

sub66423-0D021

main66423-0D021iSCP1#200211-200302

W(MOON ROOF)

66424ASPACER, SIDE RAIL, REAR LH

main66424-0D010iSCP1#200101-200302

main66424-0D020iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

W(MOON ROOF)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D010-B0iSCP1#..FRP..3D..TRSTD..5F;NLP10..FRP..LHD..3D..TRSTD;SCP10..FRP..LHD..3D..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main67913-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main67913-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main67913-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main67913-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main67913-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

main67913-0D020-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main67913-0D020-B0iNLP10..FRP..RHD..5D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main67913-0D020-B0iNLP10,SCP1#..FRP..5D..SOL200302

DK.GRAY,TRIM10,11

main67913-0D020-B0iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302-200401

DK.GRAY,TRIM10,11,17

main67913-0D020-B1iSCP1#..5D200101-200302

SHADOW GRAY,TRIM1#

main67913-0D020-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main67914-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11

main67914-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main67914-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main67914-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main67914-0D010-H0iSCP1#..3D200101-200302

FRENCH TURQUOISE,TRIM7#

main67914-0D020-B0iNLP10,SCP1#..FRP..5D..SOL200302

DK.GRAY,TRIM10,11

main67914-0D020-B0iNLP10,SCP1#..FRP..5D..SOL200302-200401

DK.GRAY,TRIM10,11,17

main67914-0D020-B0iNLP10,SCP1#..FRP..5D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main67914-0D020-B0iNLP10..FRP..RHD..5D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main67914-0D020-B1iSCP1#..5D200101-200302

SHADOW GRAY,TRIM1#

main67914-0D020-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046710161

main90467-10161

9046710188

main90467-10188

9046712080

main90467-12080

9046805084

main90468-05084

9046805112

main90468-05112

9356016012

main93560-16012

28 parts on this diagram · 2 diagrams in section
