STEERING WHEEL

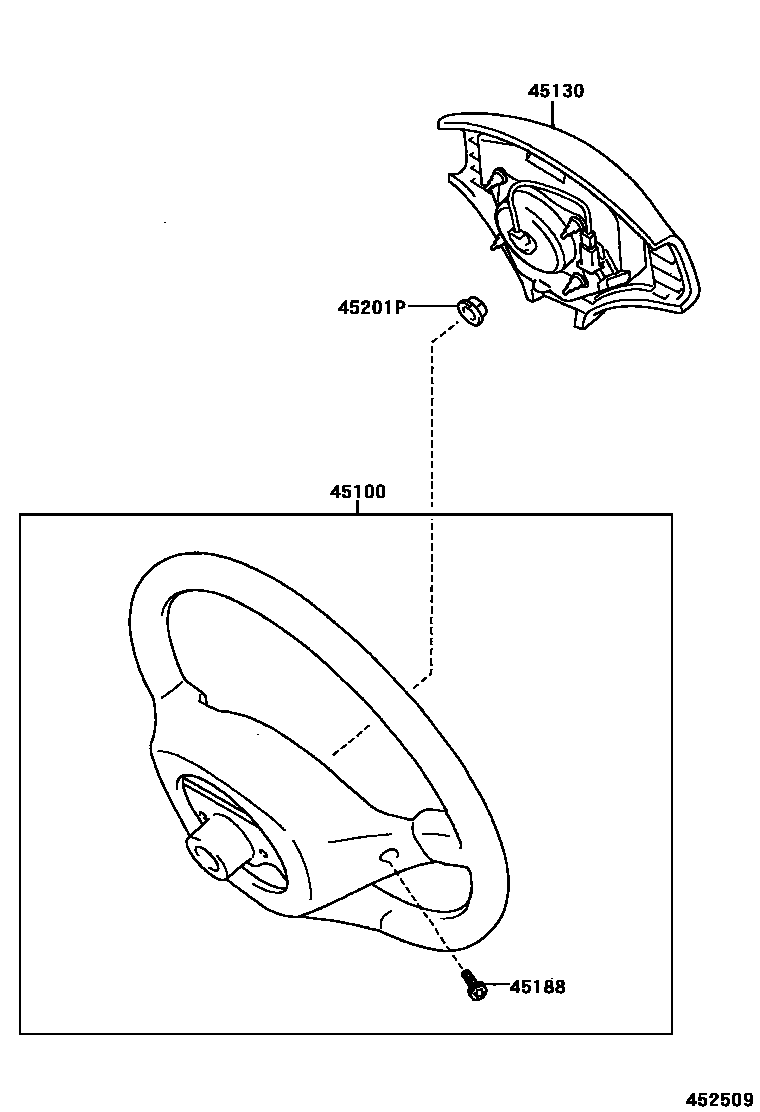

Parts diagram

45100WHEEL ASSY, STEERING

main45100-0D010-B2i200101-200302

3-SPOKE,URETHANE,MD.GRAY,TRIM1#

main45100-0D010-G1i200101-200302

3-SPOKE,URETHANE,MIST GREEN,TRIM7#

main45100-0D020-B1i200101-200302

3-SPOKE,LEATHER,MD.GRAY,TRIM1#

main45100-0D020-G0i200101-200302

3-SPOKE,LEATHER,MIST GREEN,TRIM7#

main45100-0D080-B0i200302

3-SPOKE,URETHANE,DK.GRAY,TRIM10,11

main45100-0D080-B0i200302

3-SPOKE,URETHANE,DK.GRAY,TRIM10,11,17,18,19

main45100-0D080-B0i200302-200401

3-SPOKE,URETHANE,DK.GRAY,TRIM10,11,17

main45100-0D080-B0i200401

3-SPOKE,URETHANE,DK.GRAY,TRIM10,11,17,18

main45100-0D090-B0i200302

3-SPOKE,LEATHER,DK.GRAY,TRIM10,11,17

main45100-0D090-B0i200302

3-SPOKE,LEATHER,DK.GRAY,TRIM10,11

main45100-0D120-B0i200308-200401

3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM10,11,17,18

main45100-0D120-B0i200308-200402

3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM1#

main45100-0D120-B1i200501

3-SPOKE,LEATHER,DK.GRAY & RED,TRIM19

45130BUTTON ASSY, HORN

main45130-0D030-B0i200101-200302

URETHANE,MD.GRAY,TRIM1#

main45130-0D030-G0i200101-200302

URETHANE,MIST GREEN,TRIM7#

main45130-0D040-B0i200101-200302

LEATHER,SHADOW GRAY,TRIM1#

main45130-0D040-H0i200101-200302

LEATHER,FRENCH TURQUOISE,TRIM7#

main45130-0D101-B0i200302

DK.GRAY,TRIM10,11,17,18,19

main45130-0D101-B0i200302

DK.GRAY,TRIM10,11

main45130-0D101-B0i200302-200401

DK.GRAY,TRIM10,11,17

main45130-0D101-B0i200401

DK.GRAY,TRIM10,11,17,18

45188SCREW, STEERING WHEEL PAD ATTACHING

main90080-14047i200101-200302

L=18.0

45201PNUT, STEERING WHEEL SET

main90179-12071i200101-200302

4 parts on this diagram · 1 diagram in section
