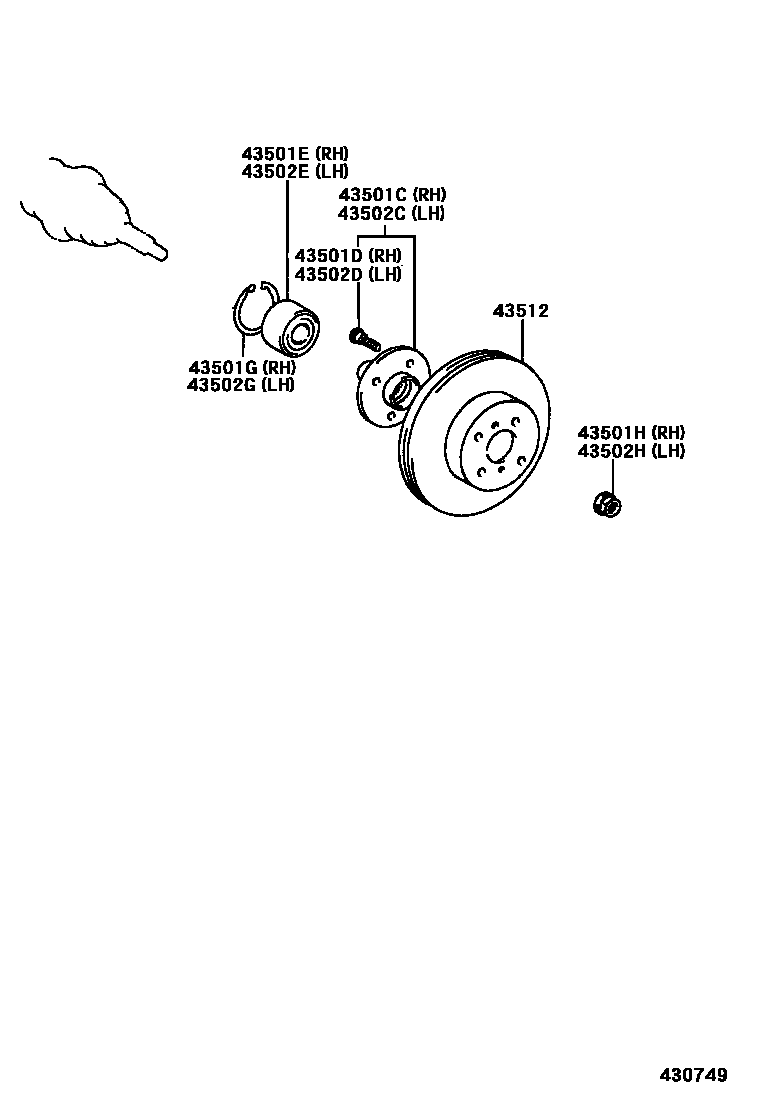

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D010iSCP1#200101-200302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iSCP1#200101-200302

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36108iSCP1#200101-200302

sub90369-38021

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iSCP1#200101-200302

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iSCP1#200101-200302

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D010iSCP1#200101-200302

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iSCP1#200101-200302

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36108iNLP10,SCP1#..FRP200101-200302

sub90369-38021

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iSCP1#200101-200302

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNLP10,SCP1#..FRP200101-200302

43512DISC, FRONT

main43512-0D010iSCP1#200101-200302

OD=235

main43512-0D050iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

(L),OD=255

main43512-52040iSCP1#200101-200302

OD=255

sub43512-52090

main43512-52040iNLP10,SCP1#..FRP..(SOL,TRSTD)200409

(J),OD=255

sub43512-52090

11 parts on this diagram · 1 diagram in section
