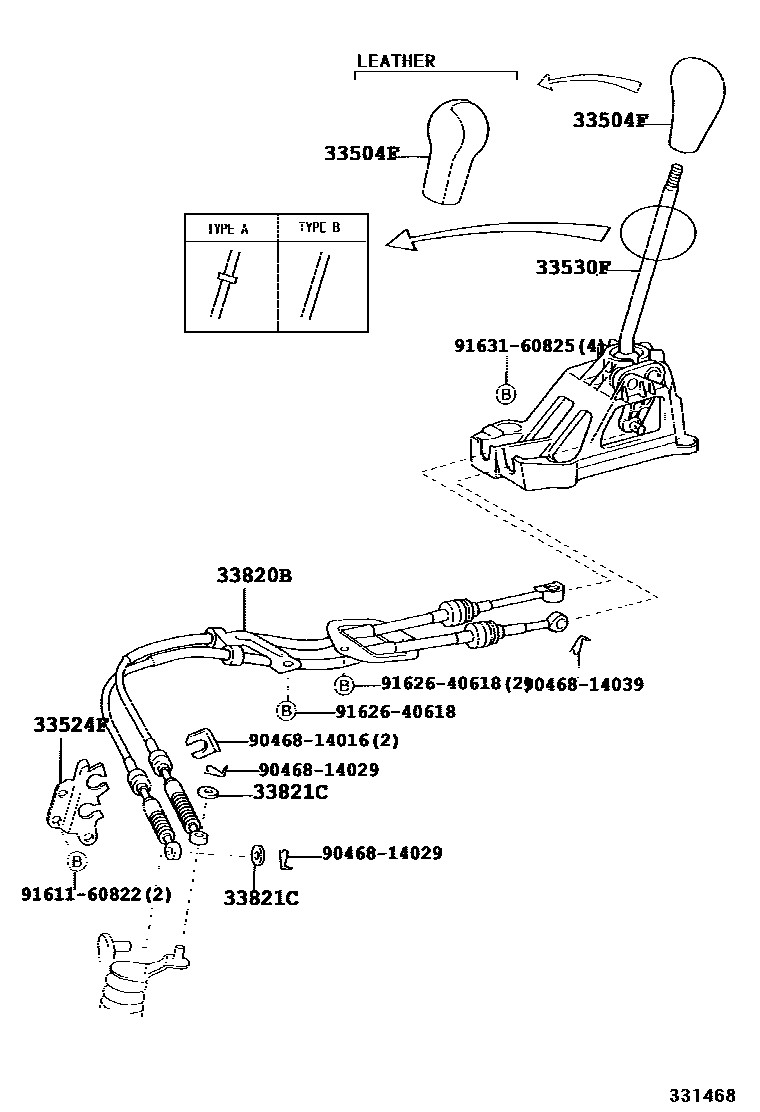

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02030-B0iNLP10,SCP1#..FRP..(TRSTD,TSGS)..5F200302

DK.GRAY,TRIM10,11,17,(L)

main33504-02060-B2iSCP12..FRP..TRSTD;NLP10..FRP..LHD..TRSTD200308-200311

ACM PACKAGE,DK.GRAY,TRIM10,11,17

main33504-02060-B2iNLP10,SCP1#..FRP..SOL..5F200302-200311

DK.GRAY,TRIM10,11

main33504-02090-B0iSCP10..FRP..TRSTD..5F200311

DK.GRAY,TRIM18,19

main33504-02090-B0iSCP12..FRP..TRSTD;NLP10..FRP..LHD..TRSTD200311

DK.GRAY,TRIM10,11

main33504-05010-B3iSCP1#..(SOL,TRSTD)..5F200101-200302

MD.GRAY,TRIM1#

main33504-05010-G0iSCP1#..(SOL,TRSTD)..5F200101-200302

MIST GREEN,TRIM7#

main33504-0D010-B0iSCP1#..(LUNA,SOL)..5F200101-200302

LEATHER,SHADOW GRAY,TRIM1#

main33504-0D010-H0iSCP1#..(LUNA,SOL)..5F200101-200302

LEATHER,FRENCH TURQUOISE,TRIM7#

main33504-13010-B0iNLP10,SCP1#..FRP..(TRSTD,TSGS)..5F200308

DK.GRAY,TRIM10,11,17,(J)

main33504-22170-B1iSCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17

main33504-22170-B1iSCP10..FRP..LHD..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main33504-22170-B1iSCP10..FRP..SOL..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main33542-52010-B2iSCP12..RHD..4FC200205-200302

MD.GRAY,TRIM1#

main33542-52010-B4iSCP12..FRP..RHD..4FC200302

DK.GRAY,TRIM10,11

main33542-52010-G0iSCP12..RHD..4FC200205-200302

MIST GREEN,TRIM7#

main33542-52020-B2iSCP12..LHD..4FC200205-200302

MD.GRAY,TRIM1#

main33542-52020-B3iSCP12..FRP..LHD..4FC200302

DK.GRAY,TRIM10,11

main33542-52020-G0iSCP12..LHD..4FC200205-200302

MIST GREEN,TRIM7#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52010iSCP12..5F200205-200302

main33524-52030iSCP10200101-200302

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D010iSCP1#..5F200101-200302

main33530-0D010iNLP10,SCP1#..FRP..(TRSTD,TSGS)..5F200302-200511

TYPE B:REFER ILLUST.

main33530-0D030iNLP10,SCP1#..FRP..SOL..5F200302-200511

TYPE A:REFER ILLUST.

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D010iSCP10..FRP..5F200101-200302

main33820-0D020iSCP12..5F200205-200302

main33820-0D100iNLP10..FRP..LHD200302

COLD SPEC

main33820-52270iSCP12..4FC200205-200302

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iSCP1#..5F200101-200302

OD=28

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9161160822

main91611-60822

9162640618

main91626-40618

9163160825

main91631-60825

11 parts on this diagram · 6 diagrams in section
