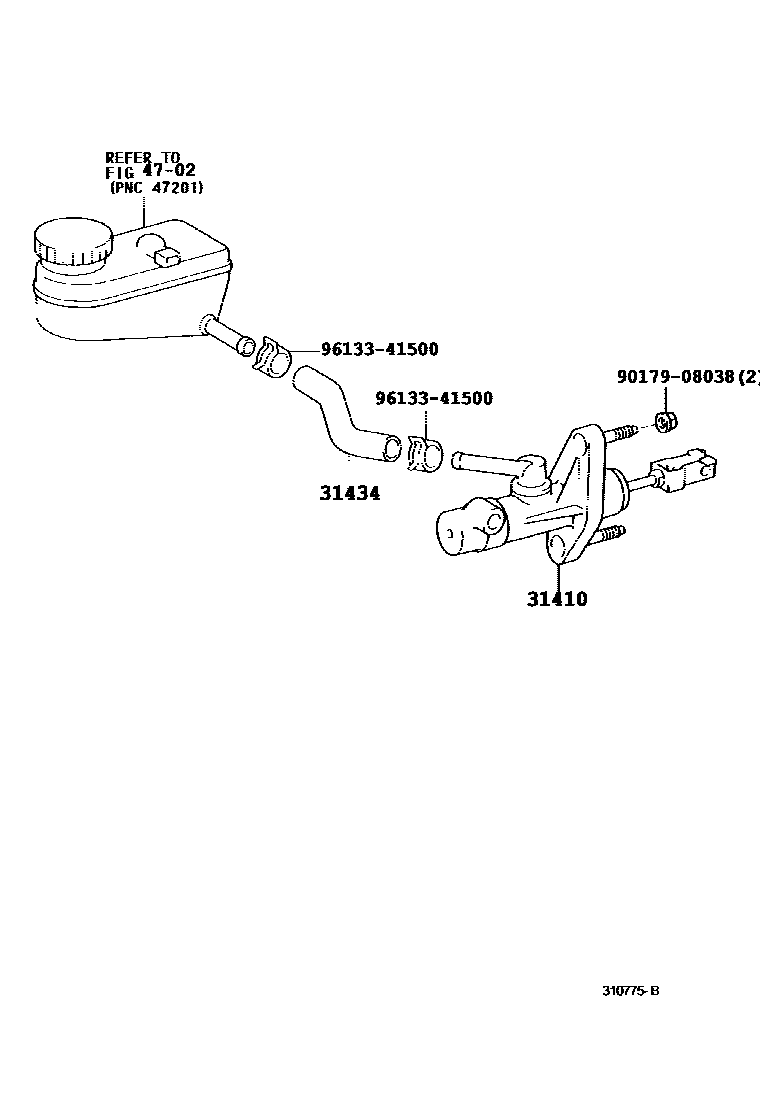

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D010iSCP10200101-200302

main31420-0D030iSCP12..5F200205-200302

main31420-0D040iNLP10..FRP200302

main31420-0D050iSCP10..FRP..5F200302

main31420-0D060iSCP12..FRP..5F200302

31434TUBE, CLUTCH RESERVOIR

main31434-52050iSCP1#..RHD..5F200101-200302

main31434-52060iSCP1#..LHD..5F200101-200302

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9613341500

main96133-41500

5 parts on this diagram · 1 diagram in section
