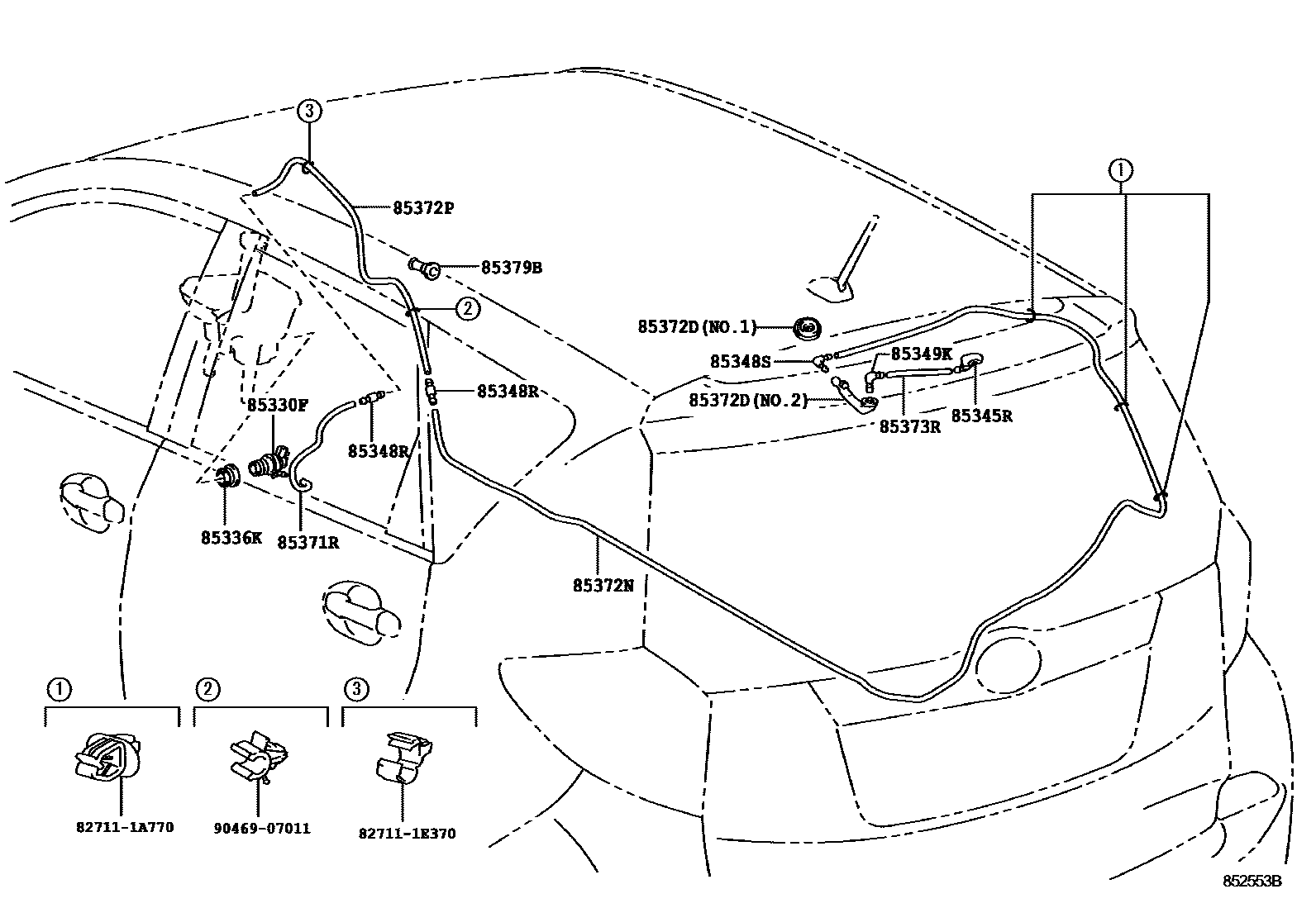

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85336KPROTECTOR, WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=330)
85372DGROMMET, REAR WASHER HOSE
NO.1
NO.2
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=3850
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=280)
85379BGROMMET, WASHER, A
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
9046907011
main90469-07011
15 parts on this diagram · 2 diagrams in section
