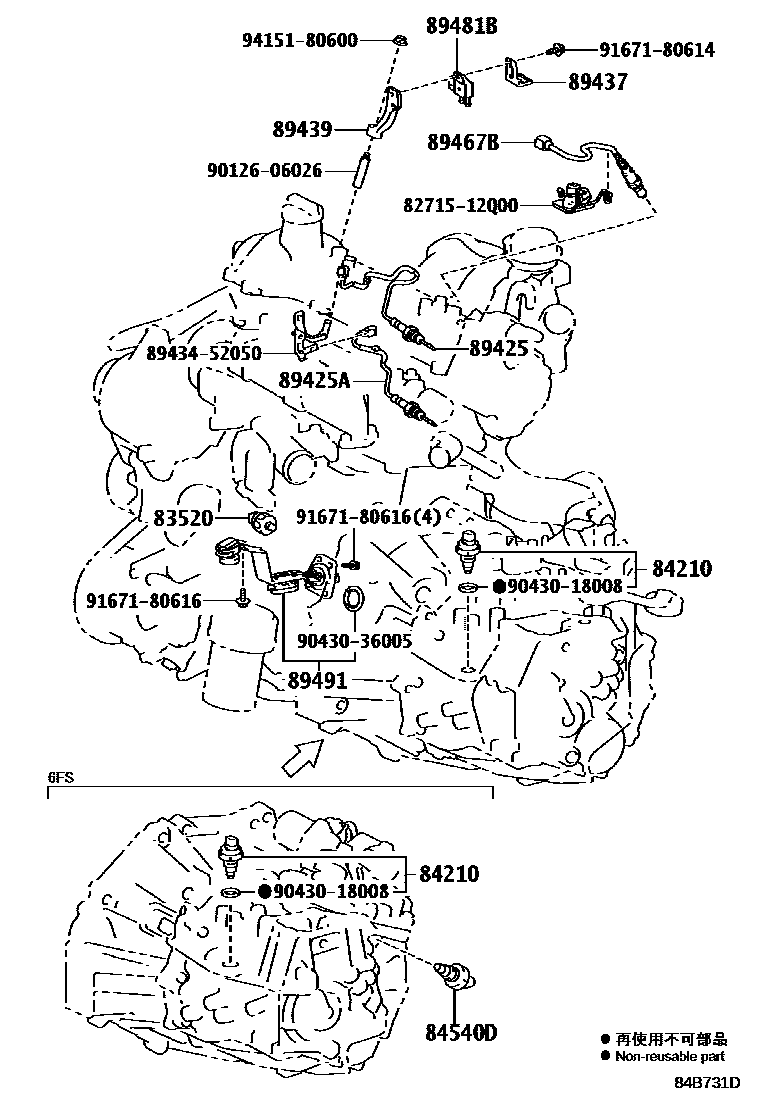

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1DOOR,ROOF,FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iNLP121201011-201504

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNLP121,NSP120..MTM201011-201204

sub84210-52050

main84210-52050iNLP121,NSP120..MTM201205-201504

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP120..CVT201011-201504

84540DSWITCH ASSY, NEUTRAL START

main84545-12010iNLP121..6FS201011-201405

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-52030iNLP121201011-201110

sub89425-52031

main89425-52031iNLP121201110-201504

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-52021iNLP121201011-201504

89437COVER, SENSOR

main89437-12110iNLP121201011-201504

89439BRACKET, SENSOR

main89439-52010iNLP121201011-201504

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNLP121201107-201405

(L)

main89467-02080iNLP121201405-201504

main89467-12130iNLP121201107-201405

(J)

main89467-12170iNLP121201011-201106

sub89467-12130

main89467-52110iNSP120201011-201504

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-12050iNLP121201011-201504

89491SENSOR, ENGINE OIL LEVEL

main89491-52050iNLP121201011-201112

sub89491-52051

main89491-52051iNLP121201112-201504

8271512Q00BRACKET,WIRING HARNESS CLAMP

main82715-12Q00

8943452050BRACKET, MANIFOLD TEMPERATURE SENSOR

main89434-52050

9012606026

main90126-06026

9043018008

main90430-18008

9043036005

main90430-36005

9167180614

main91671-80614

9167180616

main91671-80616

9415180600

main94151-80600

19 parts on this diagram · 11 diagrams in section
