INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#,4#
AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER,LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM2#,4#
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITH 6SPEAKER)COLOR:DARK GRAY,LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM2#,4#
HI GRADE (WITHOUT PANORAMA)&AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER,LT.GRAY,TRIM1#,2#,4#
81260CBULB(FOR MAP LAMP)
12V 8W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
8202
8401
8601

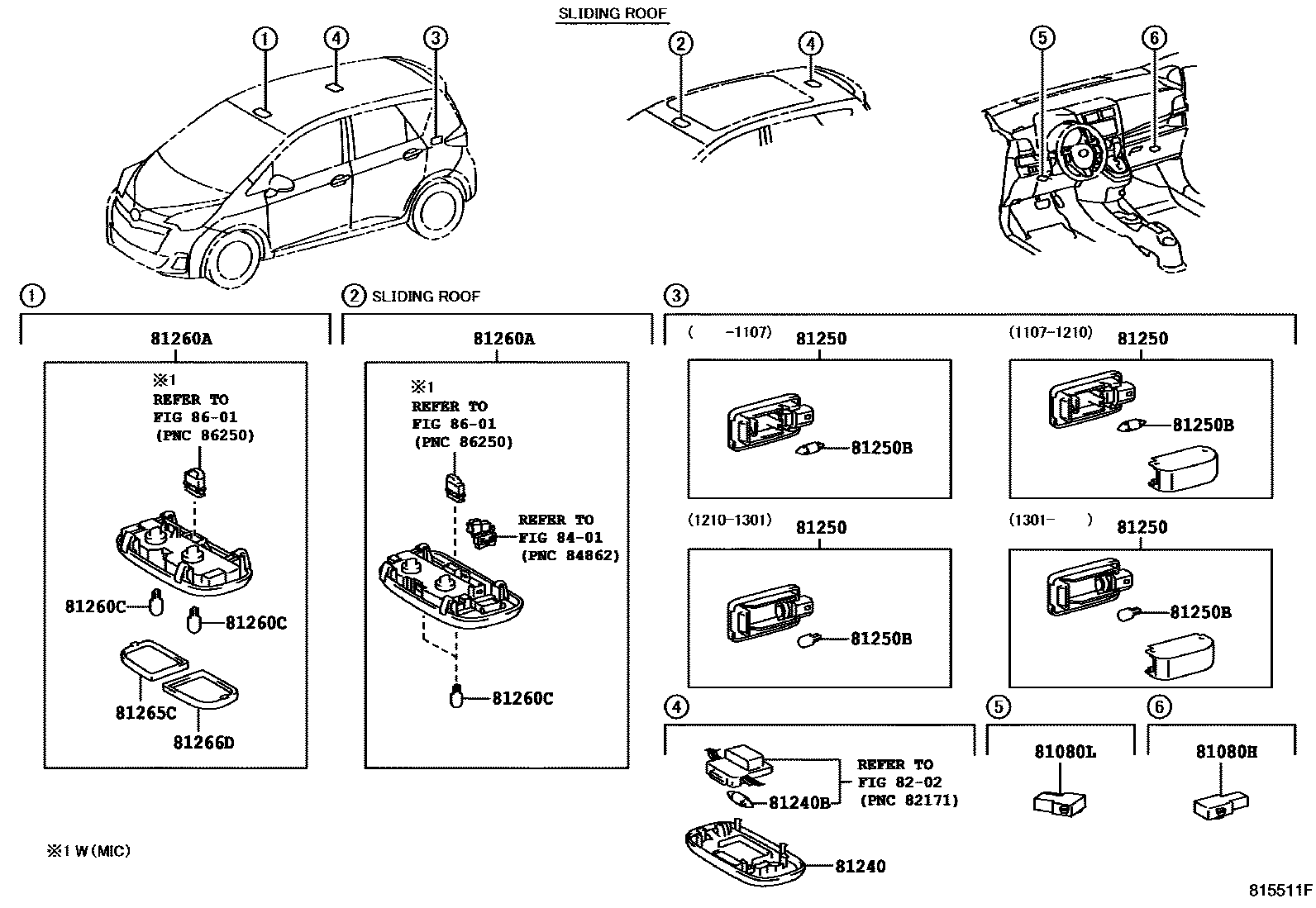

13 parts on this diagram · 2 diagrams in section
