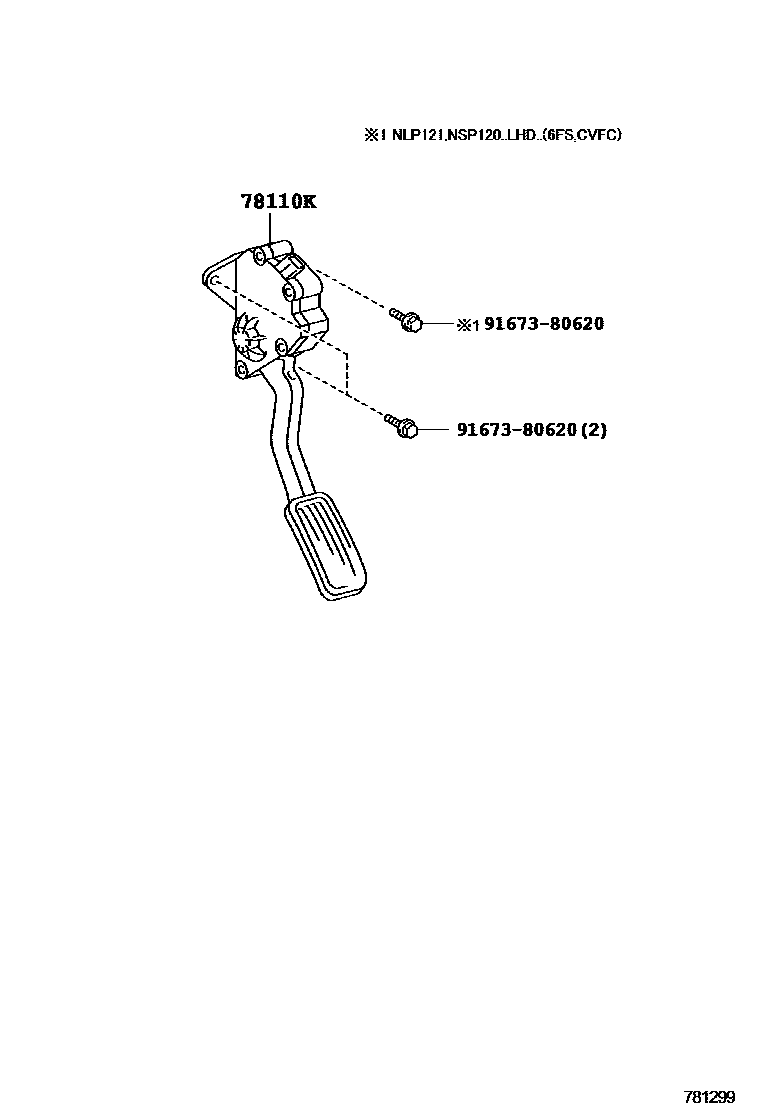

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033iNSP120..RHD201011-201212

sub78110-52100

main78110-52053iNLP121,NSP120..LHD..6F201011-201504

sub78110-52200

main78110-52063iNLP121..6FS;NSP120..LHD..CVT201011-201504

sub78110-52230

main78110-52100iNSP120..RHD201301-201504

sub78110-52210

9167380620

main91673-80620

2 parts on this diagram · 2 diagrams in section
