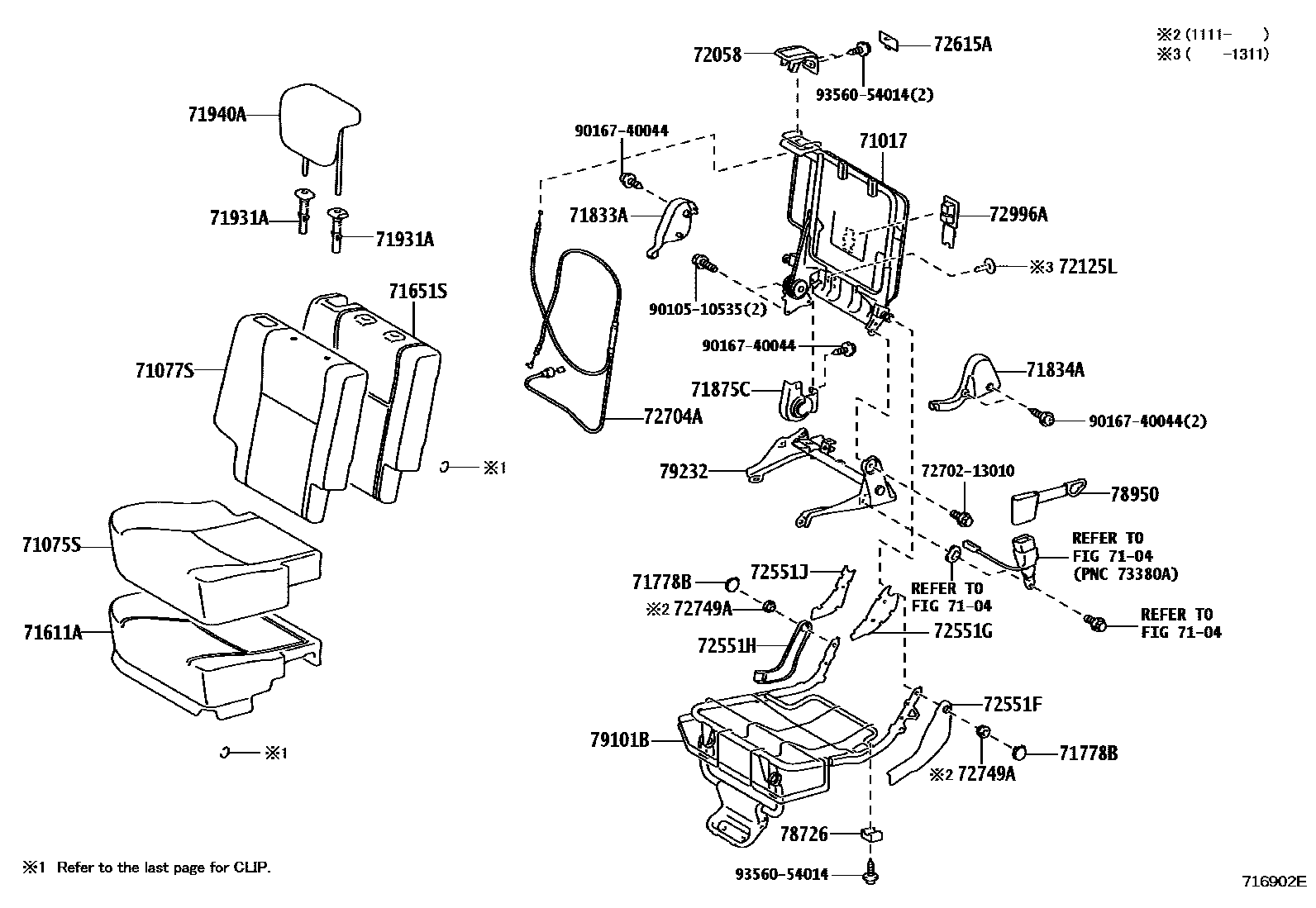

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104SEAT BELT & CHILD RESTRAINT SEAT
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
71611APAD, REAR SEAT CUSHION, RH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71778BCOVER, REAR SEAT SIDE HINGE MALE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
71834ACOVER, REAR SEAT RECLINING, NO.1 LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),SHELL,TRIM40
W(LOCK),BLACK,TRIM2#,4#
W(LOCK),BLACK,TRIM2#
W(LOCK),HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W(LOCK),HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W(LOCK),BLACK,TRIM1#,2#,40
W(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W/O(LOCK),SHELL,TRIM40
W/O(LOCK),HI GRADE (WITHOUT PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM1#,2#,40
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W/O(LOCK),HI GRADE(WITH/PANORAMA)&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#,4#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
ENTRY GRADE&SEAT COVER MATERIAL-FABRIC-LOW GRADE,BLACK,TRIM2#
DK.GRAY,TRIM2#,4#
DK.GRAY,TRIM2#
DK.GRAY,TRIM1#,2#
BEIGE,TRIM4#
72058LEVER SUB-ASSY, REAR SEAT LOCK CONTROL
SHELL,TRIM40
BLACK,TRIM2#
BLACK,TRIM1#,2#,40,44
BLACK,TRIM1#,2#,40
BLACK,TRIM2#,4#
72125LRETAINER, REAR SEATBACK PAD
72551FCOVER, RECLINING LINK, RH NO.1
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
72551GCOVER, RECLINING LINK, RH NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
72551HCOVER, RECLINING LINK, RH NO.3
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
72551JCOVER, RECLINING LINK, RH NO.4
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
SHELL,TRIM40
BLACK,TRIM2#
BLACK,TRIM1#,2#,40
BLACK,TRIM1#,2#,40,44
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
72704ACABLE, REAR SEAT RECLINING CONTROL
72749ASPACER, REAR SEAT RECLINING
72996ACOVER, REAR SEATBACK
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
78726CUSHION, SUB SEAT CUSHION FRAME
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79232LEG, REAR NO.2 SEAT, RH
7270213010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-13010
9010510535
main90105-10535
9016740044
main90167-40044
9356054014
main93560-54014
30 parts on this diagram · 7 diagrams in section
