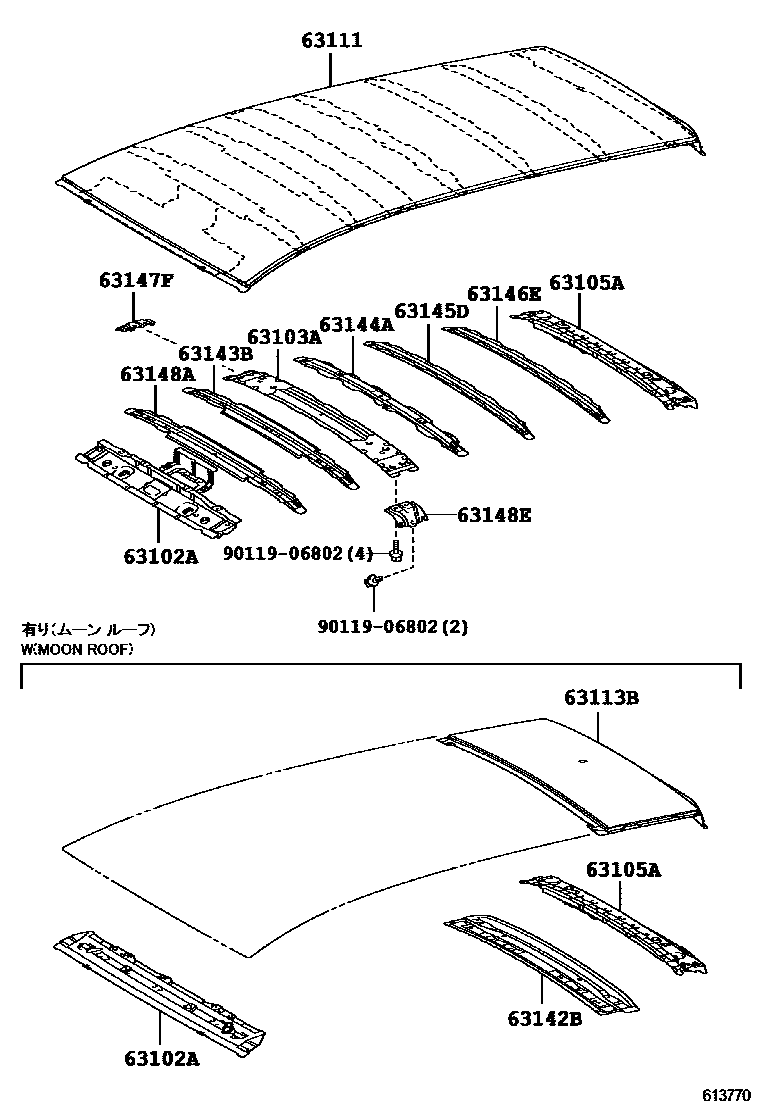

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52160iNLP121,NSP120201011-201405

main63102-52170iNLP121,NSP120..LUNA201011-201405

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52090iNLP121,NSP120201405-201504

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52140iNLP121,NSP120201011-201405

63111PANEL, ROOF

main63111-52270iNLP121,NSP120201011-201405

63113BPANEL, ROOF, REAR

main63113-52030iNLP121,NSP120..LUNA201011-201405

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-52080iNLP121,NSP120..LUNA201011-201405

MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52150iNLP121,NSP120201011-201405

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52050iNLP121,NSP120201011-201405

63145DBRACKET, ROOF REINFORCEMENT

main63145-52040iNLP121,NSP120201011-201405

63146EBRACKET, ROOF REINFORCEMENT, NO.2

main63146-52060iNLP121,NSP120201011-201405

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52080iNLP121,NSP120201011-201405

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52110iNLP121,NSP120201011-201405

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52080iNLP121,NSP120201011-201405

9011906802

main90119-06802

14 parts on this diagram · 2 diagrams in section
