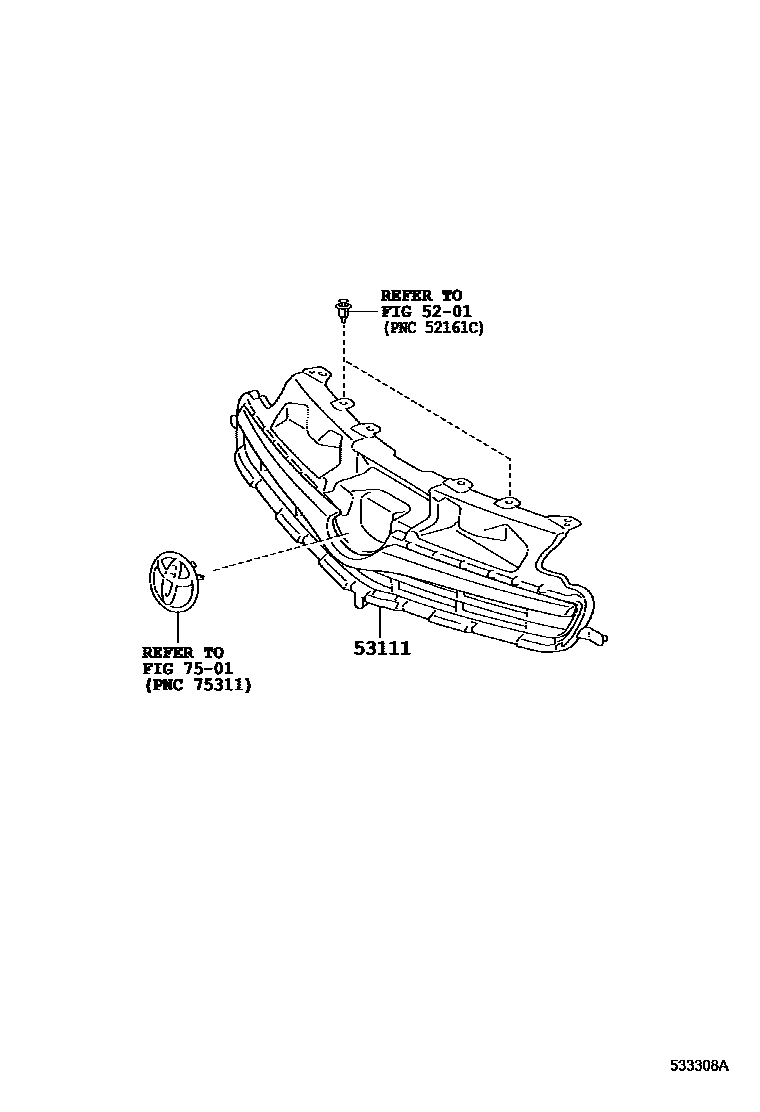

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53101-52280iNLP121,NSP120201011-201405

PLATED

main53101-52450iNLP121,NSP120201405-201504

NO PAINT REQ.

main53101-52320iNSP120..LHD; NSP120..LHD..LUNA201011-201212

PLATED,RUSSIA SPEC; PLATED,RUSSIA SPEC&FRONT FOG LAMP-WITHOUT

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

3 parts on this diagram · 2 diagrams in section
