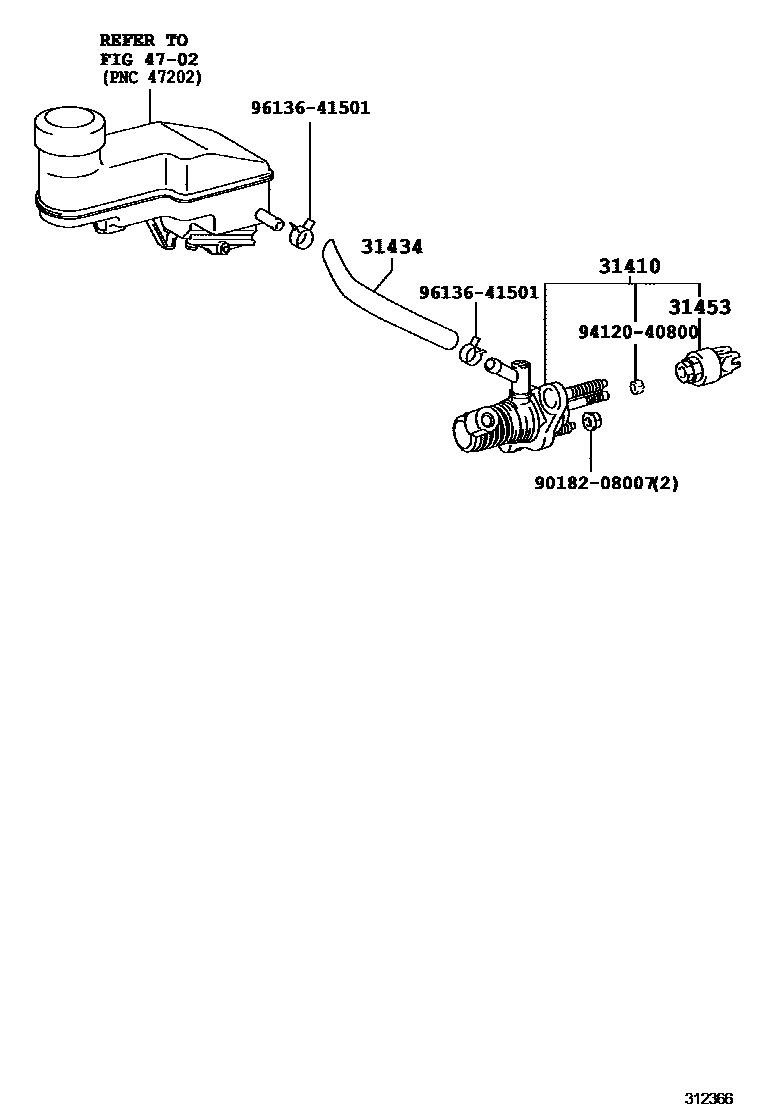

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52060iNSP120..RHD..6F201011-201405

main31420-52070iNLP121,NSP120..LHD..6F201011-201405

sub31420-52071

31434TUBE, CLUTCH RESERVOIR

main31434-52230iNLP121,NSP120..LHD..6F201405-201504

main31434-52240iNSP120..RHD..6F201011-201405

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iNLP121,NSP120..LHD..6F201011-201405

sub31404-26021

main31404-52010iNSP120..RHD..6F201011-201405

4702

9018208007

main90182-08007

9412040800

main94120-40800

9613641501

main96136-41501

7 parts on this diagram · 2 diagrams in section
