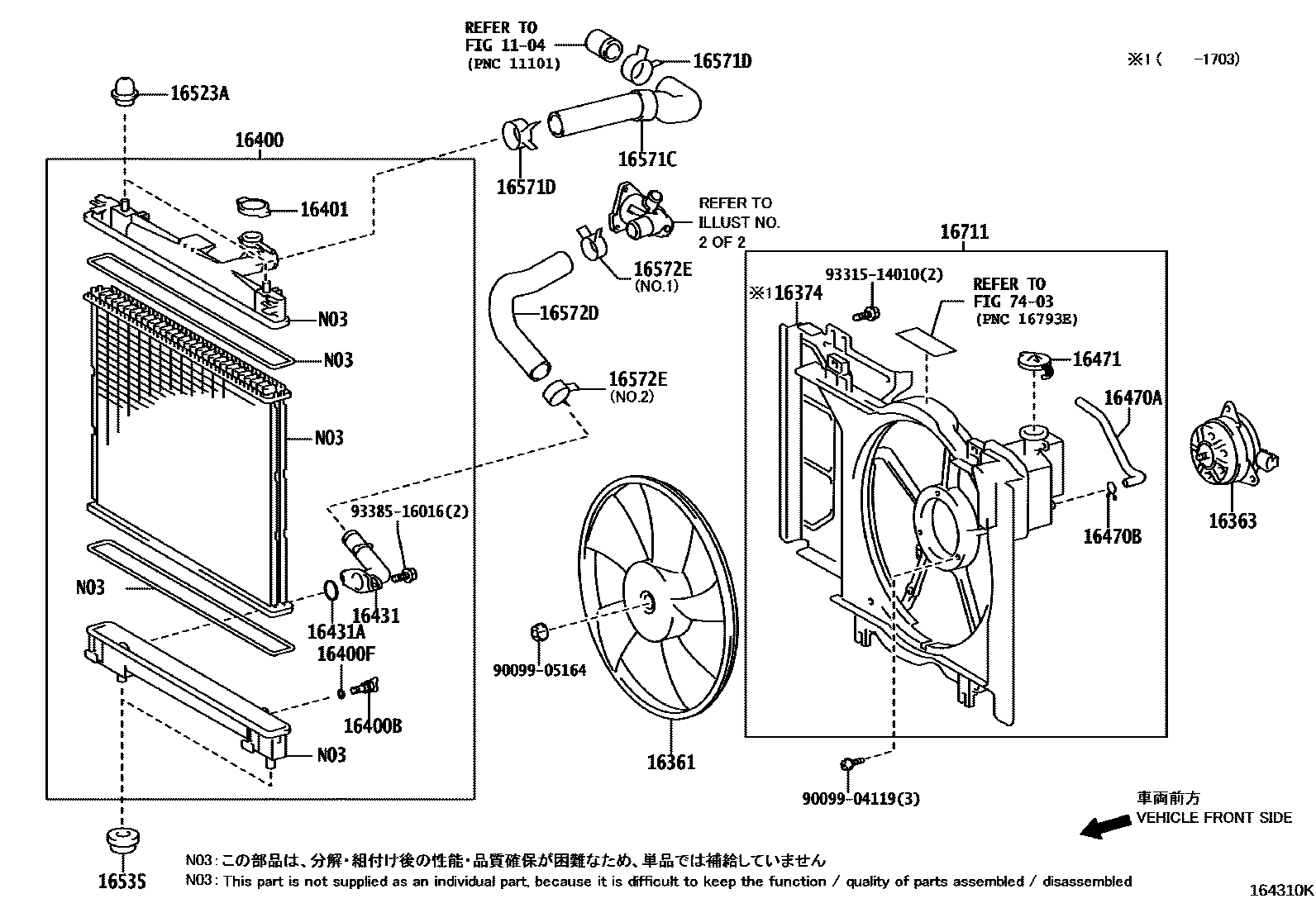

RADIATOR & WATER OUTLET
1104
16363MOTOR, COOLING FAN
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-36020
16431INLET, RADIATOR WATER
16431ARING, O(FOR RADIATOR WATER INLET)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
MARK=B1
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
NO.2T/P A:REF.ILLUST
NO.2T/P B:REF.ILLUST
7403
9009904119
main90099-04119
9009905164
main90099-05164
9331514010
main93315-14010
9338516016
main93385-16016
26 parts on this diagram · 5 diagrams in section
