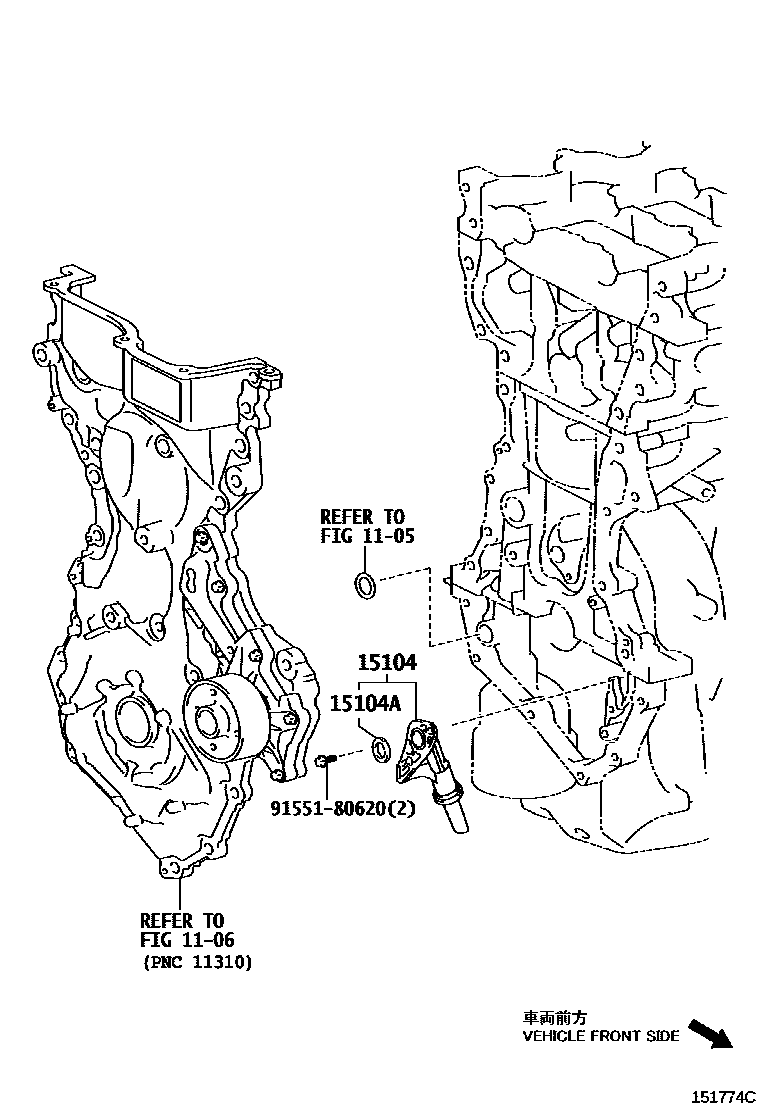

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-47040i1NRFE..NSP120201011-201405

15104ARING, O(FOR OIL STRAINER)

main90301-22018i1NRFE..NSP120201011-201405

9155180620

main91551-80620

5 parts on this diagram · 2 diagrams in section
