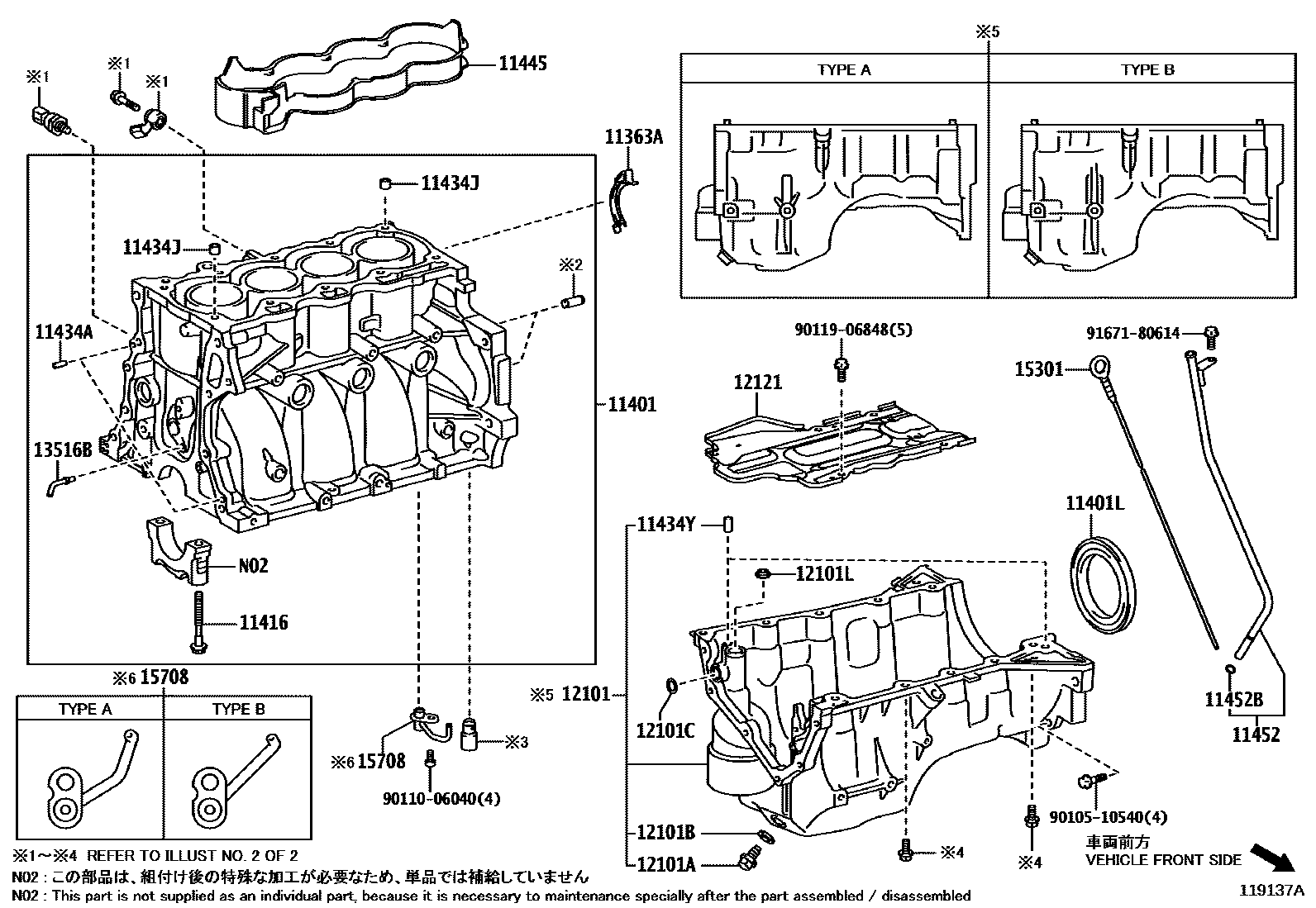

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
L=18,OD=8
11445SPACER, CYLINDER BLOCK WATER JACKET
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12101LGASKET NO.1(FOR OIL PAN)
12121PLATE, OIL PAN BAFFLE, NO.1
15301GAGE SUB-ASSY, OIL LEVEL
9010510540
main90105-10540
9011006040
main90110-06040
9011906848
main90119-06848
9167180614
main91671-80614
23 parts on this diagram · 4 diagrams in section
