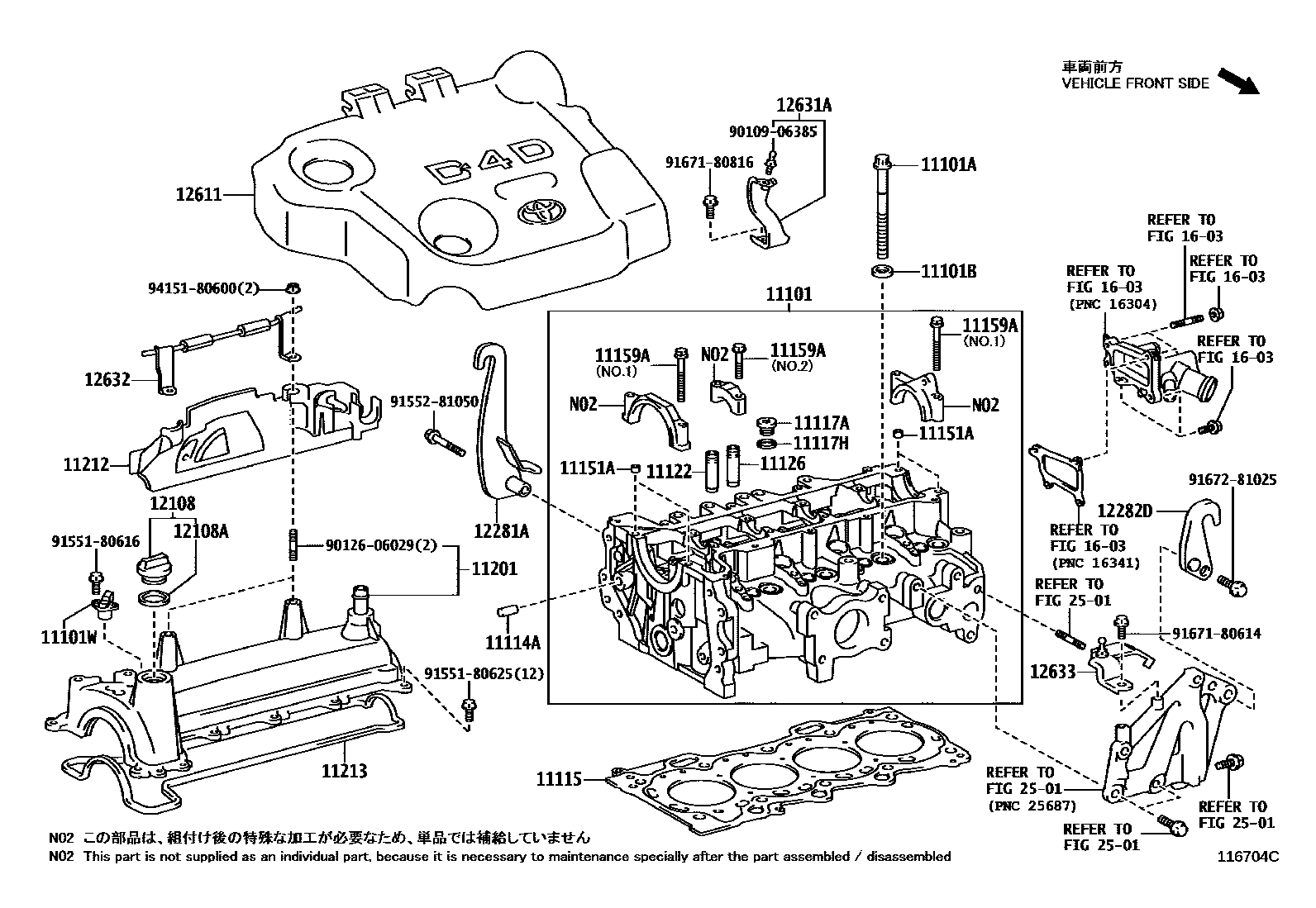

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101WSENSOR, CRANK POSITION, NO.1
11114APIN, STRAIGHT
L=36,OD=10
11115GASKET, CYLINDER HEAD
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=10,OD=8
L=12.5,OD=8
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
NO.2
11212COVER, CYLINDER HEAD, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12611COVER, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
12632BRACKET, ENGINE COVER, NO.2
12633BRACKET, ENGINE COVER, NO.3
1603
2501
9010906385
main90109-06385
9012606029
main90126-06029
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180614
main91671-80614
9167180816
main91671-80816
9167281025
main91672-81025
9415180600
main94151-80600
34 parts on this diagram · 4 diagrams in section
