ENGINE OVERHAUL GASKET KIT

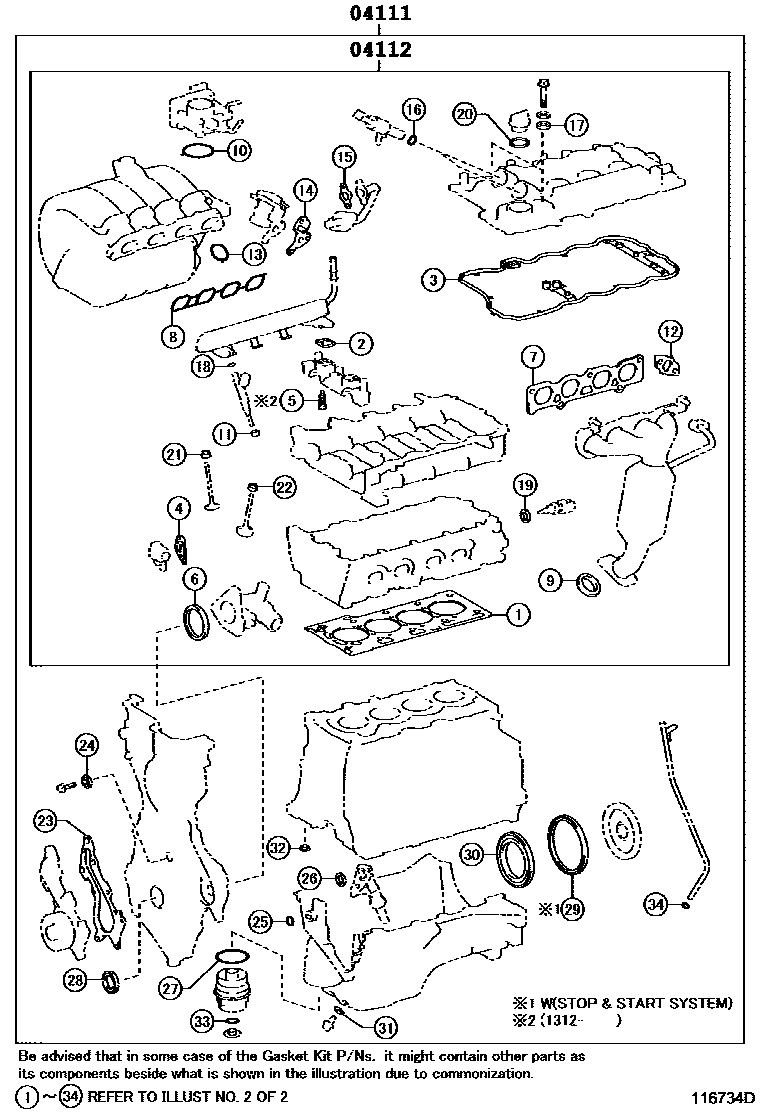

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-33180i201011-201209
sub04111-33181
main04111-33181i201209-201407
sub04111-33182
main04111-33182i201407-201504
main04111-47054i201011-201111
sub04111-47055
main04111-47055i201111-201205
sub04111-47056
main04111-47056i201205-201303
sub04111-47057
main04111-47057i201303-201312
main04111-47170i201312-201504
04112GASKET KIT, ENGINE VALVE GRIND
main04112-33180i201011-201209
sub04112-33181
main04112-33181i201209-201407
sub04112-33182
main04112-33182i201407-201504
main04112-47044i201011-201111
sub04112-47045
main04112-47045i201111-201205
sub04112-47046
main04112-47046i201205-201312
main04112-47120i201312-201504

2 parts on this diagram · 4 diagrams in section
