SHORT BLOCK ASSEMBLY

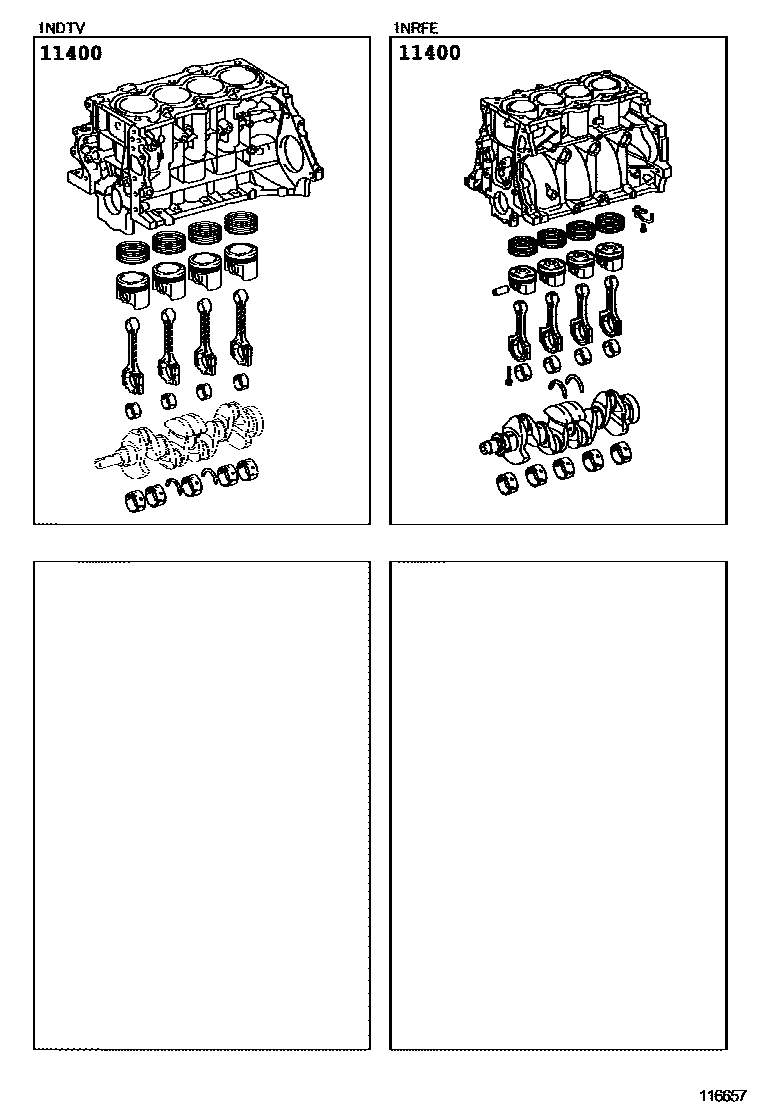

Parts diagram

11400BLOCK ASSY, SHORT

main11400-33160i201011-201205

main11400-33161i201205-201212

main11400-33170i201212-201405

main11400-47090i201011-201301

main11400-47091i201301-201310

main11400-47140i201310-201405

1 parts on this diagram · 1 diagram in section
