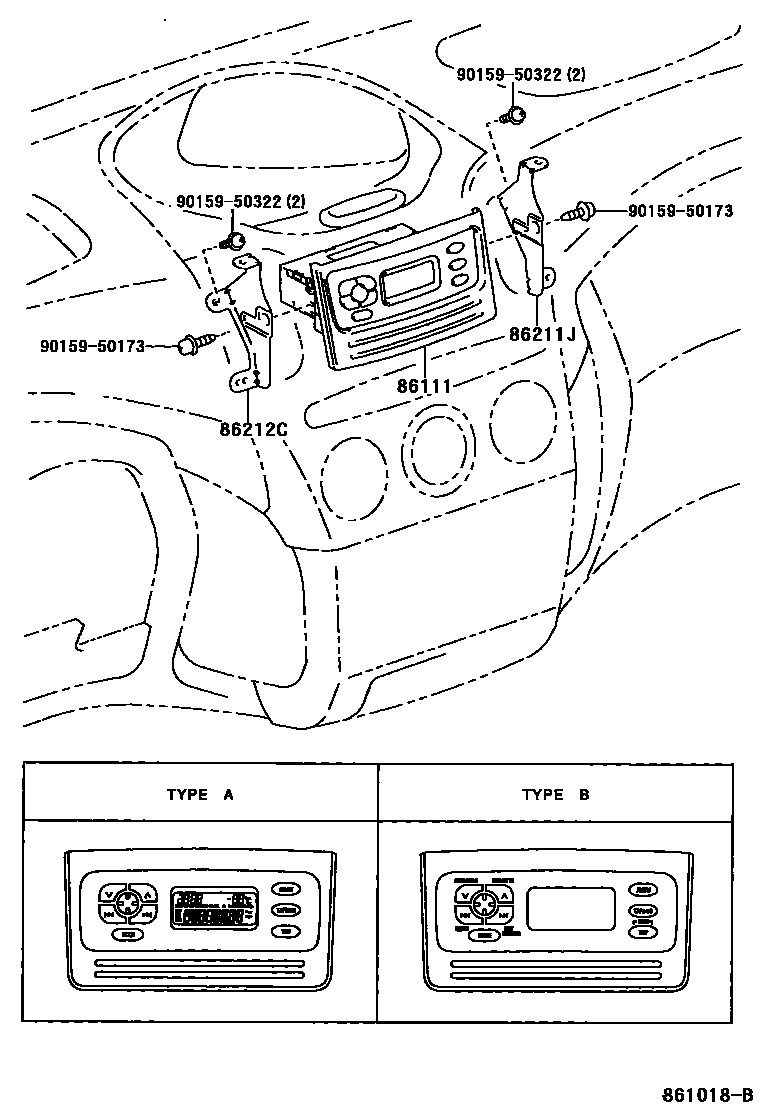

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86111MULTI-DISPLAY

main86111-52010-C0iNCP2#199908-200110

PANASONIC,TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9#

main86111-52010-H0iNCP2#199908-200110

PANASONIC,TYPE B:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7#

main86111-52011-C0iNCP2#,NLP2#200110-200211

PANASONIC,TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM9#

main86111-52011-H0iNCP2#,NLP2#200110-200211

PANASONIC,TYPE B:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7#

main86111-52020-C0iNCP2#199908-200110

PANASONIC,TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM9#

main86111-52020-H0iNCP2#199908-200110

PANASONIC,TYPE A:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7#

main86111-52021-C0iNCP2#,NLP2#200110-200211

PANASONIC,TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM9#

main86111-52021-H0iNCP2#,NLP2#200110-200211

PANASONIC,TYPE A:REFER TO ILLUSTRATION,DARK TORQUOISE,TRIM7#

main86111-52030-B0iNCP2#,NLP2#200211-200509

PANASONIC,TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#

main86111-52040-B0iNCP2#,NLP2#200211-200509

PANASONIC,TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-52050iNCP2#,NLP2#199908-200211

main86211-52051iNCP2#,NLP2#200211-200509

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-52050iNCP2#,NLP2#199908-200211

main86212-52051iNCP2#,NLP2#200211-200509

9015950173

main90159-50173

9015950322

main90159-50322

5 parts on this diagram · 2 diagrams in section
