WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CONNECTOR

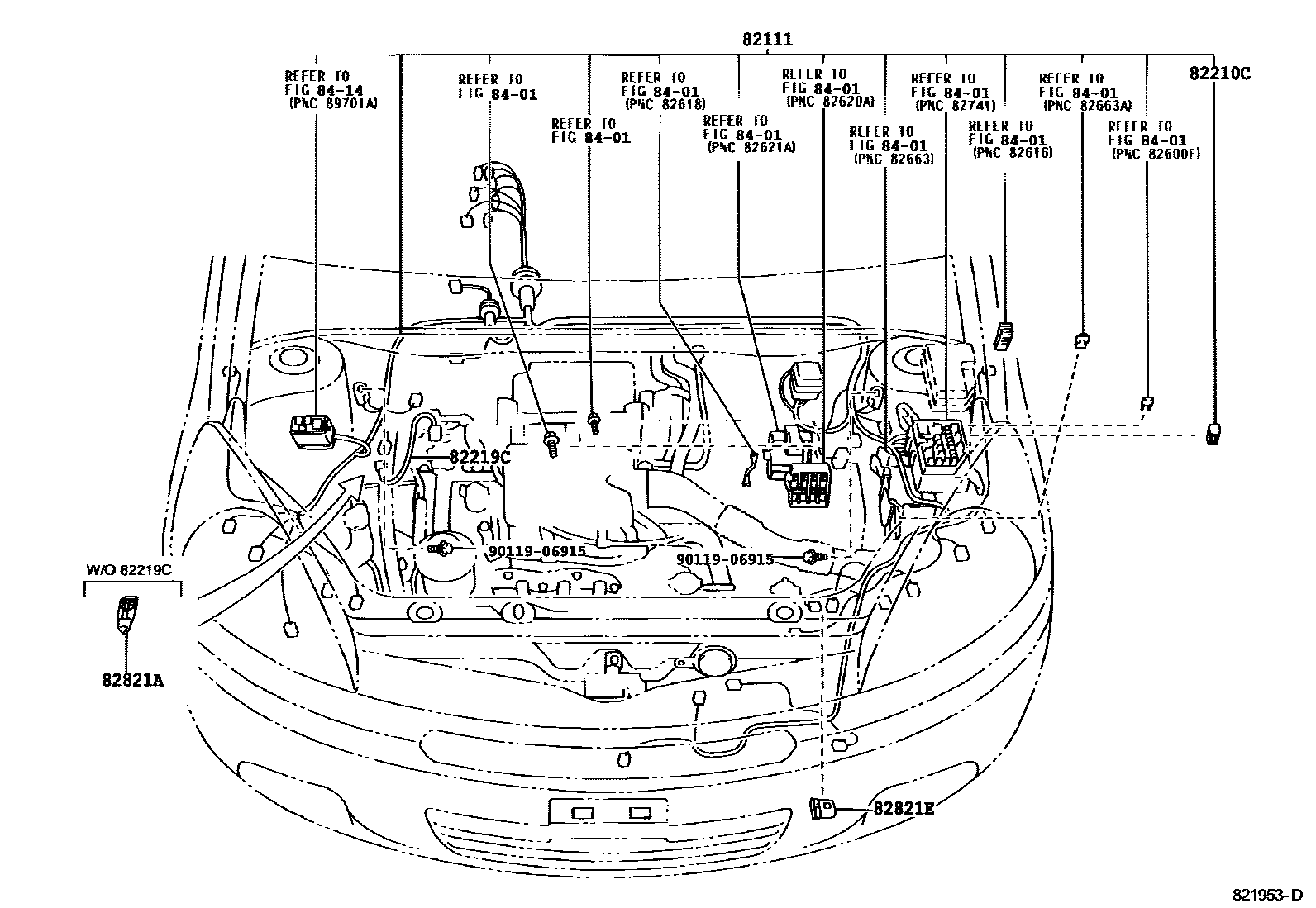

82111WIRE, ENGINE ROOM MAIN

main82111-52330iNCP20..LHD199908-199912

W(ABS & MANUAL AIR CONDITIONER)

main82111-52331iNCP2#..LHD199912-200004

W(ABS & MANUAL AIR CONDITIONER)

main82111-52332iNCP2#..LHD200004-200012

W(ABS & AIR CONDITIONER)

main82111-52333iNCP2#..LHD200012-200105

W(ABS & AIR CONDITIONER)

main82111-52334iNCP2#..LHD200105-200211

W(ABS & AIR CONDITIONER)

main82111-52340iNCP20..LHD199908-199912

COLD SPEC & W(DAYTIME RUNNING LIGHT)

main82111-52341iNCP2#..LHD199912-200012

COLD SPEC & W(DAYTIME RUNNING LIGHT)

main82111-52342iNCP2#..LHD200012-200105

COLD SPEC & W(DAYTIME RUNNING LIGHT)

main82111-52343iNCP2#..LHD200105-200211

COLD SPEC & W(DAYTIME RUNNING LIGHT)

main82111-52350iNCP20..LHD199908-199912

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-52351iNCP2#..LHD199912-200012

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-52352iNCP2#..LHD200012-200105

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-52353iNCP2#..LHD200105-200211

COLD SPEC & W(ABS & DAYTIME RUNNING LIGHT)

main82111-52390iNCP20..RHD199908-199912

main82111-52391iNCP2#..RHD199912-200008

main82111-52400iNCP20..RHD199908-199912

W(MANUAL AIR CONDITIONER)

main82111-52401iNCP2#..RHD199912-200004

W(MANUAL AIR CONDITIONER)

main82111-52403iNCP2#..RHD200004-200008

W(AIR CONDITIONER)

main82111-52404iNCP2#..RHD..(4FC,5F)200012-200211

main82111-52410iNCP20..RHD199908-199912

W(ABS)

main82111-52411iNCP2#..RHD199912-200008

W(ABS)

main82111-52420iNCP20..RHD199908-199912

W(ABS & MANUAL AIR CONDITIONER)

main82111-52421iNCP2#..RHD199912-200004

W(ABS & MANUAL AIR CONDITIONER)

main82111-52423iNCP2#..RHD..(4FC,5F)200008-200012

W(ABS)

main82111-52424iNCP2#..RHD..(4FC,5F)200012-200211

W(ABS)

main82111-52430iNCP20..LHD..LUNA199908-199912

main82111-52431iNCP2#..LHD..(LUNA,STD)199912-200012

main82111-52432iNCP2#..LHD..(LUNA,STD)200012-200211

main82111-52440iNCP20..LHD..LUNA; NCP20..LHD..SOL199908-199912

COLD SPEC OR W(ACCESSORY CONNECTOR(NO.1) OR W(FOG LAMP)

main82111-52441iNCP20,21..LHD..SOL; NCP20..LHD..LUNA199912-200012

COLD SPEC OR W(ACCESSORY CONNECTOR(NO.1) OR W(FOG LAMP)

main82111-52442iNCP2#..LHD..(LUNA,STD); NCP20,21..LHD..SOL200012-200105

COLD SPEC OR W(ACCESSORY CONNECTOR(NO.1) OR W(FOG LAMP)

main82111-52443iNCP2#..LHD200105-200211

COLD SPEC OR W(ACCESSORY CONNECTOR(NO.1) OR W(FOG LAMP)

main82111-52450iNCP20..LHD199908-199912

W(MANUAL AIR CONDITIONER)

main82111-52451iNCP2#..LHD199912-200004

W(MANUAL AIR CONDITIONER)

main82111-52452iNCP2#..LHD200004-200012

W(AIR CONDITIONER)

main82111-52453iNCP2#..LHD200012-200105

W(AIR CONDITIONER)

main82111-52454iNCP2#..LHD200105-200211

W(AIR CONDITIONER)

main82111-52460iNCP20..LHD199908-199912

W(ABS)

main82111-52461iNCP2#..LHD199912-200012

W(ABS)

main82111-52462iNCP2#..LHD200012-200105

W(ABS)

main82111-52463iNCP2#..LHD200105-200211

W(ABS)

main82111-5C570iNCP2#..RHD..(4FC,5F)200211-200212

main82111-5C580iNCP2#..RHD..(4FC,5F)200211-200509

W(ABS)

main82111-5C590iNCP21..RHD200211-200305

W(VSC)

main82111-5C591iNCP21..RHD200305-200509

W(VSC)

main82111-5C600iNCP20..4HC200211-200509

main82111-5C630iNCP2#..LHD200211-200212

main82111-5C660iNCP2#..LHD200211-200509

W(ABS)

main82111-5C670iNCP21..LHD200211-200305

W(VSC)

main82111-5C671iNCP21..LHD200305-200509

W(VSC)

main82111-5C690iNLP2#..LHD200211-200212

main82111-5C700iNLP2#..LHD200211-200509

W(ABS)

main82111-5C710iNLP2#..LHD200211-200212

W(STOVE HEATER)

main82111-5C720iNLP2#..LHD200211-200509

W(ABS & STOVE HEATER)

main82111-5C730iNLP2#..RHD200211-200212

main82111-5C740iNLP2#..RHD200211-200509

W(ABS)

main82111-5C780iNCP2#..LHD200211-200212

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-5C790iNCP2#..LHD200211-200509

W(ABS & DAY TIME RUNNING LIGHT SYSTEM)

main82111-5C800iNCP21..LHD200211-200306

W(DAY TIME RUNNING LIGHT SYSTEM & VSC)

main82111-5C801iNCP21..LHD200306-200509

W(DAY TIME RUNNING LIGHT SYSTEM & VSC)

main82111-5C830iNLP2#..LHD200211-200212

W(DAY TIME RUNNING LIGHT SYSTEM & STOVE HEAETER)

main82111-5C840iNLP2#..LHD200211-200509

W(ABS & DAY TIME RUNNING LIGHT SYSTEM & STOVE HEATER)

main82115-52030iNCP20..4HC200008-200012

main82115-52031iNCP20..4HC200012-200211

main82115-52170iNLP2#..LHD200110-200206

main82115-52171iNLP2#..LHD200206-200211

main82115-52180iNLP2#..LHD200110-200211

W(PTC HEATER)

main82115-52190iNLP2#..LHD200110-200211

W(ABS & PTC HEATER)

main82115-52200iNLP2#..LHD200110-200211

W(STOVE HEATER)

main82115-52210iNLP2#..LHD200110-200211

W(ABS & STOVE HEATER)

main82115-52220iNLP2#..LHD200110-200211

W(DAY TIME RUNNING LIGHT SYSTEM & STOVE HEAETER)

main82115-52230iNLP2#..LHD200110-200211

W(ABS & DAY TIME RUNNING LIGHT SYSTEM & STOVE HEATER)

main82115-52240iNLP2#..RHD200110-200206

main82115-52241iNLP2#..RHD200206-200211

main82115-52250iNLP2#..RHD200110-200206

W(ABS)

main82115-52251iNLP2#..RHD200206-200211

W(ABS)

82210CFUSIBLE LINK

main90982-08202iNCP20..4HC;NCP21..RHD200211-200509

60A,TERM.:MALE,YEL

main90982-08254iNCP21..LHD;NCP20,22..4FC,5F200212-200509

120A,TERM.:MALE,WHT

main90982-08283iNCP2#,NLP2#199908-200211

30A,TERM.:FEMALE,PNK

main90982-08284iNCP2#,NLP2#199908-200211

40A,TERM.:FEMALE,GRN

main90982-08285iNCP2#,NLP2#199908-200211

50A,FEMALE,RED,32VDC

82219CWIRE, SENSOR

main82219-52020iNCP2#199908-200211

82821ACOVER, CONNECTOR

main82821-22120iNCP2#..LUNA,STD199908-200211

82821ECOVER, CONNECTOR

main82821-10050iNCP2#,NLP2#200004-200211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

8 parts on this diagram · 13 diagrams in section
