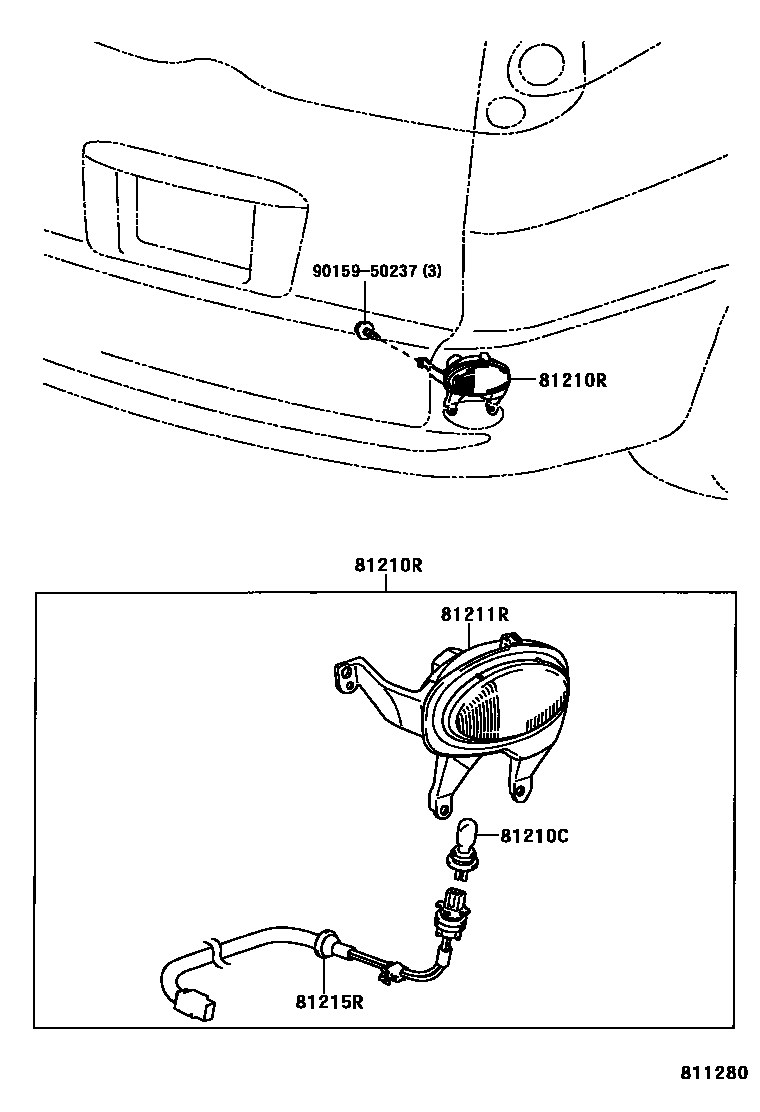

REAR FOG LAMP

0001 1 0002 1 0003 1

81210CBULB, REAR FOG LAMP

main90981-13043iNCP2#,NLP2#200211-200509

12V 21W

81210RLAMP ASSY, REAR FOG

main81580-52010iNCP2#,NLP2#..RHD199908-200211

main81580-52090iNCP2#,NLP2#..RHD200211-200509

RH

main81580-52100iNCP2#,NLP2#..LHD200211-200509

RH

main81590-52010iNCP2#,NLP2#..LHD199908-200211

main81590-52030iNCP2#,NLP2#..RHD200211-200509

LH

main81590-52040iNCP2#,NLP2#..LHD200211-200509

LH

81211RLENS, REAR FOG LAMP

main81581-52010iNCP2#,NLP2#..RHD199908-200211

main81581-52090iNCP2#,NLP2#..RHD200211-200509

main81591-52010iNCP2#,NLP2#..LHD199908-200211

main81591-52040iNCP2#,NLP2#..LHD200211-200509

81215RSOCKET & WIRE, REAR FOG LAMP

main81585-52010iNCP2#,NLP2#199908-200211

9015950237

main90159-50237

5 parts on this diagram · 3 diagrams in section
