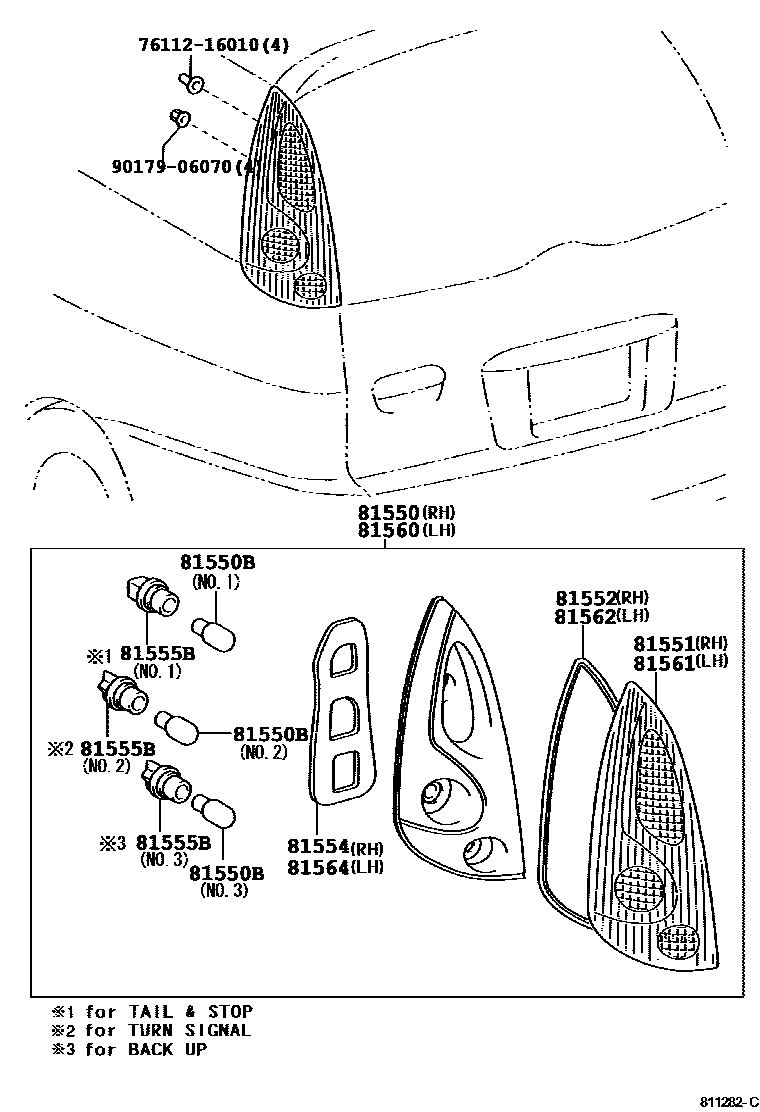

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52060iNCP2#,NLP2#199908-200211

main81550-52350iNCP2#,NLP2#200211-200308

main81550-52351iNCP2#,NLP2#200308-200509

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×4iNCP2#,NLP2#199908-200211

12V 21W,NO.2

main90981-13044×2iNCP2#,NLP2#200211-200509

12V 21/5W,NO.1

main90981-15011×2iNCP2#,NLP2#200211-200509

12V 21W,AMBER,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-52060iNCP2#,NLP2#199908-200211

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52050iNCP2#,NLP2#199908-200211

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52050iNCP2#,NLP2#199908-200211

main81554-52350iNCP2#,NLP2#200211-200307

main81554-52351iNCP2#,NLP2#200308-200509

81555BSOCKET PLUG, NO.1

main90075-60015×4iNCP2#,NLP2#199908-200211

NO.2

main90075-60017×2iNCP2#,NLP2#199908-200211

NO.1

main90075-60027×2iNCP2#,NLP2#200211-200509

NO.2

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52050iNCP2#,NLP2#199908-200211

main81560-52330iNCP2#,NLP2#200211-200308

main81560-52331iNCP2#,NLP2#200308-200509

81561LENS, REAR COMBINATION LAMP, LH

main81561-52050iNCP2#,NLP2#199908-200211

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52050iNCP2#,NLP2#199908-200211

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52040iNCP2#,NLP2#199908-200211

main81564-52330iNCP2#,NLP2#200211-200307

main81564-52331iNCP2#,NLP2#200308-200509

7611216010

main76112-16010

9017906070

main90179-06070

12 parts on this diagram · 2 diagrams in section
