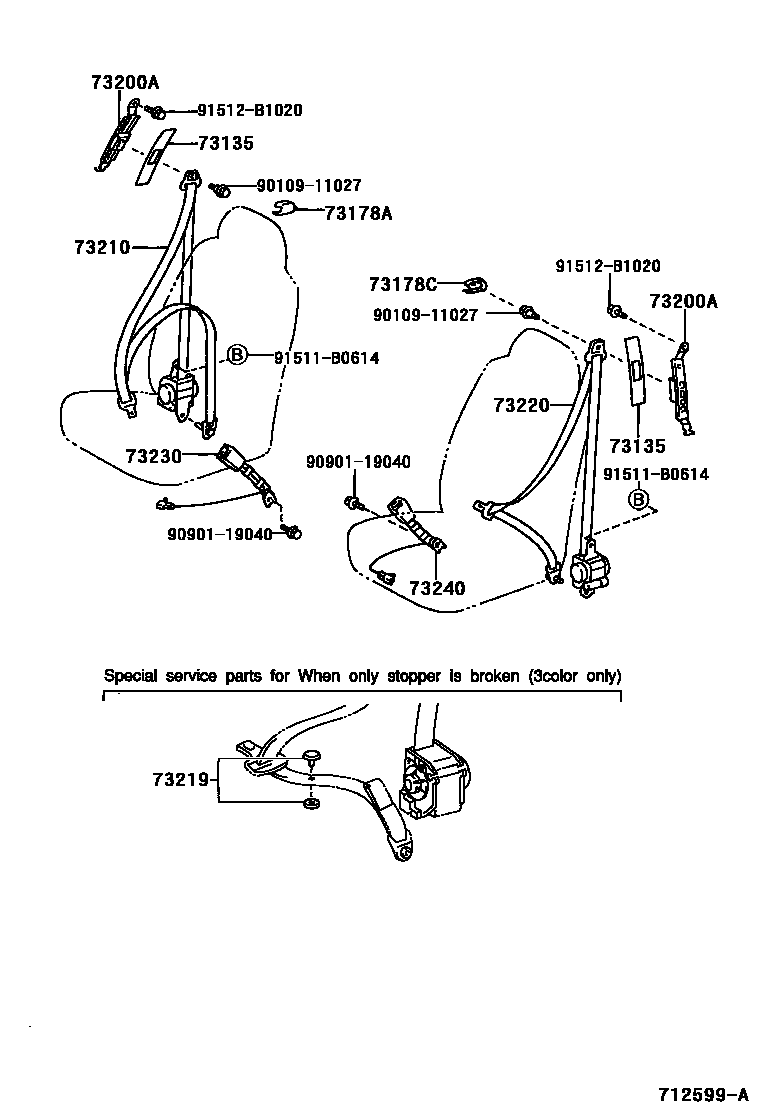

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-B9×2iNCP2#,NLP2#199908-200211

LT.GRAY,TRIM7#,9#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP2#,NLP2#200101-200211

LT.GRAY,TRIM7#,9#

main73178-52010-B0iNCP2#..4FC,5F199908-200101

LT.GRAY,TRIM7#,9#

73178CCAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP20..4HC200008-200101

LT.GRAY,TRIM7#,9#

main73178-52010-B0iNCP2#..4FC,5F199908-200101

LT.GRAY,TRIM7#,9#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52010-B0×2iNCP2#,NLP2#199908-200201

LT.GRAY,TRIM7#,9#

main73200-52040-B0×2iNCP2#,NLP2#200211-200509

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52130-B0iNCP20..LHD; NCP21,22..LHD200003-200101

SHADOW GRAY,TRIM7#,9#; W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM7#,9#

main73210-52140-B0iNCP22200003-200101

W/O(*80),SHADOW GRAY,TRIM7#,9#

main73210-52150-B0iNCP2#..LHD199908-200101

W(*80,DRIVER SIDE ONLY),SHADOW GRAY,TRIM7#,9#

main73210-52170-B0iNCP2#..RHD..(4FC,5F)200003-200101

W(*80),SHADOW GRAY,TRIM7#,9#

main73210-52240-B0iNCP2#,NLP2#..RHD..(4FC,5F); NCP20..4HC200101-200211

SHADOW GRAY,TRIM7#,9#; W(*80),SHADOW GRAY,TRIM7#,9#

main73210-52250-B0iNCP2#,NLP2#..LHD200101-200211

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM7#,9#

main73210-52260-B0iNCP2#,NLP2#..LHD200101-200211

W(*80,DRIVER SIDE ONLY),SHADOW GRAY,TRIM7#,9#

main73210-52270-B0iNCP22,NLP22200101-200211

W/O(*80),SHADOW GRAY,TRIM7#,9#

main73210-52420-C0iNCP2#,NLP2#..RHD200211-200509

BLACK,TRIM1#

main73210-52430-C0iNCP2#,NLP2#..LHD200211-200509

W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#

main73210-52440-C0iNCP2#,NLP2#..LHD200211-200509

W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP2#,NLP2#200211-200509

BLACK

main73219-33020iNCP2#,NLP2#200211-200509

GRAY

main73219-33030iNCP2#,NLP2#200211-200509

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52140-B0iNCP2#..RHD..(4FC,5F)200003-200101

SHADOW GRAY,TRIM7#,9#

main73220-52150-B0iNCP22200003-200101

W/O(*80),SHADOW GRAY,TRIM7#,9#

main73220-52190-B0iNCP20..LHD; NCP21,22..LHD200003-200101

SHADOW GRAY,TRIM7#,9#; W(*80),SHADOW GRAY,TRIM7#,9#

main73220-52260-B0iNCP2#,NLP2#..LHD200101-200211

W(*80),SHADOW GRAY,TRIM7#,9#

main73220-52270-B0iNCP2#,NLP2#..RHD..(4FC,5F); NCP20..4HC200101-200211

SHADOW GRAY,TRIM7#,9#; W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM7#,9#

main73220-52280-B0iNCP2#,NLP2#..RHD..(4FC,5F)200101-200211

W(*80,DRIVER SIDE ONLY),SHADOW GRAY,TRIM7#,9#

main73220-52290-B0iNCP22,NLP22200101-200211

W/O(*80),SHADOW GRAY,TRIM7#,9#

main73220-52470-C0iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(*80,DRIVER SIDE ONLY),BLACK,TRIM1#

main73220-52480-C0iNCP2#,NLP2#..RHD200211-200509

W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1#

main73220-52490-C0iNCP2#,NLP2#..LHD200211-200509

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52080-B1iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM7#,9#

main73230-52280-B0iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52080-B1iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM7#,9#

main73230-52280-B0iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

9010911027

main90109-11027

9090119040

main90901-19040

91511B0614

main91511-B0614

91512B1020

main91512-B1020

13 parts on this diagram · 2 diagrams in section
