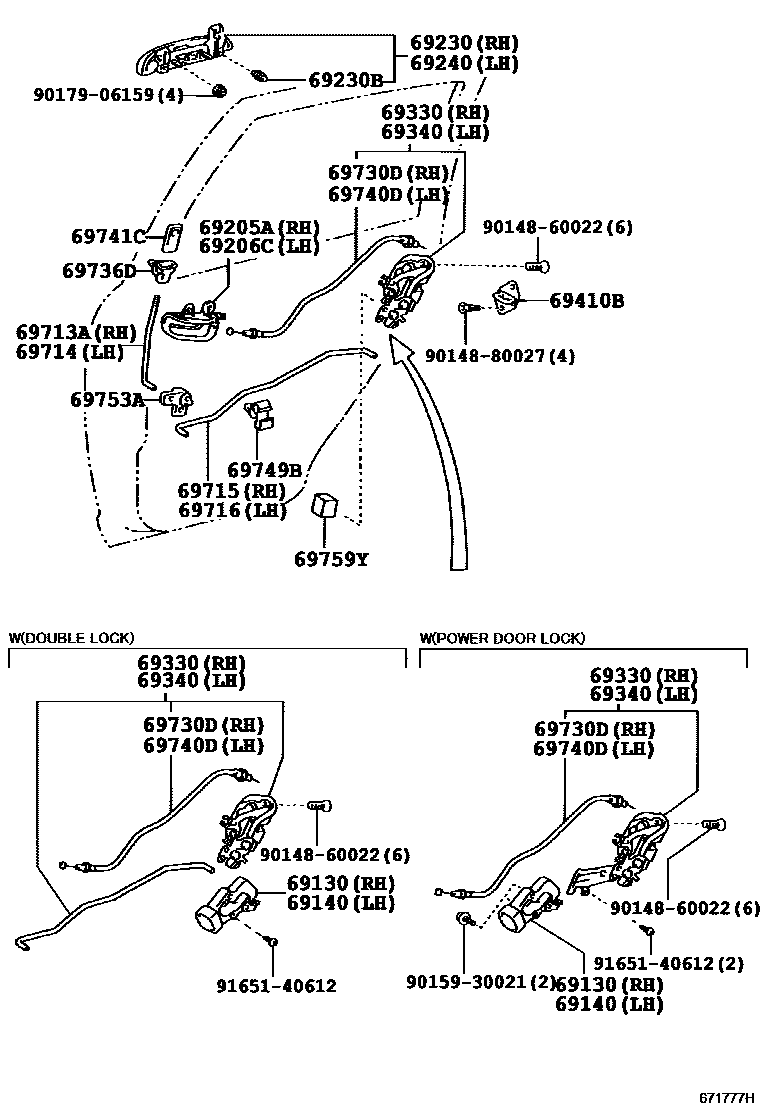

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-52040iNCP2#,NLP2#199908-200509

main69130-52050iNCP2#,NLP2#..RHD..(4FC,5F)199908-200509

W(DOUBLE-LOCK)

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-52040iNCP2#,NLP2#199908-200509

main69140-52050iNCP2#,NLP2#..RHD..(4FC,5F)199908-200509

W(DOUBLE-LOCK)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-52010-B0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69205-52010

main69205-52010-B3iNCP2#,NLP2#..LUNA,STD200211-200509

DK.GRAY,TRIM1#

sub69205-52010

main69205-52010-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69205-52010

main69205-52020-B6iNCP20,21,NLP20200211-200509

SILVER,TRIM1#

sub69205-52020

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-52010-B0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69206-52010

main69206-52010-B3iNCP2#,NLP2#..LUNA,STD200211-200509

DK.GRAY,TRIM1#

sub69206-52010

main69206-52010-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69206-52010

main69206-52020-B6iNCP20,21,NLP20200211-200509

SILVER,TRIM1#

sub69206-52020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-52030iNCP2#,NLP2#..LUNA,STD199908-200509

UNPAINTED

main69230-52040-A0iNCP2#199908-200108

SUPER WHITE 2,040

sub69230-52040

main69230-52040-A1iNCP2#,NLP2#200108-200509

WHITE,068

sub69230-52040

main69230-52040-B0iNCP2#,NLP2#199908-200211

SILVER ME,199

sub69230-52040

main69230-52040-B1iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

sub69230-52040

main69230-52040-B2iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

sub69230-52040

main69230-52040-C0iNCP2#,NLP2#199908-200509

BLACK MC.,209

sub69230-52040

main69230-52040-D0iNCP2#,NLP2#199908-200211

RED M.M.,3N8

sub69230-52040

main69230-52040-D1iNCP2#,NLP2#199908-200509

SUPER RED 5,3P0

sub69230-52040

main69230-52040-F1iNCP2#,NLP2#199908-200509

CHAMPAGNE ME.,583

sub69230-52040

main69230-52040-G0iNCP2#,NLP2#199908-200509

DK.GREEN MC.,6R4

sub69230-52040

main69230-52040-G1iNCP2#,NLP2#199908-200211

GREEN PM.,6S2

sub69230-52040

main69230-52040-H1iNCP2#,NLP2#200211-200509

AQUA M.M.,774

sub69230-52040

main69230-52040-J0iNCP2#,NLP2#199908-200509

BLUE MC.,8M6

sub69230-52040

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04028iNCP2#,NLP2#199908-200509

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-52030iNCP2#,NLP2#..LUNA,STD199908-200509

UNPAINTED

main69240-52040-A0iNCP2#199908-200108

SUPER WHITE 2,040

sub69240-52040

main69240-52040-A1iNCP2#,NLP2#200108-200509

WHITE,068

sub69240-52040

main69240-52040-B0iNCP2#,NLP2#199908-200211

SILVER ME,199

sub69240-52040

main69240-52040-B1iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

sub69240-52040

main69240-52040-B2iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

sub69240-52040

main69240-52040-C0iNCP2#,NLP2#199908-200509

BLACK MC.,209

sub69240-52040

main69240-52040-D0iNCP2#,NLP2#199908-200211

RED M.M.,3N8

sub69240-52040

main69240-52040-D1iNCP2#,NLP2#199908-200509

SUPER RED 5,3P0

sub69240-52040

main69240-52040-F1iNCP2#,NLP2#199908-200509

CHAMPAGNE ME.,583

sub69240-52040

main69240-52040-G0iNCP2#,NLP2#199908-200509

DK.GREEN MC.,6R4

sub69240-52040

main69240-52040-G1iNCP2#,NLP2#199908-200211

GREEN PM.,6S2

sub69240-52040

main69240-52040-H1iNCP2#,NLP2#200211-200509

AQUA M.M.,774

sub69240-52040

main69240-52040-J0iNCP2#,NLP2#199908-200509

BLUE MC.,8M6

sub69240-52040

69330LOCK ASSY, REAR DOOR, RH

main69330-52020iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

sub69330-52160

main69330-52060iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

sub69330-52170

main69330-52070iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

sub69330-52180

main69330-52160iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200509

main69330-52170iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69330-52180iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(DOUBLE-LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69340-52020iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

sub69340-52170

main69340-52060iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

sub69340-52180

main69340-52070iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

sub69340-52190

main69340-52170iNCP2#,NLP2#..LHD..(LUNA,STD)200211-200509

main69340-52180iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69340-52190iNCP2#,NLP2#..RHD..(4FC,5F)200211-200509

W(DOUBLE-LOCK)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-47010iNCP2#,NLP2#199908-200509

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-52010iNCP2#,NLP2#199908-200509

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69713-52010iNCP2#,NLP2#199908-200509

69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH

main69715-52020iNCP2#,NLP2#199908-200509

69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH

main69716-52020iNCP2#,NLP2#199908-200509

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69710-52030iNCP2#,NLP2#199908-200509

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12130iNCP2#,NLP2#199908-200509

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69710-52030iNCP2#,NLP2#199908-200509

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-B8iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

sub69741-87003

main69741-87003-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69741-87003

main69741-87003-P0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-52010iNCP2#,NLP2#199908-200509

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-10010iNCP2#,NLP2#199908-200509

69759YSILENCER, REAR DOOR LOCK LINK

main69759-52010iNCP2#,NLP2#199908-200509

9014860022

main90148-60022

9014880027

main90148-80027

9015930021

main90159-30021

9017906159

main90179-06159

9165140612

main91651-40612

26 parts on this diagram · 1 diagram in section
