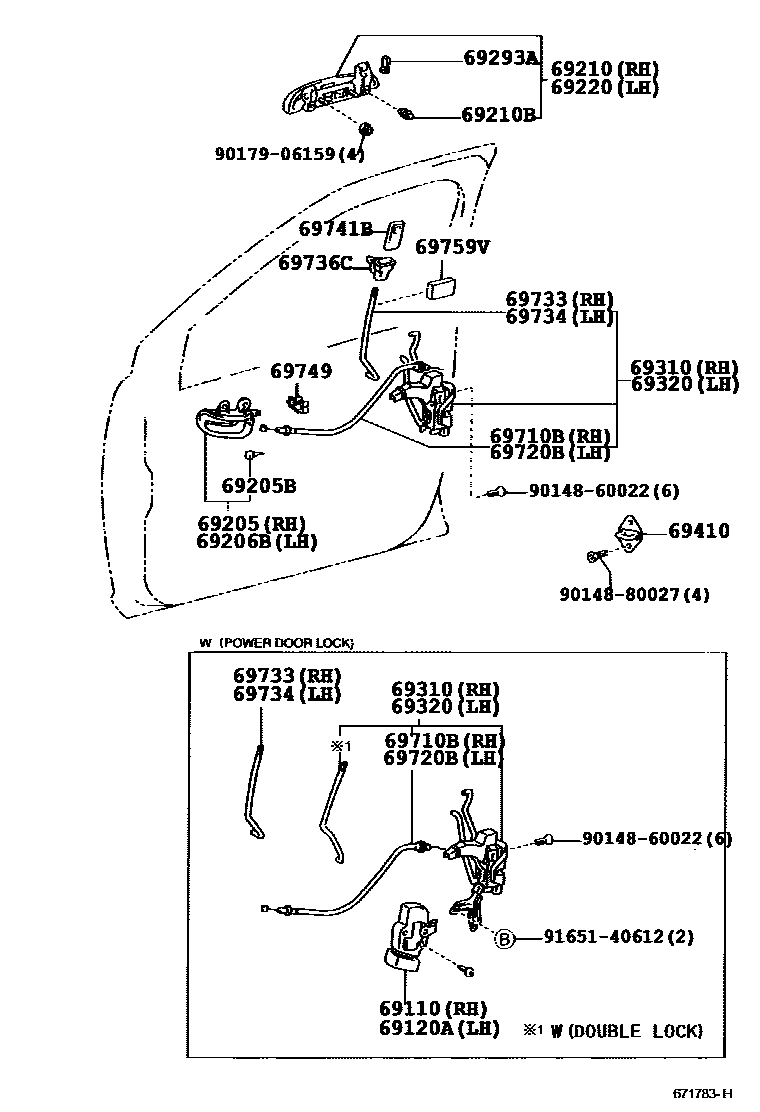

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-52010iNCP2#,NLP2#..LHD199908-200509

main69110-52020iNCP2#,NLP2#..RHD199908-200509

W(KEY LESS ENTRY)

main69110-52070iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-52010iNCP20..4HC;NCP21,22,NLP2#..RHD200003-200509

W(KEY LESS ENTRY)

main69120-52010iNCP20199908-200211

main69120-52030iNCP20..LHD199908-200509

W(KEY LESS ENTRY)

main69120-52030iNCP21,22,NLP2#..LHD200003-200211

main69120-52050iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52010-B0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69205-52010

main69205-52010-B3iNCP2#,NLP2#..LUNA,STD200211-200509

DK.GRAY,TRIM1#

sub69205-52010

main69205-52010-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69205-52010

main69205-52020-B6iNCP20,21,NLP20200211-200509

SILVER,TRIM1#

sub69205-52020

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNCP2#,NLP2#200211-200509

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52010-B0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69206-52010

main69206-52010-B3iNCP2#,NLP2#..LUNA,STD200211-200509

DK.GRAY,TRIM1#

sub69206-52010

main69206-52010-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69206-52010

main69206-52020-B6iNCP20,21,NLP20200211-200509

SILVER,TRIM1#

sub69206-52020

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52030iNCP2#,NLP2#..LUNA,STD199908-200509

UNPAINTED

main69210-52040-A0iNCP2#199908-200108

SUPER WHITE 2,040

sub69210-52040

main69210-52040-A3iNCP2#,NLP2#200108-200509

WHITE,068

sub69210-52040

main69210-52040-B0iNCP2#,NLP2#199908-200211

SILVER ME,199

sub69210-52040

main69210-52040-B2iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

sub69210-52040

main69210-52040-B3iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

sub69210-52040

main69210-52040-C0iNCP2#,NLP2#199908-200509

BLACK MC.,209

sub69210-52040

main69210-52040-D0iNCP2#,NLP2#199908-200211

RED M.M.,3N8

sub69210-52040

main69210-52040-D1iNCP2#,NLP2#199908-200509

SUPER RED 5,3P0

sub69210-52040

main69210-52040-F1iNCP2#,NLP2#199908-200509

CHAMPAGNE ME.,583

sub69210-52040

main69210-52040-G0iNCP2#,NLP2#199908-200509

DK.GREEN MC.,6R4

sub69210-52040

main69210-52040-G1iNCP2#,NLP2#199908-200211

GREEN PM.,6S2

sub69210-52040

main69210-52040-H1iNCP2#,NLP2#200211-200509

AQUA M.M.,774

sub69210-52040

main69210-52040-J0iNCP2#,NLP2#199908-200509

BLUE MC.,8M6

sub69210-52040

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04028iNCP2#,NLP2#199908-200509

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-52030iNCP2#,NLP2#..LUNA,STD199908-200509

UNPAINTED

main69220-52040-A0iNCP2#199908-200108

SUPER WHITE 2,040

sub69220-52040

main69220-52040-A3iNCP2#,NLP2#200108-200509

WHITE,068

sub69220-52040

main69220-52040-B0iNCP2#,NLP2#199908-200211

SILVER ME,199

sub69220-52040

main69220-52040-B2iNCP2#,NLP2#200211-200509

GRAY ME.,1D2

sub69220-52040

main69220-52040-B3iNCP2#,NLP2#200211-200509

SILVER M.M.,1E7

sub69220-52040

main69220-52040-C0iNCP2#,NLP2#199908-200509

BLACK MC.,209

sub69220-52040

main69220-52040-D0iNCP2#,NLP2#199908-200211

RED M.M.,3N8

sub69220-52040

main69220-52040-D1iNCP2#,NLP2#199908-200509

SUPER RED 5,3P0

sub69220-52040

main69220-52040-F1iNCP2#,NLP2#199908-200509

CHAMPAGNE ME.,583

sub69220-52040

main69220-52040-G0iNCP2#,NLP2#199908-200509

DK.GREEN MC.,6R4

sub69220-52040

main69220-52040-G1iNCP2#,NLP2#199908-200211

GREEN PM.,6S2

sub69220-52040

main69220-52040-H1iNCP2#,NLP2#200211-200509

AQUA M.M.,774

sub69220-52040

main69220-52040-J0iNCP2#,NLP2#199908-200509

BLUE MC.,8M6

sub69220-52040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10010iNCP2#,NLP2#199908-200509

LH

main69293-10020iNCP2#,NLP2#199908-200509

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-52020iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

sub69310-52260

main69310-52150iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

sub69310-52270

main69310-52160iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

sub69310-52280

main69310-52260iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200509

main69310-52270iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69310-52280iNCP2#,NLP2#..RHD..(4FC,5F)200211

W(DOUBLE-LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-52020iNCP2#,NLP2#..(4FC,5F)..(LUNA,STD)199908-200211

sub69320-52240

main69320-52180iNCP2#,NLP2#199908-200211

W(POWER DOOR LOCK)

sub69320-52230

main69320-52190iNCP2#,NLP2#..RHD..(4FC,5F)199908-200211

W(DOUBLE-LOCK)

sub69320-52260

main69320-52230iNCP2#,NLP2#200211-200509

W(POWER DOOR LOCK)

main69320-52240iNCP2#,NLP2#..RHD..(4FC,5F)..(LUNA,STD)200211-200509

main69320-52260iNCP2#,NLP2#..RHD..(4FC,5F)200211

W(DOUBLE-LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iNCP2#,NLP2#199908-200509

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52030iNCP2#,NLP2#199908-200509

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52030iNCP2#,NLP2#199908-200509

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-52030iNCP2#,NLP2#199908-200509

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-52030iNCP2#,NLP2#199908-200509

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12130iNCP2#,NLP2#199908-200509

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-87003-B8iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

sub69741-87003

main69741-87003-H0iNCP2#,NLP2#199908-200211

FRENCH TURQUOISE,TRIM7#

sub69741-87003

main69741-87003-P0iNCP2#,NLP2#199908-200211

SHADOW GRAY,TRIM9#

sub69741-87003

69749CLAMP, FRONT DOOR LOCK LINK

main69749-52010iNCP2#,NLP2#199908-200509

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-12060iNCP2#,NLP2#199908-200308

main69759-12110iNCP2#,NLP2#200308-200509

9014860022

main90148-60022

9014880027

main90148-80027

9017906159

main90179-06159

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
