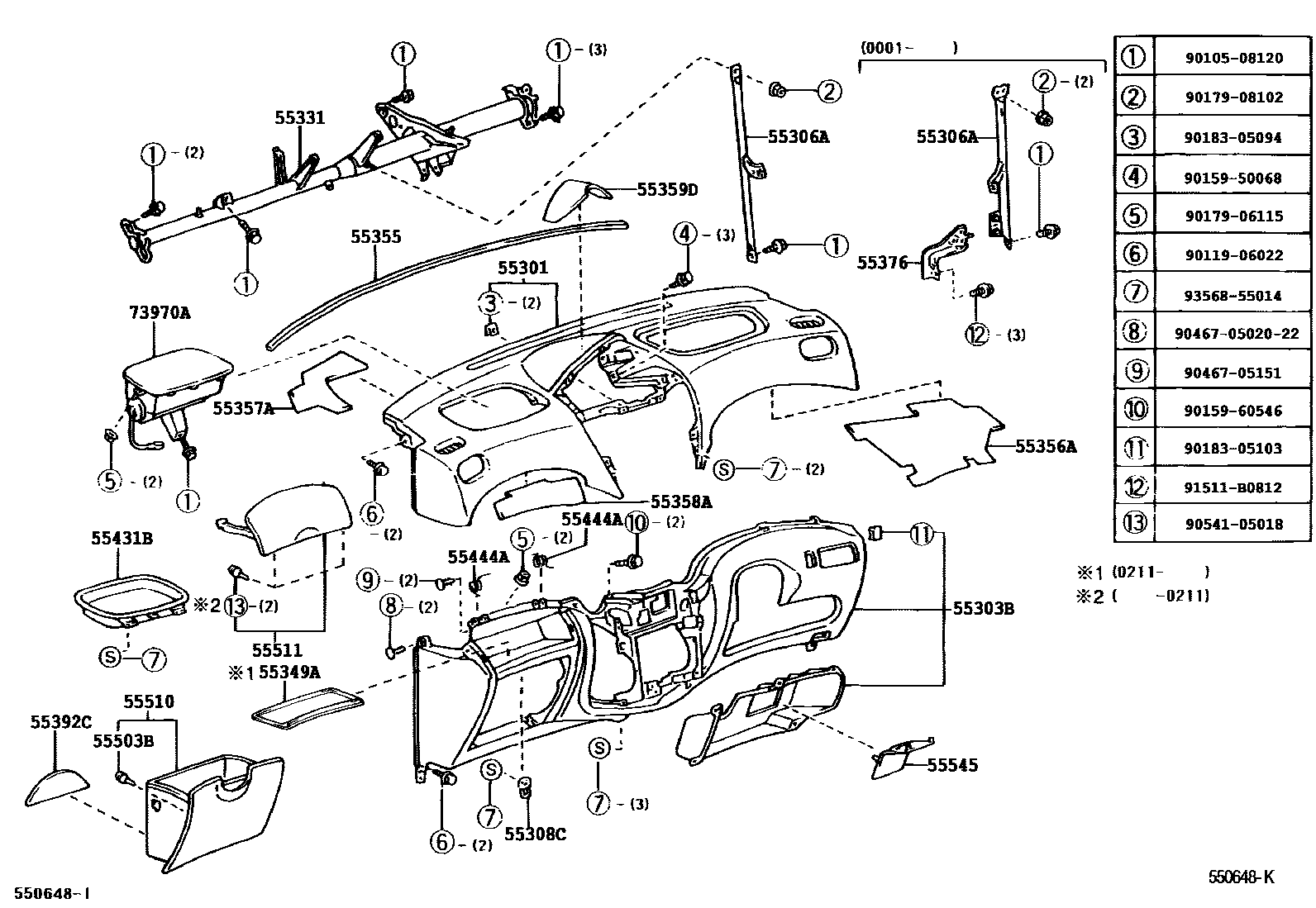

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52030-B0iNCP2#,NLP2#..RHD199908-200211

SHADOW GRAY,TRIM9#

main55301-52030-H0iNCP2#,NLP2#..RHD199908-200211

FRENCH TURQUOISE,TRIM7#

main55301-52040-B0iNCP2#,NLP2#..LHD199908-200211

SHADOW GRAY,TRIM9#

main55301-52040-H0iNCP2#,NLP2#..LHD199908-200211

FRENCH TURQUOISE,TRIM7#

main55301-52150-B0iNCP2#,NLP2#..RHD200211-200509

DK.GRAY,TRIM1#

main55301-52160-B0iNCP2#,NLP2#..LHD200211-200509

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52901-B0iNCP2#,NLP2#..RHD199908-200211

SHADOW GRAY,TRIM9#

main55303-52901-B5iNCP2#,NLP2#..RHD200211

DK. GRAY,TRIM1#

main55303-52901-H0iNCP2#,NLP2#..RHD199908-200211

FRENCH TURQUOISE,TRIM7#

main55303-52902-B0iNCP2#,NLP2#..LHD199908-200211

SHADOW GRAY,TRIM9#

main55303-52902-B5iNCP2#,NLP2#..LHD200211

DK.GRAY,TRIM1#

main55303-52902-H0iNCP2#,NLP2#..LHD199908-200211

FRENCH TURQUOISE,TRIM7#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52030iNCP20..RHD199908-200001

main55306-52040iNCP2#,NLP2#..LHD199908-200211

main55306-52070iNCP2#,NLP2#..RHD200001-200211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52010iNCP2#,NLP2#199908-200204

main55308-52080iNCP2#,NLP2#200204-200211

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52090iNCP2#,NLP2#..LHD199908-200211

main55330-52100iNCP2#,NLP2#..LHD199908-200211

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-52150iNCP20..RHD199908-200001

main55330-52151iNCP2#..RHD200001-200104

main55330-52170iNCP2#,NLP2#..RHD200104-200211

main55330-52260iNCP2#,NLP2#..RHD200211-200403

main55330-52261iNCP2#,NLP2#..RHD200404-200509

main55330-52270iNCP2#,NLP2#..LHD200211-200509

55349ACUSHION, INSTRUMENT PANEL

main55349-52010iNCP2#,NLP2#..RHD200211-200509

main55349-52020iNCP2#,NLP2#..LHD200211-200509

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNCP2#,NLP2#199908-200211

55356APLATE, INSTRUMENT PANEL, LOWER

main55356-52030iNCP2#,NLP2#199908-200211

55357APROTECTOR, EDGE, NO.1

main55357-52020iNCP2#,NLP2#199908-200211

55358APROTECTOR, EDGE, NO.2

main55358-52010iNCP2#,NLP2#199908-200211

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52030iNLP2#200110-200211

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52020iNCP2#,NLP2#..RHD200001-200211

55392CCUSHION, INSTRUMENT PANEL, LOWER NO.2

main55392-52010iNLP2#200110-200211

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-52010-B0iNCP2#,NLP2#..4FC,5F199908-200211

SHADOW GRAY,TRIM9#

main55431-52010-H0iNCP2#,NLP2#..4FC,5F199908-200211

FRENCH TURQUOISE,TRIM7#

main55431-52070-B0iNCP2#,NLP2#..4FC,5F200211-200509

DK.GRAY,TRIM1#

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52020×2iNCP2#,NLP2#..LHD200211-200509

main55444-52040×2iNCP2#,NLP2#..RHD199908-200211

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-05080×2iNCP2#,NLP2#200211-200509

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-52020-B0iNCP2#,NLP2#199908-200211

MD.GRAY,TRIM9#

main55550-52020-B1iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

main55550-52020-G0iNCP2#,NLP2#199908-200211

MIST GREEN,TRIM7#

55511DOOR, GLOVE COMPARTMENT

main55501-52010-B0iNCP2#,NLP2#..LHD199908-200211

MD.GRAY,TRIM9#

main55501-52010-G0iNCP2#,NLP2#..LHD199908-200211

MIST GREEN,TRIM7#

main55501-52020-B0iNCP2#,NLP2#..RHD199908-200211

MD.GRAY,TRIM9#

main55501-52020-G0iNCP2#,NLP2#..RHD199908-200211

MIST GREEN,TRIM7#

main55501-52050-B2iNCP2#,NLP2#..RHD200211-200509

DK.GRAY,TRIM1#

main55501-52060-B0iNCP2#,NLP2#..LHD200211-200509

DK.GRAY,TRIM1#

55545COVER, FUSE BOX OPENING

main55545-52010-B0iNCP2#,NLP2#199908-200211

MD.GRAY,TRIM9#

main55545-52010-B2iNCP2#,NLP2#200211-200509

DK.GRAY,TRIM1#

main55545-52010-G0iNCP2#,NLP2#199908-200211

MIST GREEN,TRIM7#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52030-B0iNCP2#,NLP2#..RHD199908-200211

SHADOW GRAY,TRIM9#

main73970-52030-H0iNCP2#,NLP2#..RHD199908-200211

FRENCH TURQUOISE,TRIM7#

main73970-52040-B0iNCP2#,NLP2#..LHD199908-200211

SHADOW GRAY,TRIM9#

main73970-52040-H0iNCP2#,NLP2#..LHD199908-200211

FRENCH TURQUOISE,TRIM7#

main73970-52150-B0iNCP2#,NLP2#..RHD200211-200509

DK.GRAY,TRIM1#

main73970-52160-B0iNCP2#,NLP2#..LHD200211-200509

DK.GRAY,TRIM1#

9010508120

main90105-08120

9011906022

main90119-06022

9015950068

main90159-50068

9015960546

main90159-60546

9017906115

main90179-06115

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046705151

main90467-05151

9054105018

main90541-05018

91511B0812

main91511-B0812

9356855014

main93568-55014

33 parts on this diagram · 14 diagrams in section
